| Categories | Corrugated Board Production Line |
|---|---|
| Type: | Other |
| Condition: | New |
| Packaging Type: | Cartons, Case |
| Automatic Grade: | Automatic |
| Driven Type: | Electric |
| Voltage: | 220V/380V |
| Power: | 4KW |
| Place of Origin: | Hebei, China (Mainland) |
| Brand Name: | Zhenxing Packaging |
| Model Number: | Other |
| Weight: | 800kg |
| Dimension(L*W*H): | 980*680*1650mm |
| Certification: | CE |

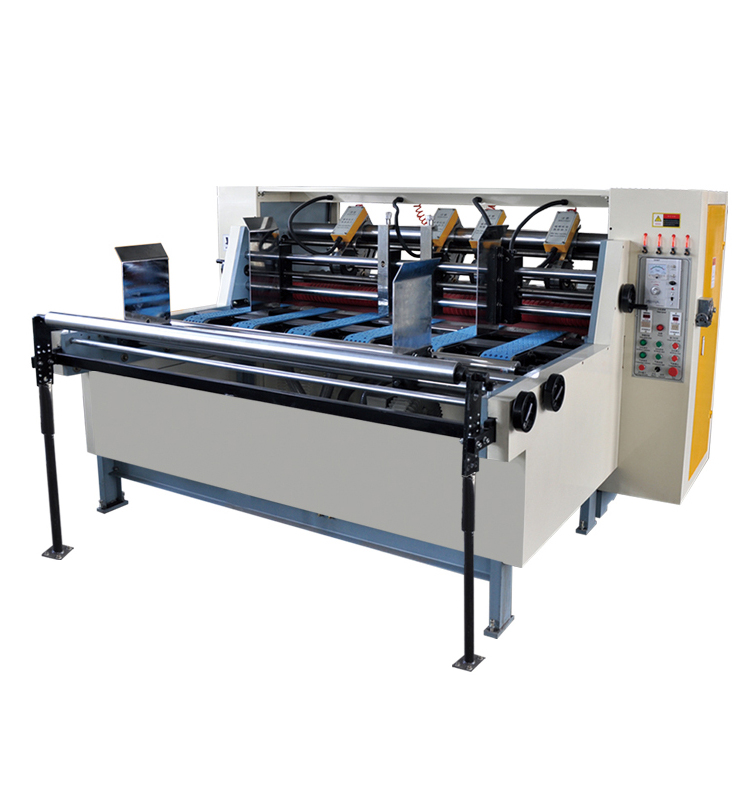

| Product name: | Automatic thin knife cutting machine high degree of automation |
| Keyword: | Thin knife cutter |
| Supply Ability: | 100 Sets Per Year |
| Packaging Details: | 1.Outside package:Sandard export wooden cases 2.Inner package:Stretch film |
| Port: | XINGANG CHINA |
| MOQ: | Negotiation |
| Price: | Negotiation |
| Delivery Time: | 80 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Feeding department:
1. The board size adjustment adopts the screw adjustment mechanism, one operation, simple and quick.
2. It is convenient to adjust the adjustable code paper table to better adapt to all kinds of paperboard, and it is stable and accurate.
3. The paper belt adopts high quality rubber seamless belt, high friction force, long life, low noise, easy maintenance, high economic efficiency.
4. Double tension control, convenient and reliable.
5. The transmission shaft adopts the pattern roller to increase the friction with the paper belt to ensure smooth and high-speed transportation.
Cutting department:
1. The two - rubber shaft close range paper (after the front and back of the rubber shaft is 325mm) before and after cutting, the rear pressure line is formed, and the adjustment is convenient. It can realize the single dividing plate of the non-pressure line.
2. Adopt the electric adjustment tool distance, the pneumatic automatic lock. Improve the automation degree of the machine, easy to use, adjust accurately, save time and labor, reduce labor intensity.
3. Using the high quality tungsten steel alloy blade, the blade is sharp. Long service life, the cut out of the cardboard cut neat, no fracturing, no burr.
Indentation department:
1. Adopt the five-point pressure line and adjust the indentation gap synchronously. The line type is beautiful, the line is not broken and easy to bend.
2. The grinder adopts two kinds of pneumatic grinding tools:automatic and manual, which can work at the edge and improve work efficiency.
With a large quantities of models and complete specifications our products can meet the demand of different clients.As per the spirit of"To keep improving.To pursue perfection constantly"our company actively carries out the overall quality managing work.Because of the beautiful and tasteful appearance, compact and careful technology,reasonable price and perfect after-sale service our products have won the trust and praise from the clients all over the country for many years.
Regarding'vigorously developing the carton industry in China"as our task,we'l sincerely cooperate with the mass clients and meet their demand with better quality products and more perfect after-sale service.
