| Categories | paper bag making machine |
|---|---|
| Brand Name: | Chancer |
| Model Number: | CY-600 |
| Certification: | CE |
| Place of Origin: | China |
| MOQ: | 1 Set |
| Price: | Negotiation |
| Payment Terms: | T/T |
| Supply Ability: | 100 sets per year |
| Delivery Time: | 30 working days after get 30% deposit |
| Packaging Details: | Seaworthy package |
| Voltage: | 380V/50HZ/3phases |
| Condition: | New |
| Weight: | 2500kg |
| Warranty: | 1 Year |
| Machine type: | Bag Forming Machine |
| Computerized: | Yes |
| After-sales service provided: | Engineers available to service machinery overseas |
| Dimension(l*w*h): | 5000(L)x2100(W)x2000(H)mm |
| Speed: | 60-400pcs/min |
| Bag width: | 80-290mm |
| Material: | Paper |
| Company Info. |
| RUIAN CHANCER MACHINERY FACTORY |
| View Contact Details |
| Product List |
Fully automatic food paper bag making machine for sandwich, paper bag sealing machine
Video link: https://youtu.be/A2DvT4y3jNs
Introduction: This machine forming the paper bag in one process from roll paper, edge folding, tube forming, cutting, gluing, bottom folding, bottom gluing and finishing bag Easy operation, low power consumption, high efficiency.
It is an ideal machine for producing food bags like bread bags, KFC bags and McDonald’s bags.
And this machine has without printing function, if you need printing inline, we can introduce another machine to you.
Advantages:
1)Suited for 40-80gsm paper.
2)Controls bag length through the human-machine interface.
3)PLC system for calculating parameters.
4)Equipped with an accurate photocell system.
5) Color mark error automatic alarming and stopping system
6)Automatic oil lubrication system and Automatic counting system

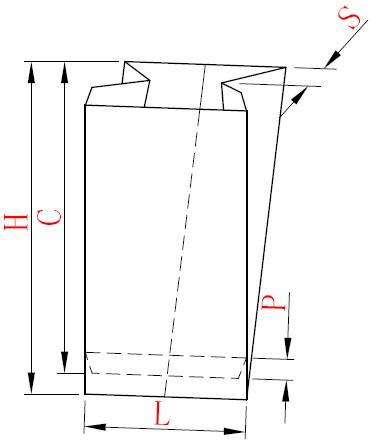

Main specification:
| Bag length(H) | 200-650mm |
| Bag width(L) | 80-290mm |
| Gusset depth(S) | 0-50mm |
| Standard flap(P) | 12-17mm |
| Max Roll Diameter | 1000mm |
| speed | 60-400pcs/min |
| Paper thickness | 40-80g/m2 |
| Power Voltage | 380v/220v,50/60hz |
| Power | 8kw |
| Total weight | 4200kg |
| dimensions | 5000(L)x2100(W)x2000(H)mm |
Contacts:

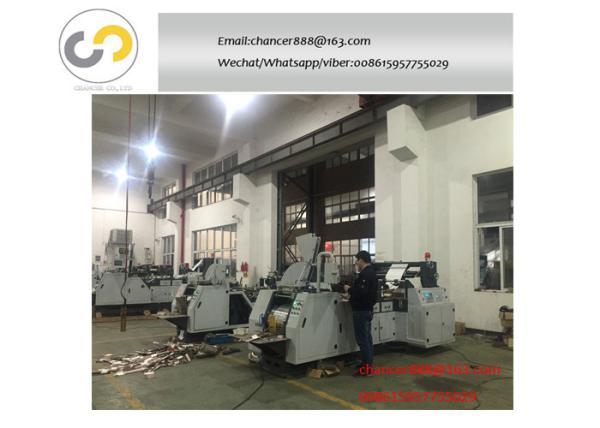

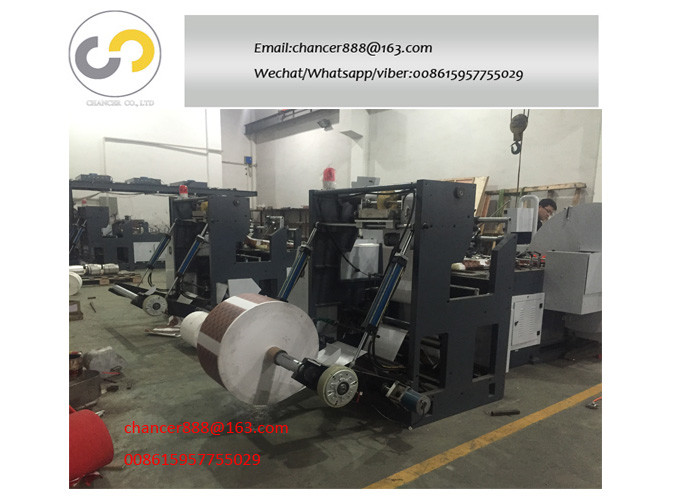

Machine picture:

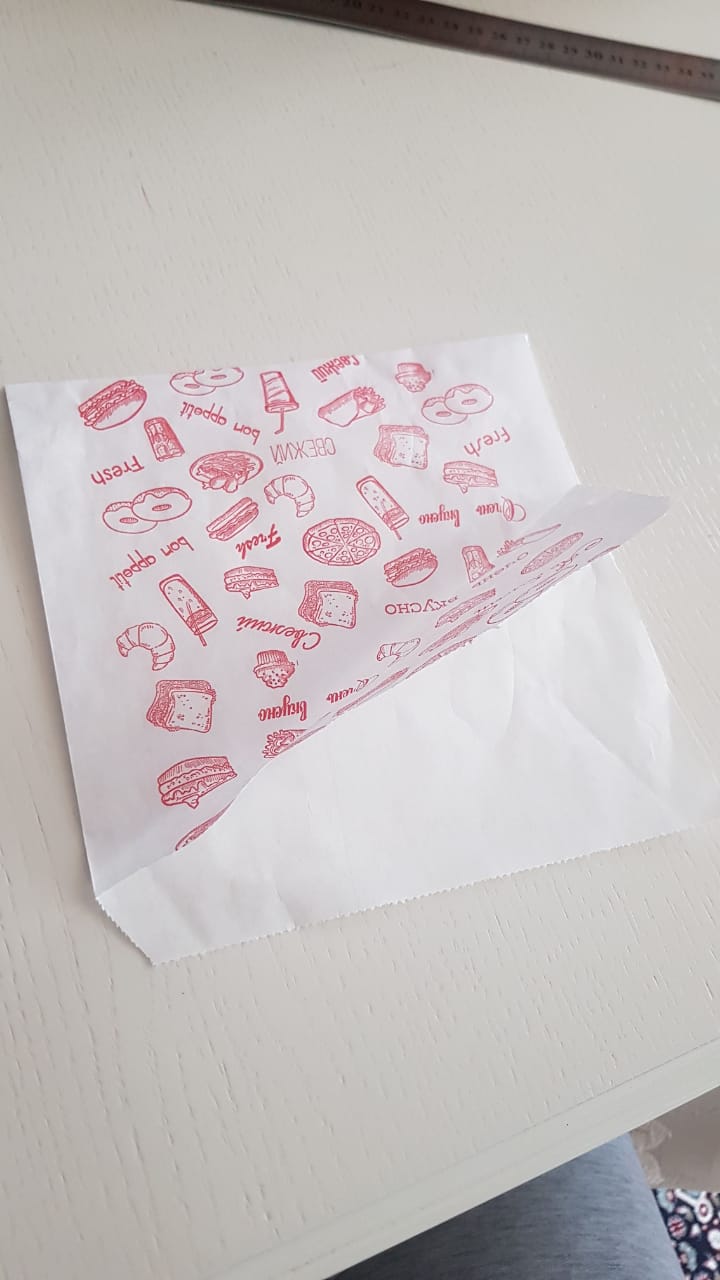

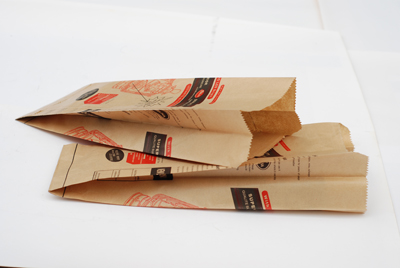

Bag sample:
|
