Black Split Core Current Transformer Easy Installation For Control / Load Center

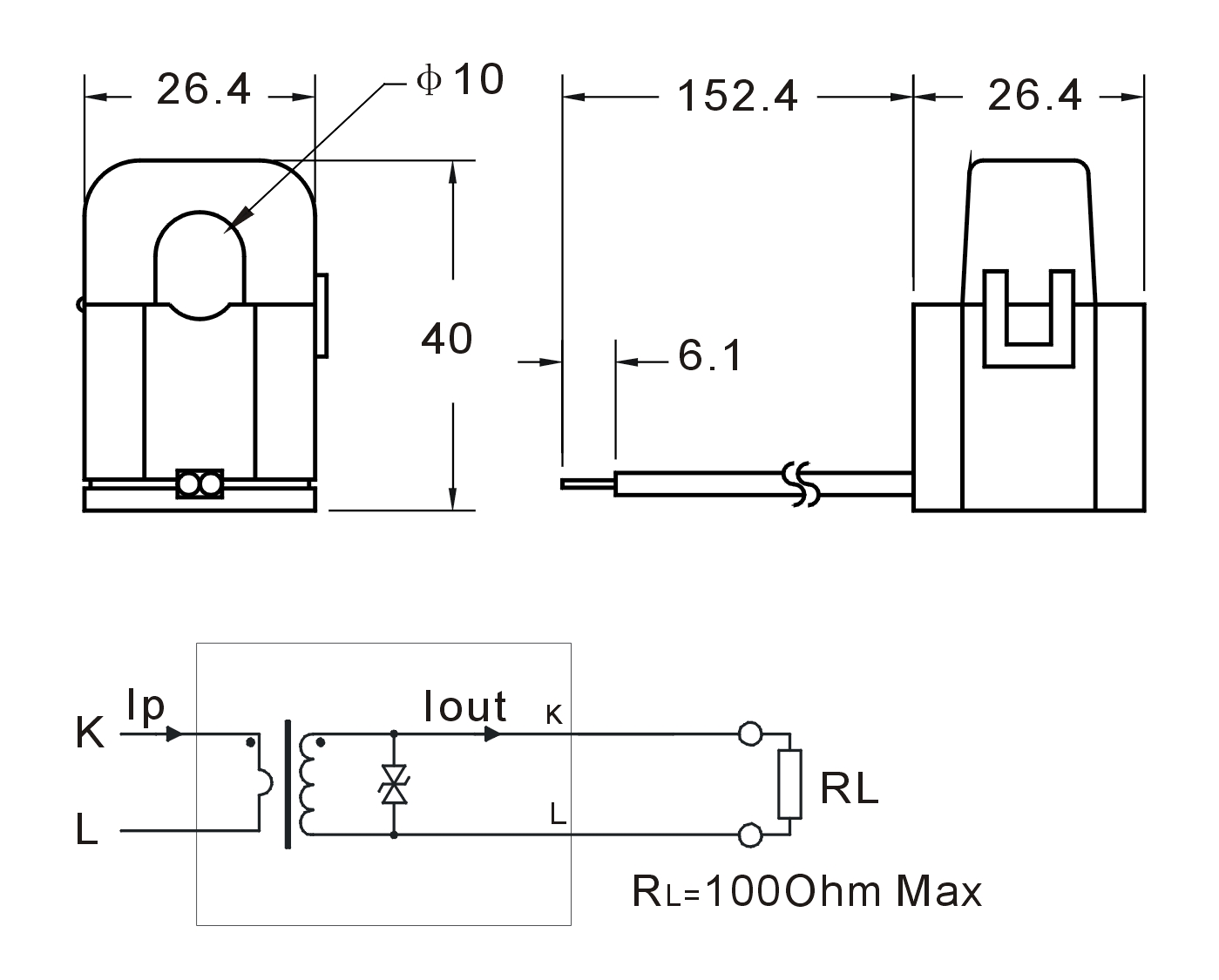

3000: 1 10mm hole 50A/16.66mA 0.5class Split Core Current Transformer

ACST3110F can be mounted to existing panels, such as control centers or load centers, to measure or monitor wattage. These CTs can be mounted without removing existing cables for easier installation

Specifications:

• ​Winding (Turn) : 3000 Ts
• Max. Current : 120A
• Rated current: 50A
• Output Current: 16.66mA
• Dielectric Strength :3500 Volt 50Hz for 1 minute between body & wires
• Operating temperature :-25~+70℃
• Storage temperature :-30~+90℃
• General tolerance :+/-1mm
• Primary aperture :10mm
• Fastening : Cable tie
• Output cable length :1.0m TYP
