Brand Name: | Bilon |
Certification: | ISO,CCC,BV |
Place of Origin: | China |
MOQ: | 1 set |
Price: | Negotiation |
Payment Terms: | L/C, T/T |
Supply Ability: | 1000 sets |
Delivery Time: | 30 days |
Packaging Details: | naked,waxing. concrete mixer truck is shipped by bulk, |
Reclaiming capacity: | 4000 L |
Speed of Mixing Drum: | 13r/min |
Working Cycle Period: | 10-15min |
Productivity: | 16 M3/h |
Weight: | 9200 kg |
Outline Dimension: | 7500 x 2850x3600mm |
Company Info. |
BILON HEAVY INDUSTRY (GUANGZHOU) CO.,LTD |
Verified Supplier |
View Contact Details |
Product List |

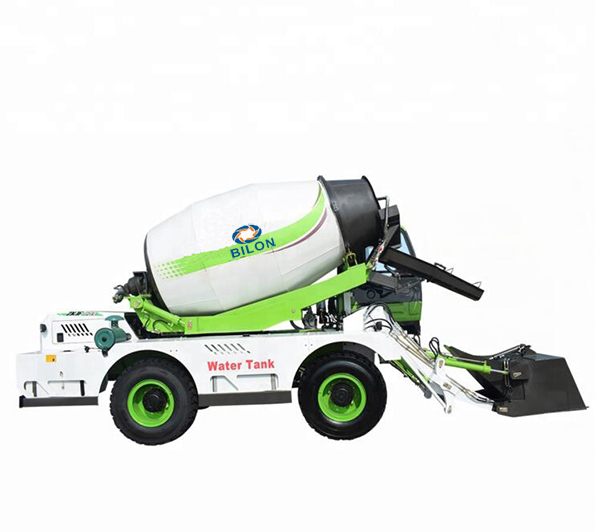

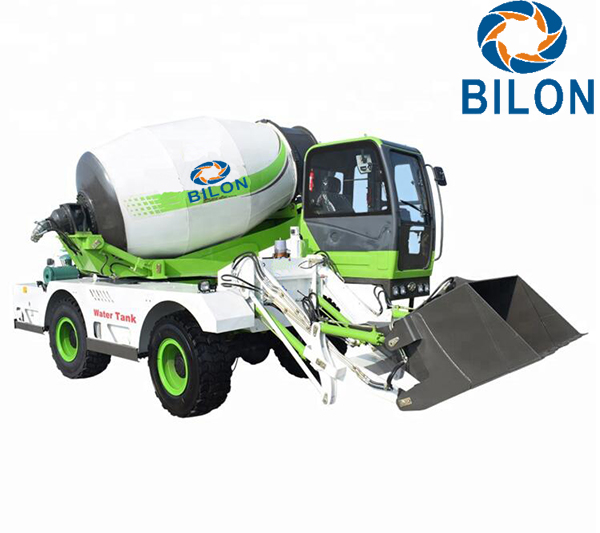

High Efficient 4 CBM Mini Concrete Mixer Prices
2) The Integrated Structure Chassis and Four Wheel Steering
3) The mixing unit could slew hydraulically up to 290°
4) Centralized Lubricating System for Easy Maintenance
5) Closed Circuit Hydraulic Rotation System
6) Spacious Driver's Cab with Shovel Loader Weigher, A/C and Fire Extinguisher inside
Mixing Drum | Mixing Volume | 4000 L |
Geometric Volume | 6100 L | |
Concrete Output | 4000 L/ batch , 4 Batches/ hr | |
Inclination Angle | 16° | |
Max. Slewing Angle | 290° | |
Rotating Speed | 0~21 rpm | |
Body /Bottom Thickness | 5 mm/8 mm(Q345B) | |
Overall Size | Φ1920x 3206mm | |
Chute | Max. Slewing Angle | 180° |
Tilting Method | Mechanically | |
Length | 650mm +1500 mm (2 Sections) | |
Engine | Brand | YUCHAI ( Cummins Optional) |
Model | YCD4J22G | |
Rated Power/Speed | 116 HP /2400 rpm | |
Max.Torque/ Speed | 390 N.m/2800 rpm | |
Bore x Stroke | 105 mm x125 mm | |
Displacement | 4.33 L | |
Type | 4-Cylinder,In-line, Turbo Charged, Water-cooled | |
Emission Standard | Euro II | |
Hydraulic System | Reducer Model | HJ80-43 |
Hydraulic Pump Displacement | 80/40 mL/r | |
Hydraulic Motor Displacement | 63 cm3/rev | |
Water Supply System | Water Tank Volume | 2 x 330 L |
Water Supply Mode | Self-contained, Hydraulic Driven water pump | |
Chassis | Structure | Integrated Structure |
Drive Type | 4 X 4X4 | |
Transmission | 2 Forward +2 Reverse Shift (Low+ High Speed) | |
Torque converter | YJ280 ( Split Type) | |
Gearbox Mode | Counter Shaft, Power-shift | |
Wheelbase | 2400 mm | |
Tread | 1820 mm | |
Loading Shovel Capacity | 600 L | |
Brake Type | Air Brake | |
Tyre Size | 16/70-20 | |
Vehicle | Drum and Shovel Control | By Joystick |
Driver's Cab | Air-conditioner Inside | |
Max. Drive Speed | 30 km/h | |
Grade Ability | 30 % | |
Mini Turning Radius | 4000 mm | |
Max. Payload | 9,500 kg | |
Operating Weight | 9,200 kg | |

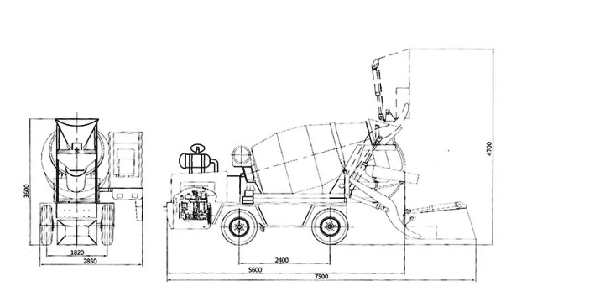

Overall Size | 7500 x 2850x 3600 mm |
![]() |
