Multi - Functional Soil Test Drilling Machine for Core Sampling Collection XY-1A

Xy-1A 150 Soil Test Drilling Rig Machine

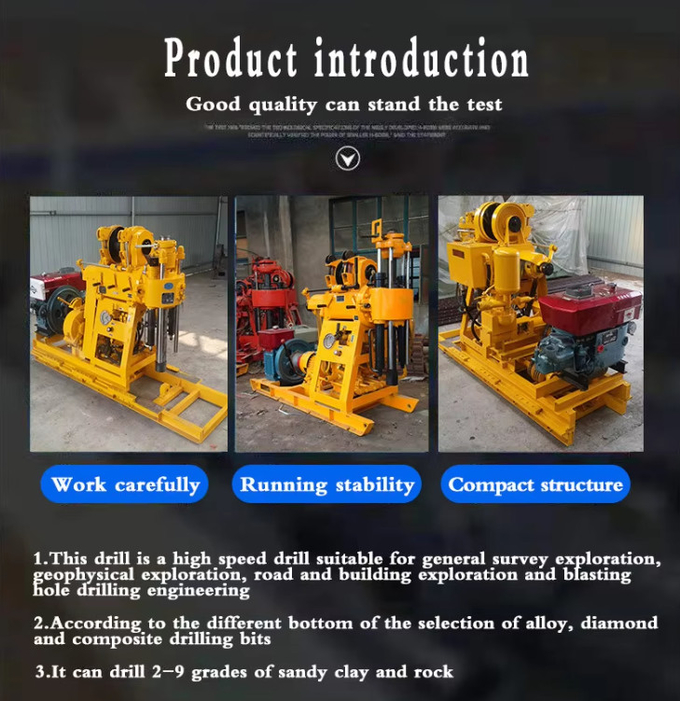

XY-1A Soil Testing Drilling Rig Machine​ Introduction

This drilling rig is 150 meters drilling depth ,150mm hole diameter ,which is suitable for engineering geological exploration of industrial and civil buildings, railways, hydropower, transportation, bridges, dam foundations and other buildings.Soil Test Drilling Machine is designed for efficient drilling and sampling of various soil types. As a reliable and durable engineering drill rig, it is perfect for many engineering and geological drilling projects. It is designed for easy operation and can handle challenging drilling tasks. This machine is equipped with advanced technology and superior components to offer users the best performance.

Product Tech Data:

.XY-1A Soil Testing Drilling Rig Machine Advantages

1) The hydraulic feeding mechanism is adopted to reduce the physical labor intensity of workers

(2) The ball clamp clamping mechanism is used to replace the chuck, which can realize the rod reversing without stopping

(3) You can move the machine to give way to the orifice or open the gyrator to give way to the orifice.

(4) Light weight, strong decomposability, easy to move, suitable for construction in plain and mountainous areas.

(5) The drilling rig is applicable to geological survey exploration, geophysical exploration, road and building foundation exploration, blasting hole drilling and other drilling projects.

(6) Alloy bit, steel particle bit and diamond bit can be selected for drilling according to different formations.

(7) It can drill into grade 2 ~ 9 sandy clay and weathered bedrock.

(8) The rated drilling depth is 150m, and the depth shall not exceed 150m. The rated opening diameter is 110mm, the allowable opening diameter is 150mm

Soil Sampling Procedure

Divide the field into different homogeneous units based on the visual observation and farmer’s experience.

Remove the surface litter at the sampling spot.

Drive the auger to a plough depth of 15 cm and draw the soil sample.

Collect at least 10 to 15 samples from each sampling unit and place in a bucket or tray.

If auger is not available, make a ‘V’ shaped cut to a depth of 15 cm in the sampling spot using spade.

Remove thick slices of soil from top to bottom of exposed face of the ‘V’ shaped cut and place in a clean container.

Jinzhou City Shitan Machinery Equipment CO. LTD.  is a professional production and

processing company for core drilling rigs, crawler drilling rigs, various track chassis, various

types of mud pumps, various track transport vehicles, etc. It is one of the outstanding

manufacturers of similar products in North China. Strong technical force. The modern productiona

equipment and complete testing means are specialized in the development, manufacture and

marketing of drilling rigs.

To ensure the quality and stability of the machine, we use the most advanced production and testing

equipment, Made from high quality materials, with fashion and compact design, that keeps our drilling

rigs more efficiency and with low failure rate, more economic and durable, and with a high comprehensive

cost performance. Our water drilling rigs have received the real market validation as the majority of our

customer’s positive feedback.

The company's main products are rigs: XY-1, XY-1A, XY-1B, GK-180, GK-200, DPP-100 and other series

of drilling rigs: gearbox assemblies and gyro assemblies for various rigs, Winch assembly, reducer assembly,

pump assembly. Drilling tools: sedimentary pipe joints, casing joints, casing couplings, drill pipe joints, casing

core pipes, lifters, automatic drop hammers, earth borrowers, standard penetrations, forks, lock joints, alloy drill

bits Hundreds of drilling tools, such as steel sand drill bits, core pipe joints, drill pipe pliers, and casing pliers.

Jinzhou City Shitan Mechinery Equipment CO. LTD. has a complete and scientific quality management

system. The integrity, strength and product quality of Jinzhou Stone Exploration Machinery Co., Ltd. have been

recognized by the industry. Welcome friends from all walks of life come to visit, guide and negotiate business!
