Categories | Wire Crimping Machine |
---|---|
Brand Name: | RKENS |
Model Number: | RS-5505 |
Place of Origin: | china |
Name: | Automatic Wire Cutting Stripping And One-Side Crimping And Tinning Machine |
Usage: | Cut, strip, one-end crimp and tin |
Speed: | 6000-8000PCS/H |
Wire Size: | AWG24-AWG18, AWG24-AWG32 |
MOQ: | one set |
Price: | negotiable |
Packaging Details: | Carton box or wooden box |
Delivery Time: | 5-7 days |
Payment Terms: | TT |
Supply Ability: | 300sets/month |
Company Info. |
RKENS TECHNOLOGY CO.,LTD |
View Contact Details |
Product List |

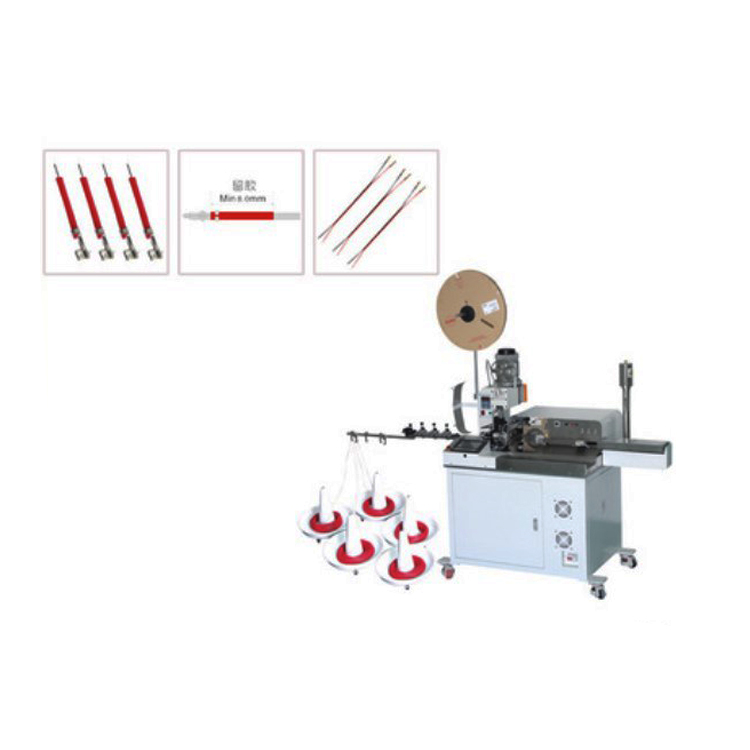

Automatic Wire Cutting Stripping And One-Side Crimping And Tinning Machine
Intro:

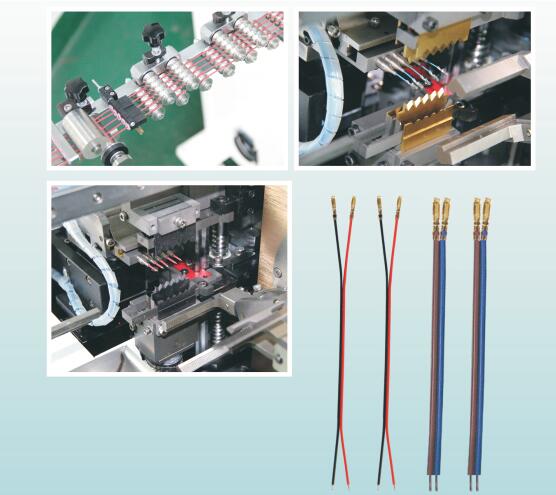

This full autoamtic machine enables you to fast speed cut, strip , tin and crimp wires. It is a fully programmable wire crimping and tinning machine. Cut, strip, twist, tin and crimp can be finished at same time. All parameters can be set by pressing LCD display easily.
Suitable:
Automatic wire cutting stripping crimping and tinning machine works for AWG24-AWG18, AWG24-AWG32 wires.
It can cut, strip, one-end crimping and tinning
Parameter:
Model | RS-5505 |
Name | Automatic Wire Cutting Stripping And One-Side Crimping And Tinning Machine |
Usage | Cut, two-end stripping, one-end crimping, one-end partial stripping, one-end twisting, one-end tinning |
Capacitor | 6000-8000pcs/h depends on wires |
Available wires | AWG24-AWG18, AWG24-AWG32 |
Cut length | 30-550mm Can be customized as per needs |
Cut tolerance | 0.2±0.02 *(L) |
Strip length | 0-9mm |
Twist length | 3-9mm |
Tin length | 0.5-9mm |
Air supply | 0.5-7MPA |
Size | 1210*770*1370mm |
Weight | 450KG |
Features:
![]() |
