WL400 Nitrogen High Pressure Control Panel With FCTFE Seat Easy To Install

Categories Changeover Manifold
Place of Origin: Guangdong, China (Mainland)
Brand Name: AFK
Model Number: WL400
Supply Ability: 10000 Set/Sets per Week
Packaging Details: Export packing
MOQ: >=1 Sets
Price: Negotiable
Certification: CE
Max inlet pressure: 2200, 3000 psig
Outlet pressure range: 0~25, 0~50, 0~100, 0-150, 0~200 psi
Working temperature: -40° F ~+165° F(-40°C+74°C)
Cv: 0.14
Valve seat: FCTFE
Body material: 316L
Diaphragms: 316L
Port: SHENZHEN
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

WL400 Nitrogen High Pressure Control Panel With FCTFE Seat Easy To Install

Product Description

Product Application

It is applied to the gas pipeline terminal, easy to use the control gas flow size. Maximum input pressure up to 20.7 Mpa (3000psi), corrosion protection, clean-room assembly test, suitable for laboratory, gas analysis and other high purity gas use.

Product Features


*Equipped R11 pressure regulator and high pressure ball valve

*Pressure regulator and pipe through the pressure test and leakage test

*Wall installation, easy to use and safe

*2" stainless steel pressure gauge, reading clearly

Product Specifications

*Max. Inlet Pressure : 2200, 3000psi
*Max. Outlet Pressure: 0-25, 0-50, 0-100, 0-150, 0-250psi
*Working Temperature: -40℃~74℃ (-40℉~165℉)
*Pressure Regulator Leakage Rate: 2 x 10-8-atm.cc/sec He
*Cv: 0.14

Typical applications

1) Laboratory

2) Gas Chromatography

3) Gas Laser


4)Tested instrumentation

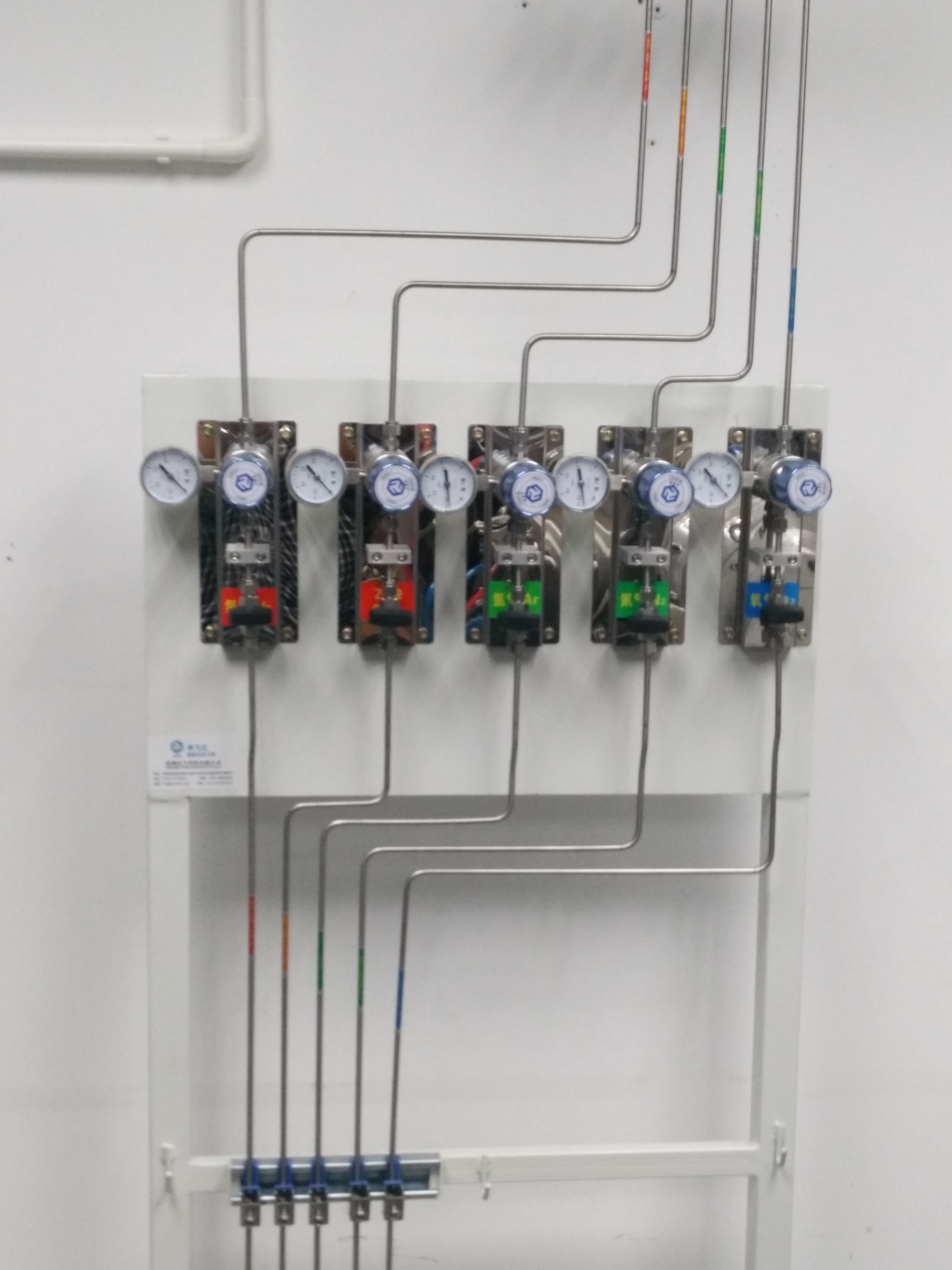

Product Show

Packing & Delivery

Packaging
Size
Decided on the product
Weight22
2KGS
Packaging Details
Export packing or according customer's request.
