| Categories | Hall Effect Current Sensor |
|---|---|
| Place of Origin: | Jiangsu, China (Mainland) |
| Brand Name: | chieful |
| Model Number: | CS100E |
| MOQ: | 1-499 Pieces |
| Price: | Negotiable |
| Usage: | Magnetic Sensor |
| Theory: | Hall Sensor |
| Output: | Analog Sensor |
| weight: | 80 g |
| color: | black |

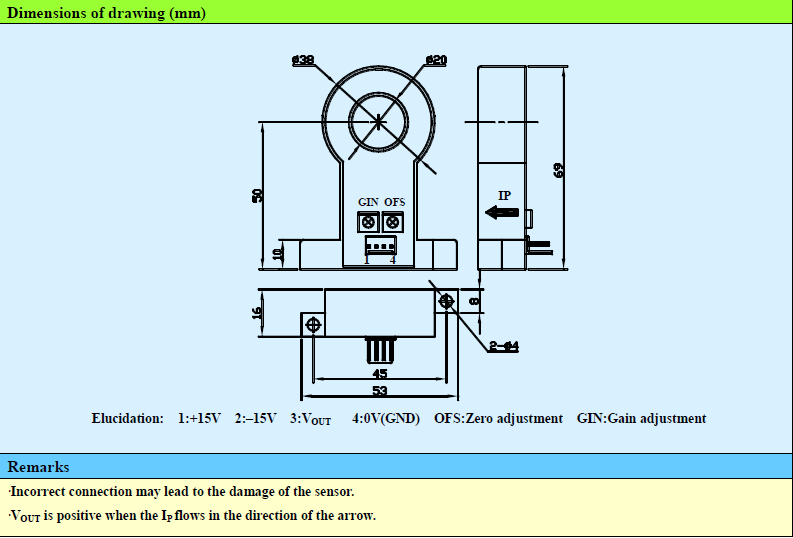

| diameter: | 20 mm |
| Application: | Automation |
| Product name: | hall current sensor CS100E |
| Type: | open loop |
| Certificate: | CE ,RoHS,ISO9001 |
| Capacity: | 10000pcs/month |
| Warranty: | 5years |
| Selling Units: | Single item |
| Single package size : | 23X18X7 cm |
| Single gross weight: | 0.08 kg |
| Package Type: | packing in bubble and carton |
Hall current sensors are mainly used to isolate and convert AC, DC, pulse and other complex signals .After signals are convertedaccording to the Hall Effect Theory,the can be directly acquired by AD, DSP, PLC, secondary instruments and other devices.Hall current sensors are widel applicable for acquisition and feedback control of current signals in the current monitoring,battery application,inverter,solar power management,direct current cabinet ,DC motor drive,electroplating,welding,frequency converter,UPS servo control systems.
hall current sensor CS100E
| Electrical characteristics | ||||||||
| Type | CS050E | CS100E | CS200E | CS300E | CS400E | CS500E | ||
| IPN | Primary nominal input current | 50 | 100 | 200 | 300 | 400 | 500 | A |
| IP | Measuring range of primary current | 0~±100 | 0~±200 | 0~±400 | 0~±600 | 0~±800 | 0~±800 | A |
| VOUT | Nominal output voltage | 4±1% | V | |||||
| VC | Supply voltage | ±15(±5%) | V | |||||
| IC | Current consumption | VC=±15V <20 | mA | |||||
| VD | Insulation voltage | AC/50Hz/1min 2.5 | kV | |||||
| εL | Linearity | <1 | %FS | |||||
| VO | Offset voltage | TA=25℃ <±25 | mV | |||||
| VOM | Residual voltage | IPN→0 <±20 | mV | |||||
| VOT | Thermal drift of V0 | IP=0 TA=–25~+85℃ <±1 | mV/℃ | |||||
| TR | Response time | ≤3 | μs | |||||
| f | Frequency bandwidth(-3dB) | DC~20 | kHz | |||||
| TA | Ambient operating temperature | –25~+85 | ℃ | |||||
| TS | Ambient storage temperature | –40~+100 | ℃ | |||||
| RL | Load resistance | ≥10 | KΩ | |||||
| Standard | Q/3201CHGL02-2007 | |||||||
CHIEFUL offers a wide range of current and voltage transducers in the portfolio. And our transducer can be designed according to the specific demands.The company explore foreign markets actively, our products have been sold to the United Kingdom, Germany, Denmark, France, Italy, Sweden,Turkey, Israel, South Korea, India etc.
Q1: Are you a factory?
A:We are a factory setted up more than 17 years and export more
than 10years.
Q2: When is the delivery date?
A: 7-10 working days in general.
Q3: Could you send me a quotation?
A: Sure.
Q4: How about the after service?
A: Five years warranty.
Q5: What about the shipping package?
A: Anti-static package and carton.
|
