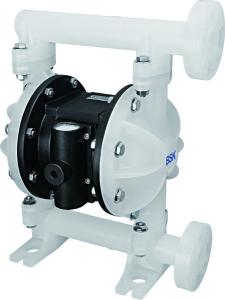

Pneumatic Diaphragm Transfer Pump Thermoplastic Rubber Diaphragm Pump

Pneumatic Positive Displacement Pump Thermoplastic / Rubber Diaphragm Pump

Air diaphragm pump(also know as a Membrane pump, air operated double diaphragm pump(AOOD) or pneumatic diaphragm pump)that uses a combination of the reciprocating action of a rubber,thermoplastic or diaphragm and suitable valves either side of the diaphragm (check valve,butterfly valves,flap valves,or any other form of shut-off valves) to pump a fluid.

Product Description

1. Double Diaphragm Pump Air Operated Double Diaphragm Pump Rubber Diaphragm for Pump for Food& Chemical, Chemical Resistant Diaphragm Pump is the new kind of transportation machine, adopting compress air, smoke and industry exhaust gas as power source.

2. It has two diaphragms, the compressed air come to the pump body to drive the pump in the constant action of sucking and releasing, so it can pump the liquids easily by this principle. Also it is very safe in dangerous environment since it has no electric motor.

3. air operated double diaphragm pumps not only can transfer the flow liquid, but also can transfer some uneasy flowed medium, with the merits of self-priming pump, diving pump, shield pump, slurry pump and impurity pump etc.

Specifications

Air Diaphragm Pump
1. Non leakage
2. Good self priming performance
3. Convey all kinds of medium
4. Material:Cast steel,Alu,SS,PP

A 15 X X - X X X - X (model selection)

Form of pipe mouth:A-BSP B-NPT(F) C-Flange

Diaphragm material:9 – Santoprene H – Hytrel T - PTFE/Santoprene

Ball material:9 -Santoprene H – Hytre T – PTFE A - Acetal

Ball seat material:P/K –Polypropylene/Kynoar SS –Stainless Steel

Pump material: SS –Stainless Steel AL –Aluminum Alloy CI- Carbon Steel P/K –Polypropylene/Kynoar

Maximum Applied Temperature Limits (diaphragm / ball / seal material)

Acetal ··············································· 40°- 150°F (4.4- 65.5°C)

Santoprene························································································-40°- 225°F (-40°- 107.2°C) ··································································································40°- 220°F (4.4°- 104°C) Nitrile···································································································10°- 180°F (-12°- 82°C) Viton································································································-40°- 350°F (-40°-176.6°C) Hytrel···································································································-20°-150°F (-12°- 93°C) Kynar································································································10°-200°F (-28.9°- 65.5°C) Polypropylene····························································································32°- 175°F (0-79.4°C)

0.5” Flow diagram
