| Categories | Fiber Optic Splitter |
|---|---|
| Brand Name: | TTI |
| Model Number: | PLC ABS 1x8 1/2-3/4-56-78 |
| Certification: | RoHS, ISO9001, UL |
| Place of Origin: | China |
| MOQ: | Negotiable |
| Delivery Time: | 3-7 work days |
| Packaging Details: | 1000 Pieces / Day |
| Product Type: | PLC ABS Box |
| Material: | LSZH, PVC |
| Cable Size: | 2.0mm or Customerize |
| Fiber Type: | Single Mode |
| Price: | Negotiable |
| Company Info. |
| TTI Fiber Communication Tech. Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

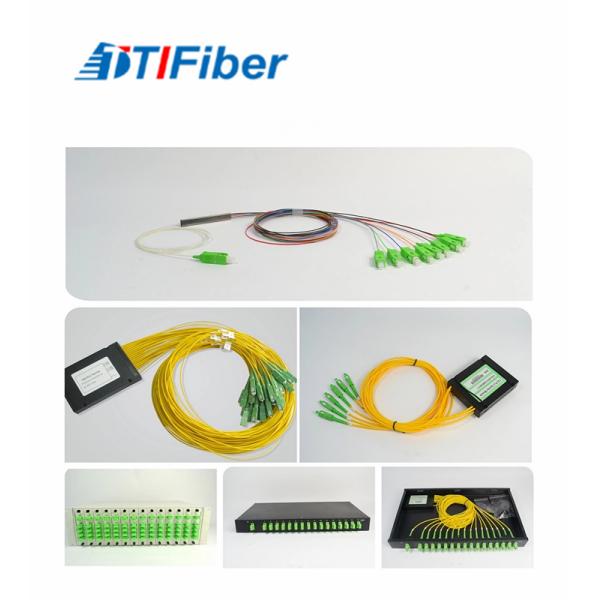

1x8 PLC Splitter ABS Box Fiber Optic Coupler Splitter
Optical power splitter is a component that splits the optical power in one optical route into a few different routes according to a certain allocation ratio.PLC 1xN Splitter is a such kind component that is based on planar light wave circuit technology, which has the advantages of compact size, highly reliability and low cost.
Features:
1. Excellent Environmental Stability
2. Excellent Mechanical performance
3. Good uniformity and low insertion loss
4. Low insertion loss and low polarization dependent loss
5. Uniform power splitting, and good stability and reliability
6. The Large-scale manufacture ability with automatic packaging
technology which leads the low-cost advantage
7.Sopport 1310/1490/1550nm wavelength simultaneous used in the FTTH
applications
Application:
Specification:
| Parameters | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 |
| Operating Wavelength (nm) | 1260~1650 | |||||
| Fiber Type | G657A or customer specified | |||||
| Insertion Loss (dB)(P/S Grade) | 3.8/4.0 | 7.1/7.3 | 10.2/10.5 | 13.5/13.7 | 16.5/16.9 | 20.5/21.0 |
| Loss Uniformity (dB) | 0.4 | 0.6 | 0.8 | 1.2 | 1.5 | 2.0 |
| Return Loss (dB) (P/S Grade) | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 |
| Polarization Dependent Loss(dB) | 0.2 | 0.2 | 0.2 | 0.25 | 0.3 | 0.35 |
| Directivity (dB) | 55 | 55 | 55 | 55 | 55 | 55 |
| Wavelength Dependent Loss(dB) | 0.3 | 0.3 | 0.3 | 0.5 | 0.5 | 0.5 |
| Temperature Stability(-40~85 ℃)(dB) | 0.4 | 0.4 | 0.4 | 0.5 | 0.5 | 0.5 |
| Operating Temperature (℃) | -40~85 | |||||
| Storage Temperature (℃) | -40~85 | |||||
| Package | Steel Tube or ABS | |||||
|
