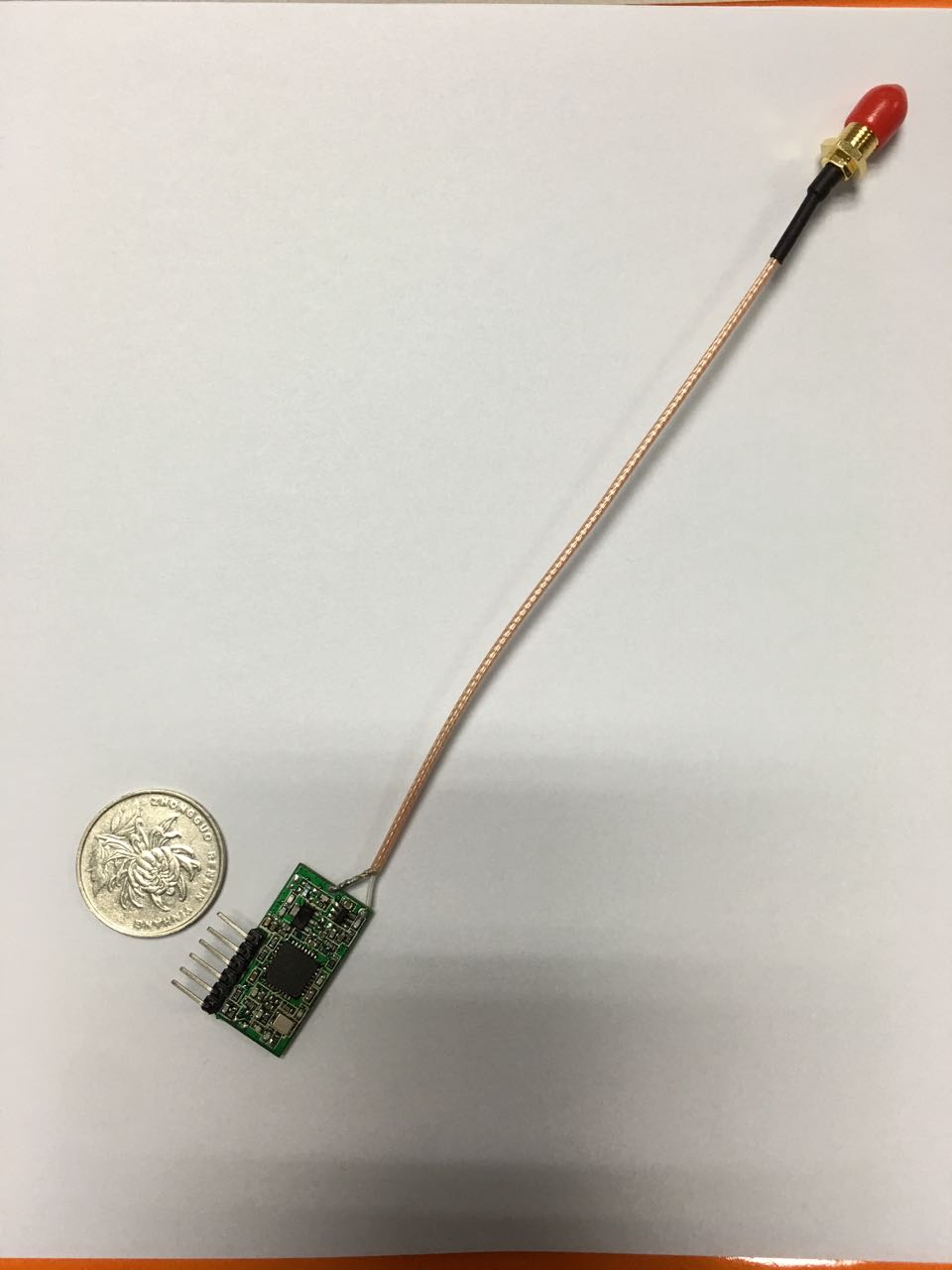

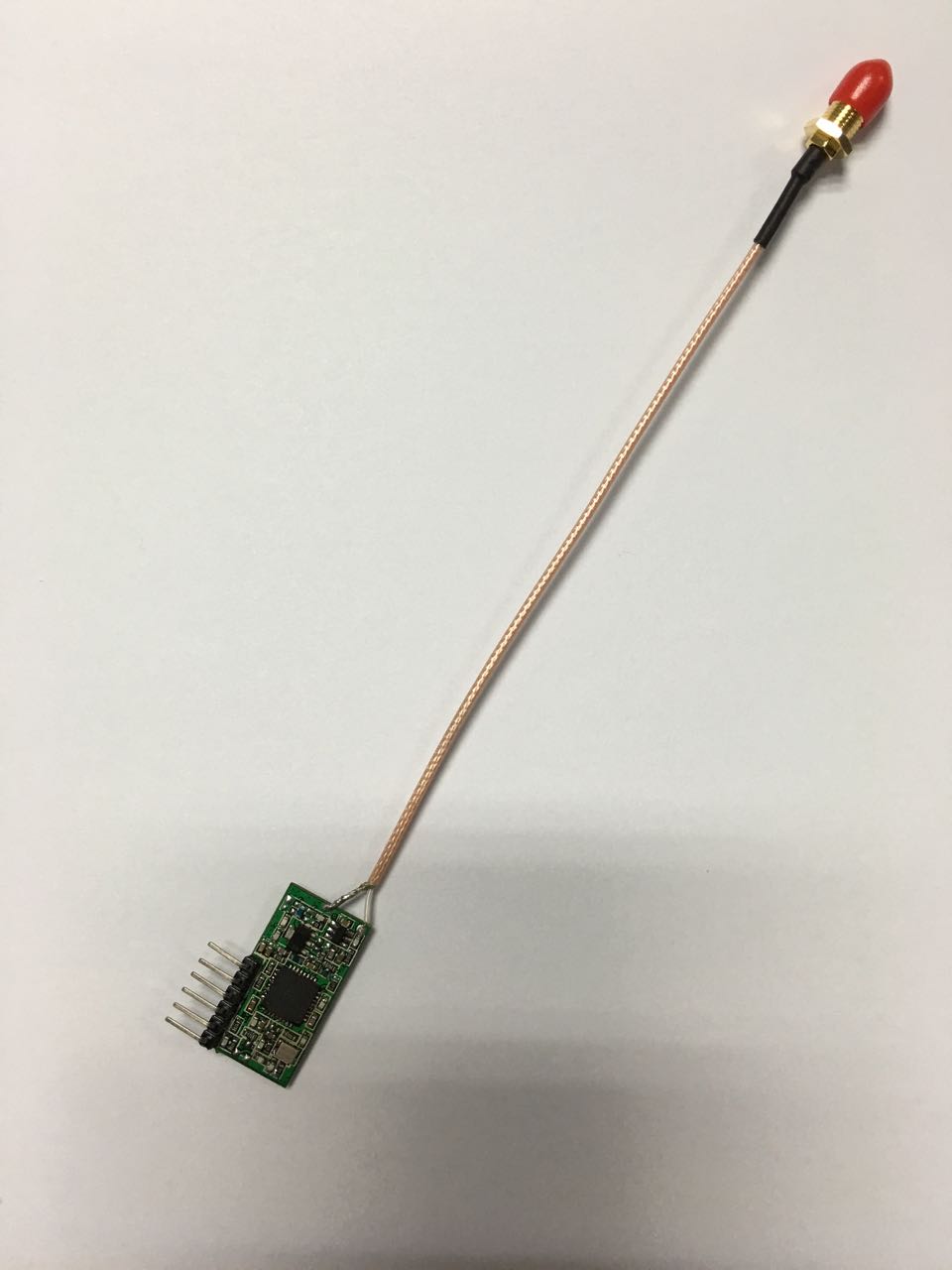

100mW Mini Size RF Data Module TTL Wireless Transceiver Module 433MHz 1km

LS-S100 is a Mini-size RF data module. It is usually used for restricted space application. With TTL interface, this wireless transeiver is widely used for micro-controller wireless communication and other TTL level port communication systems. It has high reliability and good performance.

I. Technical specification

II. Application Field

• SCADA
• AMR (Automatic Meter Reading)
• Camera control (PTZ)
• Sports scoreboard control
• Electronic signs and message boards
• GPS fleet tracking
• Security systems
• Vending machine monitoring
• Remote weather systems
• Remote parking and gate access systems
• Remote weigh scales
• HVAC control
• Remote pump station control
• Homeland defense
• Robotics and control
• Wireless inventory control applications
• Pivot irrigation
• Airborne telemetry
• Remote instrumentation
• Wireless pressure and temperature sensors
• wireless data transfer

III. How to Use It

1. Default 5V Power supply

2. PIN Definition (6pin)

Table 1: JP1 Pin Definitions and connection methods
