| Categories | Gear Hobbing Machine |
|---|---|
| Brand Name: | Baishun |
| Model Number: | Y3150 |
| Certification: | ISO; CCC; CE |
| Place of Origin: | Zhengzhou City, Henan Province, China |
| MOQ: | 1set |
| Price: | negotiation |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 60 sets/month |
| Delivery Time: | 20 workingdays |
| Packaging Details: | Exported standard package |
| CNC or Not: | CNC |
| Power(kw): | 3kw |
| Type: | Gear Hobbing Machine |
| Voltage: | 380v/415v/ as customer's requirement |
| Max Module: | 5/6MM |
| Diameter of worktable mandrel: | 30mm |
| Color: | as customer's requirement |
| Dimension(L*W*H): | 1825*960*1730mm |
| CNC control system: | KND or as requirement |
| Max diameter of workpiece: | 500mm |
| Max diameter of hob: | 120 |
| Weight: | 2600kg |
CNC spur straight gear cutting machine/worm gear hobbing machine
Product Discription
Y3180/Y3150 series gear hobbing machine is fixed by vertical column and adopts the traditional layout of horizontally moving working table, suitable for processing cylindrical gears, worm wheel and short spline shaft in bulk, in package, or in single workpiece. The machine has the following characteristics:
1. Raised height for vertical column and increased stroke: The vertical column is made higher (180/130mm increased axial stroke in head slide than Y3180/Y3150 of the same kind) to enable processing of larger tooth width.
2. Service life of cutting tools is increased by electric tool leap. The longest stroke reaching 180mm, such electric tool leap takes longer hob and greatly increases life the hob.
3. Higher tool speed allowed: Rolling bearings replace the traditional bearings along the hobs to allow greater rotating speed of the tools.
4. Backlash balancing cylinder is involved as the tool post moves in the axial direction, effectively reducing the space between lead screws and eliminating vibration.
| Technical Parameter | Unit | Y3150E |
| Max work piece diameter | mm | 500 |
| Max modulus | mm | 8 |
| Max machining width | mm | 250 |
| Min machining number of teeth | 6 | |
| The largest machining spiral angle | +-45 | |
| Scope of main tool turning speed and grade | rpm/grade | 40-250/9 |
| Max turning angle of tool | 240 | |
| Max tool loading dimensions(diameter* length) | mm | 160 *160 |
| Main motor | kw | 6.45 |
| Spindle taper | Morse 5 | |
| Max axial amount of movement of tool | mm | 50 |
| Distance between axis line of tool and worktable face | mm | 235-535 |
| Min distance between tool axis and worktable axis | mm | 30 |
| Distance between back rest under face and worktable face | mm | 380-630 |
| Machine size(length* width* height) | mm | 2440*1370* 1800 |
| Weight | kg | 4500 |

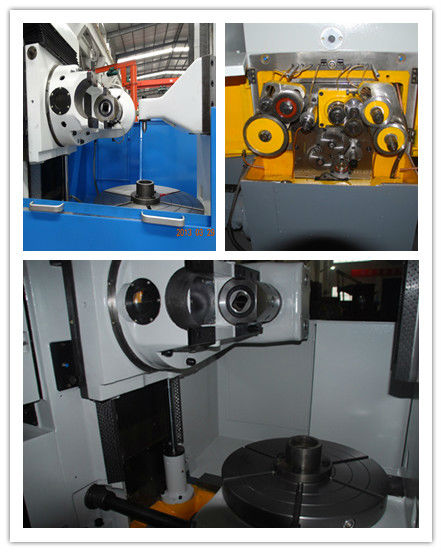

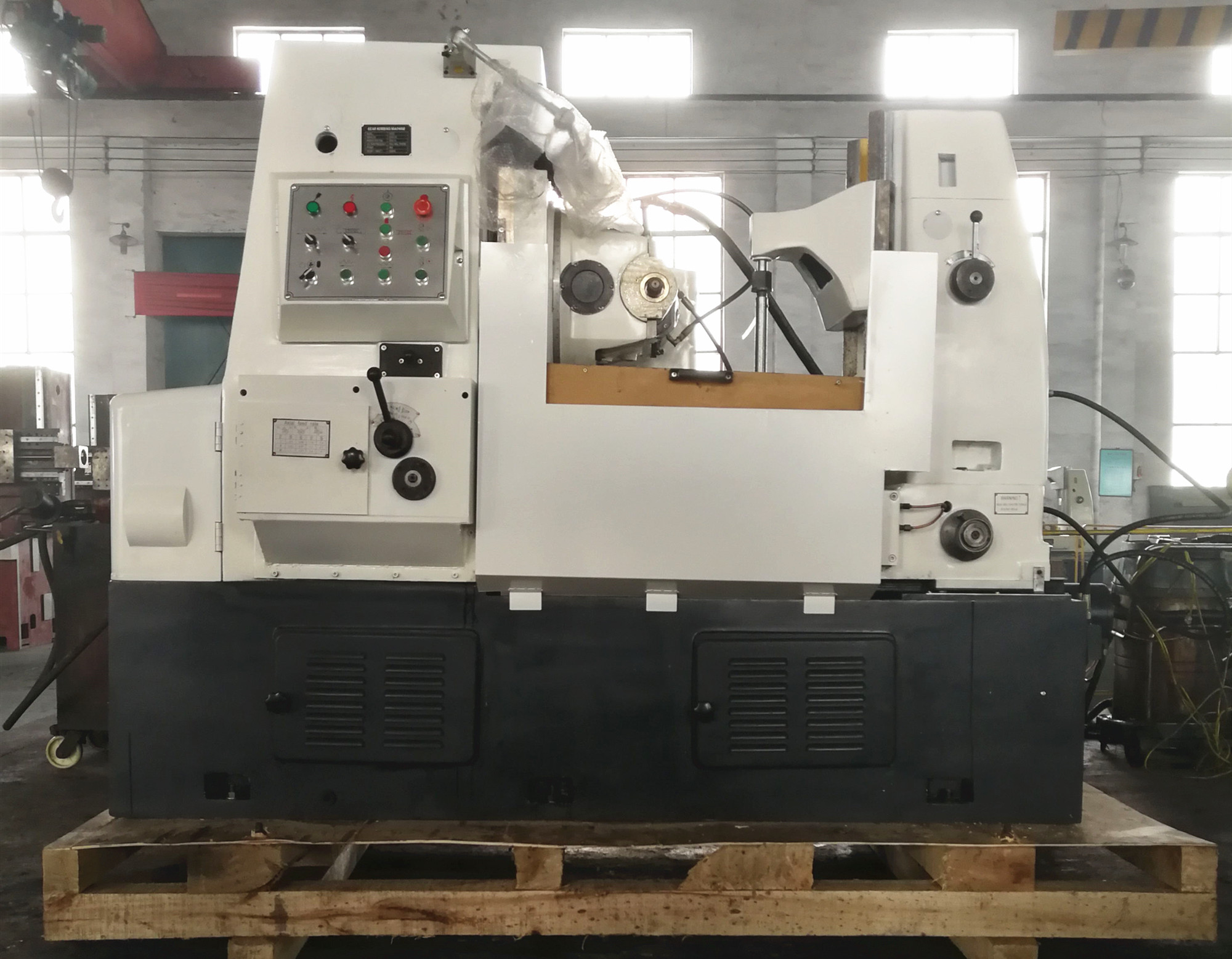

Product photos for your reference:
The feature of Y3150 cnc gear hobbing machine :
1 The system :KND CNC system
2 Resolution rato:0.001mm
3 The electric motor :Servo motor
4 The basic guide surface: hardening treatment
5 Turbine material:Tin brone
6 Processing range :spur gear ,spiral gear ,worm wheel,arc-shaped gear ,drum gear and so on
1. 24 Hours after sales service by E-mail or Phone.
2. 100% response rate.
3. Engineers available to service overseas.
4. OEM service is available
5. Warranty: 12 months, beyond the warranty period, all spare parts offered to you withfactory price.
|
