| Categories | Screw Terminal Block |
|---|---|
| Brand Name: | WONKEDQ |
| Model Number: | JUK 10-DREHSI |
| Certification: | CE, RoHs, CQC,etc |
| Place of Origin: | China |
| MOQ: | 100pcs |
| Payment Terms: | T/T, Paypal, Western Union, etc |
| Delivery Time: | 2-7 days |
| Packaging Details: | Box |
| Type No.: | JUK 10-DREHSI |
| Brands: | WONKEDQ,other brand can be customized |
| Colour: | Grey, Black, other color can be customized |
| Package: | 31.19g/pc, 30PCS/BOX, 540PCS/CTN |
| Rated voltage/current: | 800V/10A |
| Conductor size: | 20-6 AWG |
| Company Info. |
| Wonke Electric CO.,Ltd. |
| View Contact Details |
| Product List |

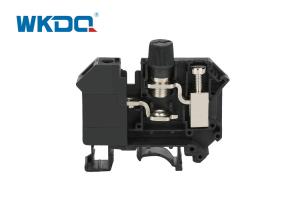

1. DESCRIPTION
This type fuse terminal blocks act a fuse carrier for most common North American and European fuses and they allow for potential distribution with the double bridge shaft.
The terminal blocks therefore allow bypass routing of two separate potentials next to each other. This has the advantage of a time-saving potential in feed and a correct, functional configuration of the terminal strip. For signaling a triggered fuse, fuse terminal blocks with light indicators are available for both AC and DC voltage.
Long durable time and high quality.
Reliable and safe operation.
DIN Rail Fuse terminal block for cartridge fuse insert.
Use caution at higher ambient temperatures.
The illuminated model is available. The illuminated model will signal when the fuse breaks.
According to the maximum power consumption of the fuse selection.
Made from engineering flame retardants nylon PA66 with brass screw metal.
With universal foot which can be installed on Din Rail NS 35.
OEM service is supported.

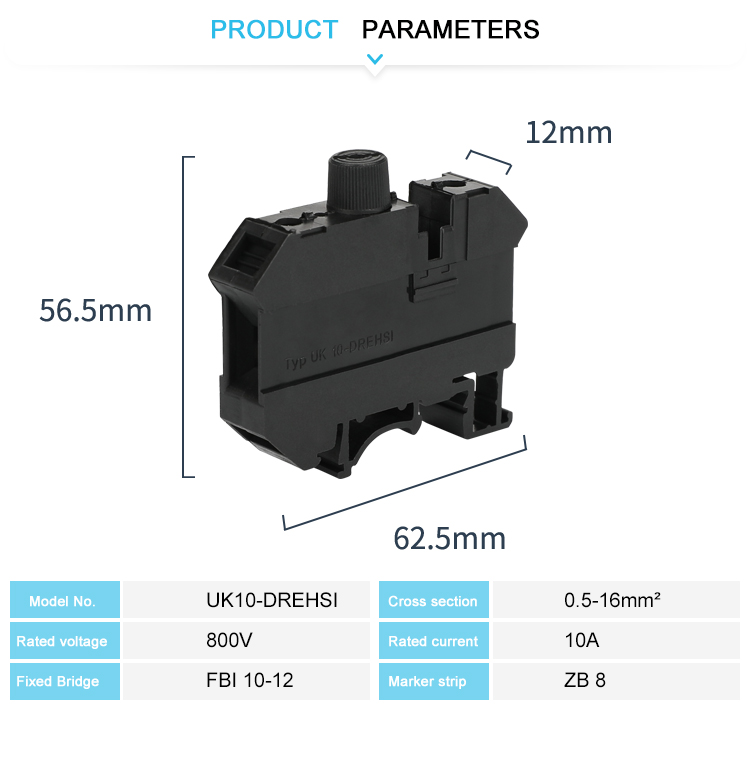

2. TECHNICAL PARAMETERS
| Part No. | JUK 10-DREHSI, Fuse terminal block |
| Color | Black, different colors can be customized |
| Length/Height/Wide (mm) | 62.5/56.5/12 |
| Connection method | Screw type |
| Material | Nylon PA66 |
| Rated Voltage/Current | 800V/10A |
| Cross section, solid/soft | 0.5-16mm² |
| Conductor Size | 24-6 AWG |
| Mounting Type | NS 35/7.5 |
| Standard | IEC 60947-7-1 |
| LOGO | Customized logo are accept |
| Packing Detail | 31.19g/pc, 30PCS/BOX,540PCS/CTN |
| Certification | CE/RoHS/CQC/ISO 9001 |
