| Categories | Pipe Crawler Robot |
|---|---|
| Brand Name: | Snake |
| Model Number: | SNK-CFR235 |
| Place of Origin: | China |
| MOQ: | 1 Set |
| Price: | USD |
| Payment Terms: | T/T |
| Supply Ability: | 100 Set |
| Delivery Time: | 50-70 work days |
| Certification: | yes |
| Packaging Details: | Polyurethane Box |
| Name: | Inspection robot |
| Inspection material: | Paiting thickness |
| Color: | Blue |
| Material: | Steel |
| Method: | Holiday test |
| Thickness Range: | 0~500 um |

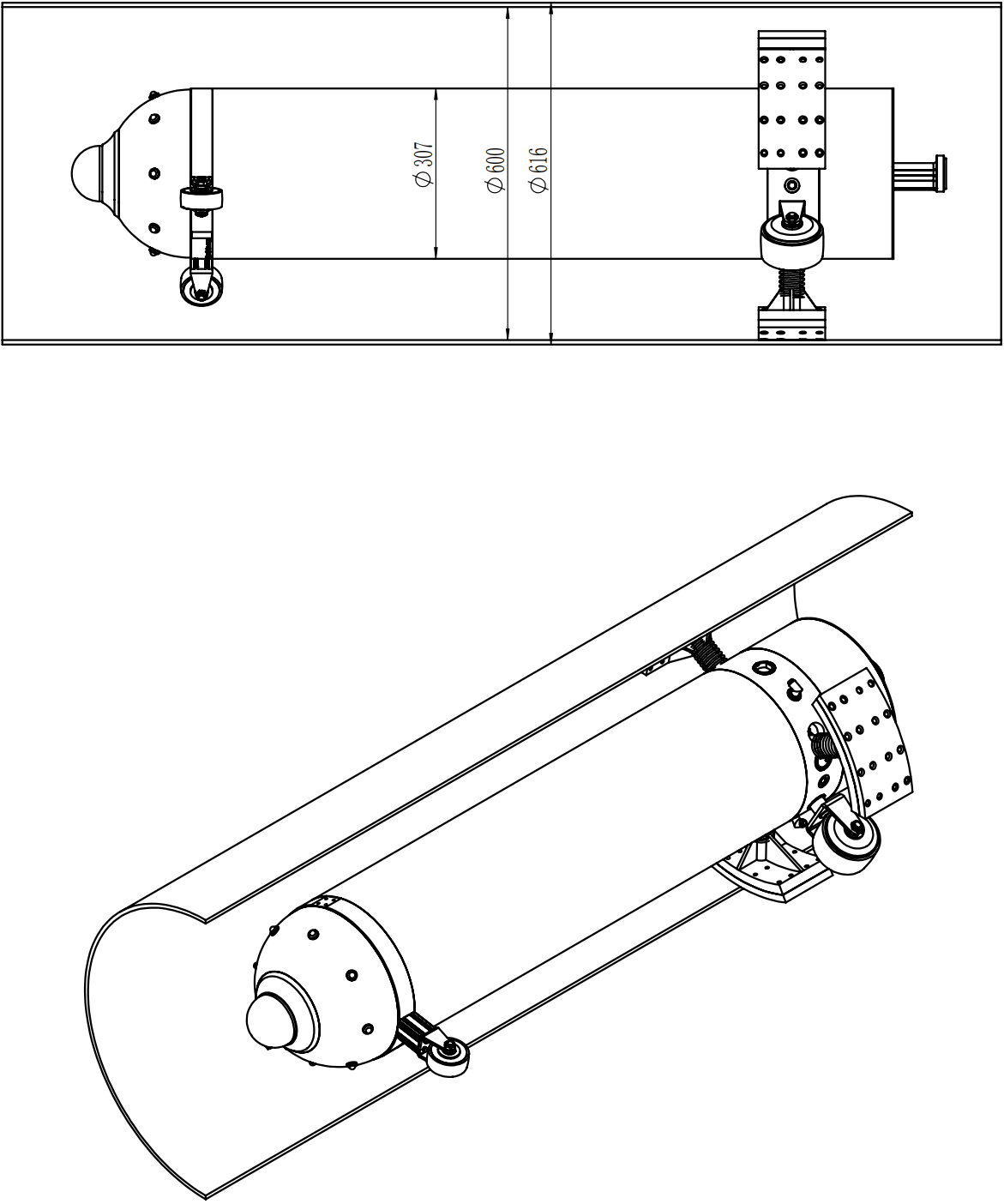

600mm Pipe Crawler Robot For Pipeline Internal Coating Thickness measurement
Product description
Snake pipeline coating thickness inspection robot is inspecting the internal coating thickness of pipeline,the detect part can detect the coating thickness range from 0 to 1000um.
Rotate degree: 360o
Romote control: wireless control
Thickness range: 0 to 1000um
Technical specification
| Item | Specifications |
| Pipeline Internal Diameter Range | 200~1016mm |
| Distance Range | 0~1km |
| Coating Material Type | Liquid, Powder |
| Traffic ability | Min Bending Diameter: 6D Inner Diameter Variation:±10% |
| Working Temperature Range | -20~60°C |
| Coating Speed | 4-10 joints/h |
| Pipeline Type | Oil, gas, water |
|
