Wide Temperature Silicone Industrial Keyboard Desktop Type For Military

Categories Silicone Industrial Keyboard
Brand Name: IKB-MKB
Model Number: K-TEK-M275TP-FN-DT-BL-ML
Certification: CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
Place of Origin: Shenzhen, China
MOQ: 1pc
Payment Terms: Full payment in advance, Western Union, T/T, Paypal
Supply Ability: 3000psc/month
Delivery Time: ASAP Within 2 weeks upon payment confirmed
Packaging Details: Each keyboard to one box, several boxes to one carton.
OEM: Yes
application: military
connection: USB, PS2
material: rubber
Housing: optional
backlight: red
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Wide Temperature Silicone Industrial Keyboard Desktop Type For Military

Touchpad Wide Temperature Military Oblique Desktop Silicone Keyboard​


DIMENSIONS : 304.40mm x 195.80mm x (22.34mm-47.33mm) (L x W x H)


DESCRIPTION: 89 keys IP68 dynamic sealed & ruggedized silicone rubber keyboard with full keyboard functionalities with sealed & ruggedized tough touchpad,


12 FN keys (F1,F2...F11, F12) are on the top line for easy operation, with gold finnish PCB with carbon-on-gold key switch technology with long stroke (1.50mm) with extremely good tactile feeling for fast and accurate data input without any noise, with durable coating & antimicrobial keyboard surface withstand to most chemicals and liquids under harsh environment,


CLEAN key for easy cleaning via lock/disable the entire keyboard without needing to take the keyboard from PC, wired keyboard. Mountable desk top version with robust polycarbonate case, adjustable backlight included, military level. Industrial level optional.


Military level can be worked in -40- +80 degree wide temperature working conditions.


Used widely for militaty computer


MECHANICAL DATA:

Key

89 keys

Key top style

Protuberant rectangular keys with tactile feeling

Touchpad cover

Composite, More than Lifetime 10 million strokes, Mutual Capacitance sensing

X/Y position sensing resolution

40 counts/mm

X/Y position reporting

Relative

Output

PS2 or USB

Tracking speed

Maximum 1,016 m/sec

Power supply voltage

5 VDC ± 0.25V

Current rating (active mode)

Key Size

2.0mm x 13.0mm for normal keys, 23.4mm x 13.0mm for enter key, 68.0mm x 13.0mm for space bar key

Cable Length

2.0m

G.W.

1.5KGs

APPLICATIONS:
This keyboard provides full-size versatility in a rugged, compact design with the added convenience of an integrated touchpad. For working in low-light areas, it is with LED backlighting.


MEDICAL: lab, hospital, clinic, dental, such as carts, diagnostic equipments, operation rooms, dialysis centers etc;


Engineered for NEMA 4X protection from dust, water and corrosive liquids. This keyboard is ideal for use in environments ranging from manufacturing to material handling to medical settings. The tactile keys allows for easy data entry, while its robust polycarbonate case protects it against any hazardous environment.


MATERIAL HANDLING: mobile keyboard, data entry, assembly line etc


MILITARY: Army, Navy, Air force


INDUSTRIAL: Industrial automation, pharmaceutical, oil and gas, food and beverage, clean or dirty manufacturing environments, warehouses


MAIN FEATURES:
Clean key-Prevents data from being sent while the keyboard is wiped down, allowing user to clean at any interval with minimal downtime-User is notified of ‘lock down mode’ by brightly lit CLEAN KEY
Special durable-coating for excellent mechanical and chemical resistance
With firm tactile key feel, key travel 1.50mm key travel.
Integrated touchpad.
Ease of customizing with multiple languages, to accommodate foreign or custom variants.
PS/2, USB connection cables that plug directly into computer like keyboard operations.
Enclosure: industrial silicone, Robust ABS Polycarbonate Case
Low-profile keys for easy cleaning
Key life: 10 millions



ELECTRICAL DATA
Supply Voltage: +5V DC +/-5%
Current Rating: 30mA (non-backlight) , 150mA (with backlight on)
EMC Standard: IEC61000-4-2:2008; IEC61000-4-3:2006+AI:2007+A2:2010; IEC 61000-4-4:2004 EMI: EN55022: 2010
EMS: EN55024: 2010
Lifespan> 3 years
Switch Contact Material: Carbon-on-Gold key switch technology with gold PCB.
Interface: PS2, USB available.
OS: All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).


ENVIRONMENTAL ADAPTABILITY
Operating temperature: -40oC to + 80oC(Military Level),
Storage temperature: -40oC to + 80oC(Military Level),
Operating RH: 100%
Atmospheric pressure: 60-106Kpa
Shock: 3x11 ms pulses of 50g on each of 3 axes
Vibration: POWER SPECTRAL DENSITY: 0.04g/Hz, FREQUENCY RANGE: 20Hz - 2kHz, DURATION OF TEST PER AXIS: 3 hours


RELIABILITY
RoHS , CE, FCC, ESD
Protection Level: IP68, NEMA 6P
Key Lifespan >10 million actuations
MTBF >50000H
MTTR <30min

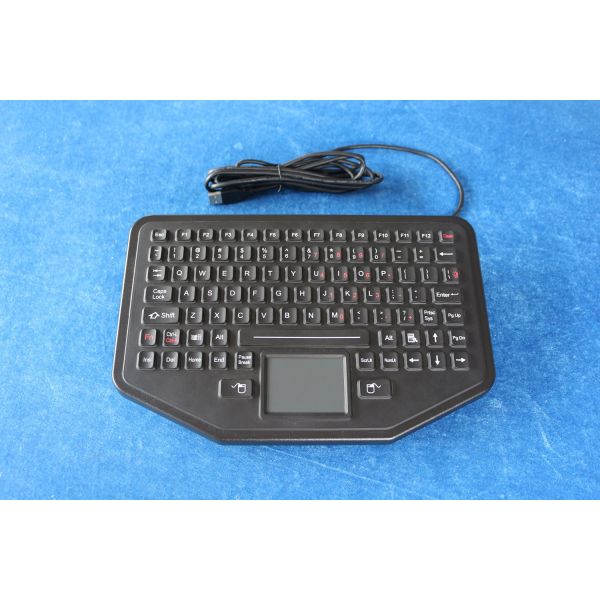

Actual photos
