| Categories | Heavy Construction Machinery |
|---|---|
| Brand Name: | Dongfeng Mid-south |
| Model Number: | HZS85 |
| Certification: | CCC |
| Place of Origin: | China |
| MOQ: | 1 |
| Price: | USD 33,000 to 44,000 per set |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 200 sets |
| Delivery Time: | 10 days |
| Packaging Details: | 40HQ container |
| Name: | Concrete plant / cement batching plant |
| Model: | Automatic |
| Batching machine: | 3 hoppers |
| Aggregate supply system: | 6m screw conveyor |
| Theoretical Capacity: | 35 m3 |

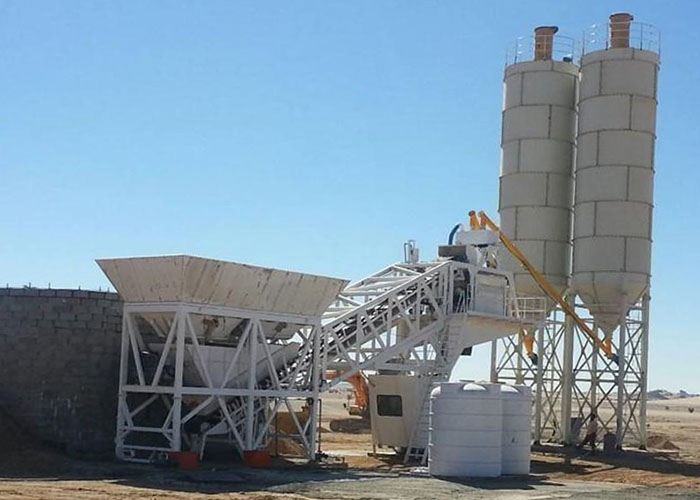

Stationary concrete batching with cement silos 15 to 200 m3 per hour
| Detail Parameters | |||||
| No | Item | Specification | Qty. | Remark | |
| 1 | JS750 Concrete Mixer | Main Speed Reducer | 1Set | ||
| Main Motor | 30KW | 1Set | |||
| Oil supply system(Manual) | 1Set | ||||
| Liner and blade | Alloy | 1Set | |||
| Overall Frame | 1Set | ||||
| lifting reducer | 1Set | ||||
| lifting Motor | 7.5KW | 1Set | |||
| 2 | PLD1600 Batching machine (three hoppers) | Motor | 3KW | 4Set | |
| Measure Hopper | Volume 1.2m³ | 1PCS | |||
| Storage Hopper | Volume 2.5 m³ | 3PCS | |||
| 3 | Water weighting system | Measure Hopper | 200Kg | 1PCS | |
| Sensor | 500Kg | 3PCS | |||
| Water Pump | 1.1KW | 1Set | |||
| 4 | Additive weighting system | Measure box | Volume 30Kg | 1PCS | |
| Sensor | 50Kg | 3PCS | |||
| Pneumatic butterfly valve | φ65mm | 1PCS | |||
| Pump | 0.55KW | 1PCS | |||
| 5 | Cement weighting system | Measure Hopper | 400Kg | 1PCS | |
| Sensor | 500Kg | 3PCS | |||
| Pneumatic butterfly valve | φ300mm | 1PCS | |||
| 6 | Aggregate Supply System | 6M Screw conveyor | Φ219 | 2Set | |
| Motor | 11Kw | 2Set | |||
| 7 | Air system | Pneumatic components | 1Set | ||
| Air Compressor | 4KW | 1Set | |||
| Pipe | 1Set | ||||
| 8 | Standard Electric control system | Electric control cabinet | 1Set | ||
| Main Component | 1Set | ||||
| Industrial Microcomputer | 19′ | 1Set | |||
| Color Display | 1Set | ||||
| 9 | Silo | Easy to assemble | 100T | 2PCS | |
| Terms of Condition |
| Payment: 40% T/T in advance, 60% balance before shipment or L/C at sight. |
| Deliver time: 10 days for shipment, 15 days for installation. |
| Port of Loading: Qingdao Port, China |
| Country of origin: China |
| Warranty: 18 months once the plant has been installed |
| Installation (Cost now included in FOB/CFR price) |
| The seller should dispatches one technical to assist in installation, commissioning and training. |
| The Visa, Round-Trip Flight Ticket and accommodation should be covered by the buyer. |
| The salary of Engineer USD80/day/person should be paid by the buyer. |
| The Buyer should get all necessary equipment for installation and provide translator. |
| Package |
| Concrete Mixing Plants and two silos are packed into two 40HQ. |
|
