LV Current Transformer / Indoor Dry Type Epoxy Resin Single Phase Current Transformer

We are manufacturer for instrument transformer.

7.2kV/12kV 1200/5 0.2s/10p Indoor Dry type / Epoxy resin type Single phase current transformer manufacturer

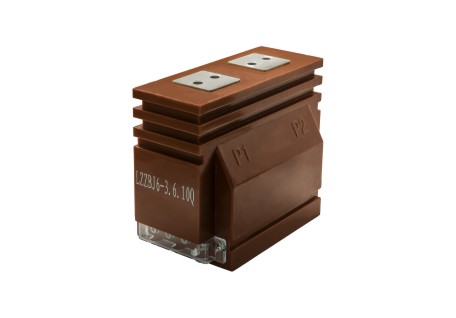

12kV indoor single phase epoxy resin type

1. Description

Chuangyin type LZZBJ6-12Q(A)(B) current transformer, epoxy resin casting insulation and fully enclosed support construction, encloses primary & secondary windings and annular core in the epoxy resin casting body.

The product has two secondary windings (one measuring winding and one protective winding).

It is widely used for measuring current, electric energy and protective relaying in the power system with the rated frequency 50Hz or 60Hz and highest voltage for equipment 7.2/12kV.

2. Specification:

Single ratio:

Double ratio:

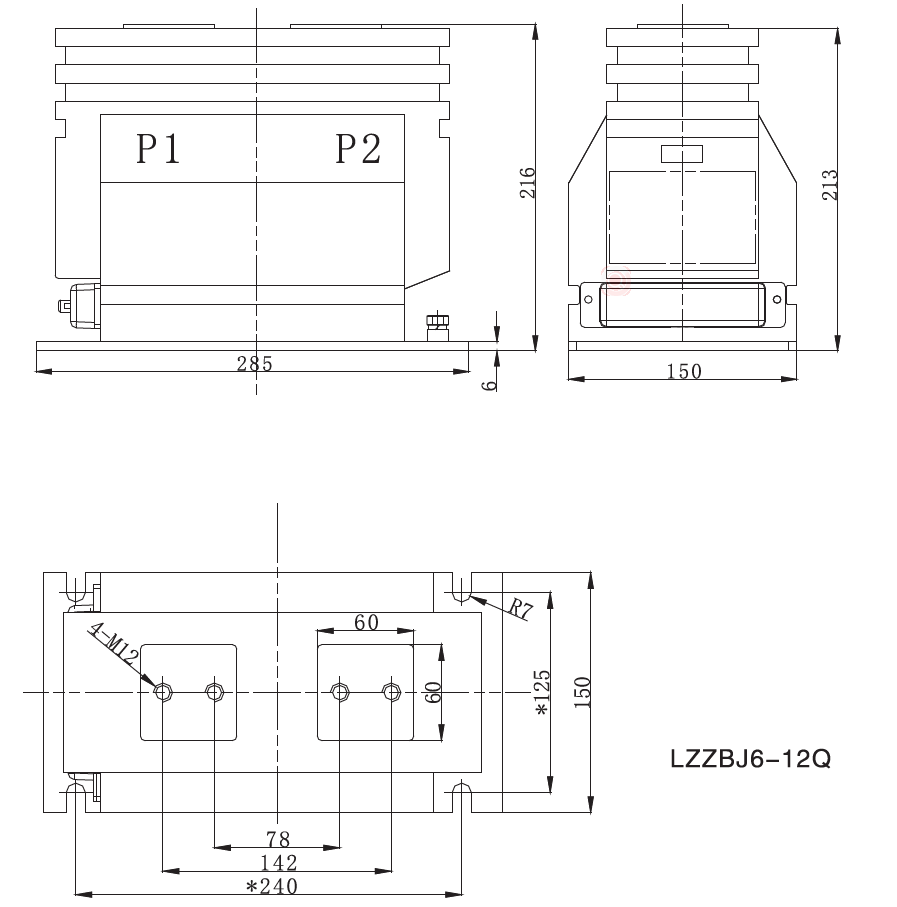

3. Outline drawing:

Remarks:

Upon request we are glad to offer transformers according to other standards or with non-standard technical specs.

The quality is assurance, the reasonable price, welcome to order, ordering or the proxy.
