| Categories | Concrete Mixer Truck |
|---|---|
| Brand Name: | SUNY |
| Model Number: | SUNNY DF153MT |
| Certification: | CCC, ASME, BV, SGS, etc |
| Place of Origin: | China |
| MOQ: | 1 unit |
| Price: | USD 25, 000 ~75, 000 per Unit |
| Payment Terms: | L/C, D/A, D/P, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 800 Units per year |
| Delivery Time: | 20 ~ 35 working days after we get the deposit |
| Packaging Details: | 40HQ container |
| Mixing effective volume (m3): | 3 to 7M3 |
| Hydraulic oil pump: | Germany ZF, Italy PMP, American Sao |
| Hydraulic motor: | Germany Rexroth, Heidler, Italy PMP |
| Reducer: | 577L (Bon Feili) |
| Cooling oil tank: | 15L (AKG) |
| Tilt: | 13.5 (°) |
| Rotation speed: | 0-15 (rpm) |
| Feeding speed: | ≥3(m3/min) |
| Discharge speed: | ≥1 (m3/min) |
| Discharge residual: | ≤1(%) |
| Concrete slump: | 70-260(mm) |
| Water supply form: | Water supply |
| Water tank capacity: | 350 (L) |
4M3 5M3 6M3 7M3 Mixer truck Dongfeng 3 to 7cubic cement concrete mixer truck Blue Red White
Hubei SUNY Special Automobile Manufacture Co . , Ltd is a professional transit mixer truck manufacturer in China . Supply ability of transit mixer truck is 200 units per month . We have a perfect quality inspection system for transit mixer truck . welcome to our company to purchase the transit mixer truck.
Specifications:
4M3 5M3 6M3 7M3 Mixer truck Dongfeng 3 to 7cubic cement concrete mixer truck Blue Red White
| Vehicle parameters | ||||
| Vehicle Modes | Vehicle Brand | SUNY | ||
| Overall dimensions | 6173 x2462 x2710 | Curb weight | 13650 kg | |
| Loading capacity | 4 to 7m3 | |||
| Chassis parameters | ||||||||
| Chassis model | EQ3141KJ/EQ3168KJ | Chassis brand | DongFeng | |||||
| Overall dimensions | 6173 x2462 x2710 | Wheel base | 1940 + 1860 mm | |||||
| Front / rear wheel track | 1995 / 1800 / 1800mm | Front / rear suspension | 1245/1128mm | |||||
| Approach / departure angle | 26 / 35 ° | Maximum speed | 85 km / h | |||||
| Chassis Manufacturer | BEIBEN TRUCK | |||||||
| Cab | Configuration | NG80B a row and a half ( with sleeping berth ) , allowable 3 passengers , air conditioner | ||||||
| Color | Blue Red White , other color is optional | |||||||
| Engine | Model | WP10 . 340E32 | ||||||
| Emission | Euro 2 | |||||||
| Type | 6 cylinders , in - line , water - cooled , 4 - stroke , turbo inter - cooling , direct injection , exhaust valve brake , diesel engine | |||||||
| Rated power | 340hp , rated power speed 2200 rpm | |||||||
| Displacement | 9726 ml | |||||||
| Max . torque | 1250 N . m | |||||||
| Bore x stroke | 126 x 155 mm | |||||||
| Manufacturer | Weichai Power Co . , Ltd | |||||||
| Tire | Size | 12 . 00R20 steel wire tire | ||||||
| Number | 10 + 1 nos | |||||||
| Clutch | φ 430 diaphragm clutch | |||||||
| Fuel tank | 300L aluminum alloy | |||||||
| Front axle | 7 . 5 tons | |||||||
| Rear axle | 13 . 0 tons | |||||||
| Drive form | 4x2 | |||||||
| Suspension | Multi leaf springs | |||||||
| Rated voltage | 24V , DC | |||||||
| Transmissions | Gearbox 9T1680 , 9 speed forward 1 reverse | |||||||
| Steering device | Power assisted steering | |||||||
| Steering wheel | Left hand drive | |||||||
| Selective configuration | ||||||||
| If there is a slight change in the chassis parameters above , please take the actual product as the standard | ||||||||
| transit mixer truck structure parameters | ||||||||
| Loading capacity | 8 m3 | Tank material | 6 mm alloy steel | |||||
| Tank front head | 8 mm alloy steel | Reducer | Germany ZF | |||||
| Hydraulic pump | Germany REXROTH | Hydraulic motor | Germany REXROTH | |||||
| Radiator | KAIPENG | Color and Logo | Optional | |||||
| Standard configuration | Less than 7m3 : chassis , sub frame , mixer tank ( main tank 5mm alloy steel wear resistant material,front tank head 6mm alloy steel wear resistant material ) , domestic reducer , hydraulic pump , hydraulic motor , radiator , water tank , cleaning hose , feed port , discharge port , climbing ladder , air pressure water supply device . | |||||||
| Selective configuration | 1 , American SALI56 hydraulic pump , SALI63 hydraulic motor 2 , Italy P071 hydraulic pump , M063 hydraulic motor 3 , A full set of imported parts ( ZF3301 reducer ) | |||||||
| Selective configuration | Emergency high pressure oil hose(4 pieces),12m emergency oil hose(Italy),water cannon,large tool box,electric water supplying system.Italy Bonfiglioli/Italy PMP reducer,Italy PMP/Italy MESSOR/America EATON/America SAUER hydraulic pump,Italy PMP/America EATON/America SAUER hydraulic motor. | |||||||
| MOQ,payment terms , delivery terms , price | |||||
| MOQ | One unit | ||||
| Payment terms | T / T 30 % down payment , 70 % balance after inspection before delivery | ||||
| L / C is optional | |||||
| Inspection | Buyer ' s agent or third party inspection agency , the cost is paid by the buyer | ||||
| Delivery term | 20 days from down payment | ||||
| Documentation | Maintenance manual | ||||
| User manual | |||||
| Packing list | |||||
| Commercial invoice | |||||
| Certificate of origin is optional | |||||
| Spare parts list for purchase is optional | |||||
| Standard tools | With standard tools for chassis and transit mixer truck structure | ||||
| Packing | The main vehicle nude and covered with wax , attached parts and tools put into standard export box | ||||
| Other requirements | Please fill in here | ||||
| FOB / CNF / CIF | USD | ||||
Because exchange rate and ocean freight may be changed in near future , so the price is only valid for 15 days . Please confirm the price again with our company before placing the order , thanks. | |||||

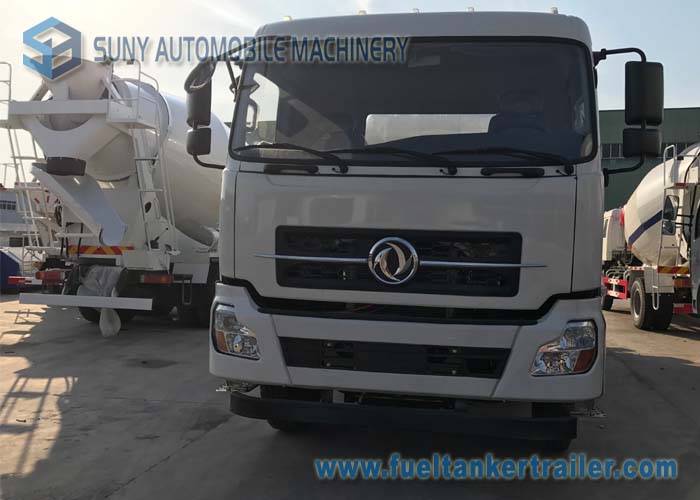

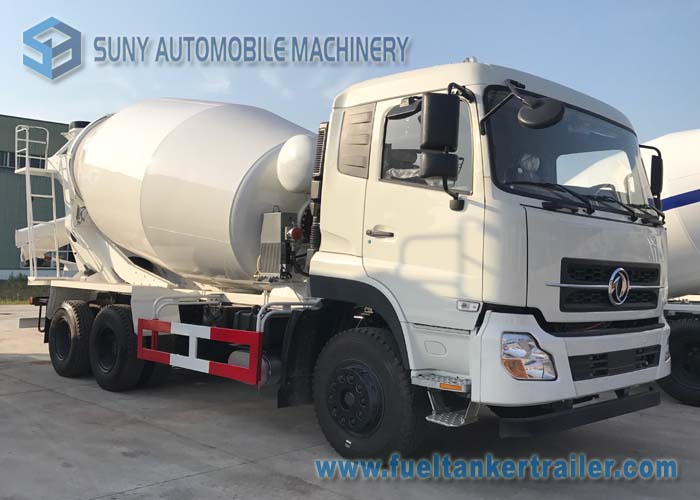

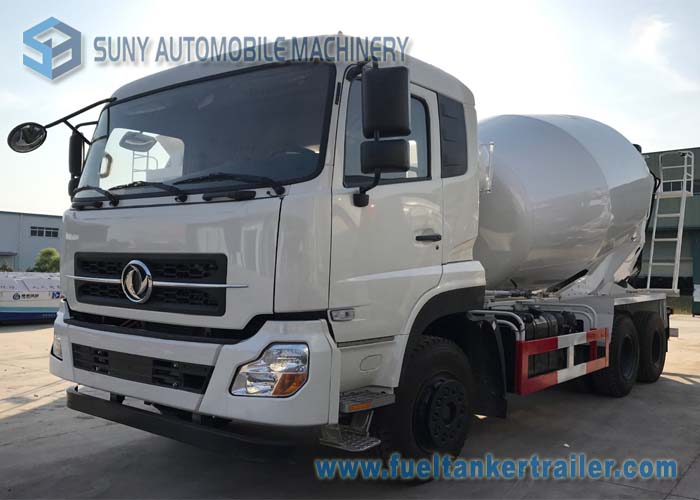

More Pictures:
|
