| Categories | Marine Ship Deck Crane |
|---|---|
| Brand Name: | HAOYO |
| Model Number: | HAOYO |
| Certification: | BV,CCS,ABS,NK,LR,DNV |
| Place of Origin: | China |
| MOQ: | 1set |
| Price: | USD130000/set |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50set per year |
| Delivery Time: | 100days |
| Packaging Details: | nude |
| Material: | Q345 |
| Color: | as required |
| Use Situation: | New |
| Operation formal: | Ground operation |
| Shipment Packaging: | According to The Export Standards |
| Trademark: | HAOYO |
| Origin: | Shanghai |
| Sling Type: | Wire Rope |
| Type of crane: | foldable boom crane |
| Company Info. |
| Shanghai HAOYO marine machinery |
| View Contact Details |
| Product List |

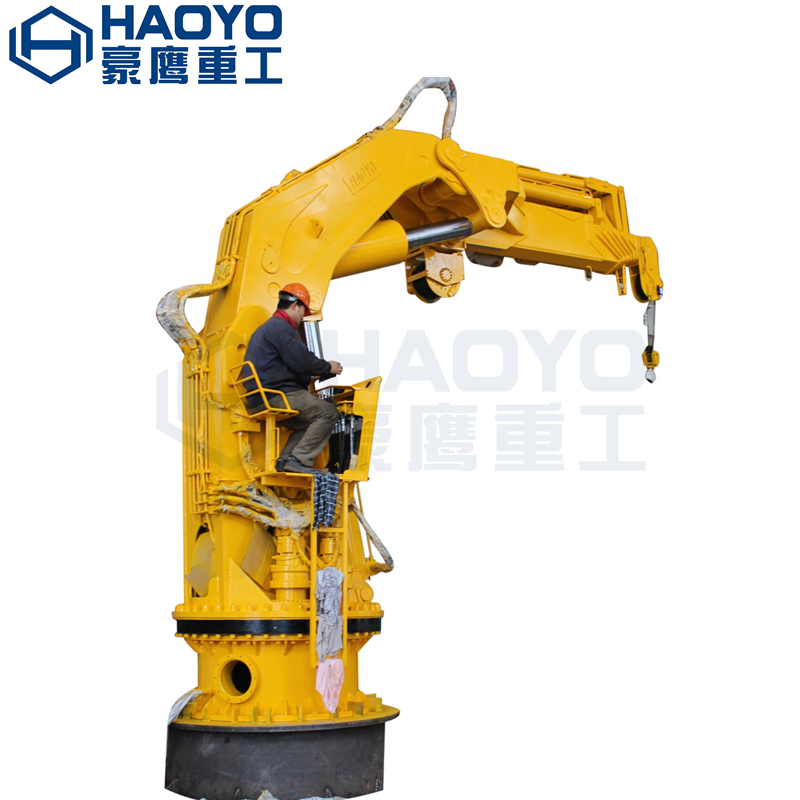

Foldable Telescopic Boom Mobile Favourable Price Port Crane
This Offshore Marine Ship hydraulic Foldable Telescopic&Knuckle
Boom crane
mostly used on oil tanker and port.the main parts use world famous brands promise
it has perfect performance.which has the function of easy convenient and reliable to
operation,flexible rotation,compact structure,and work very efficiency.

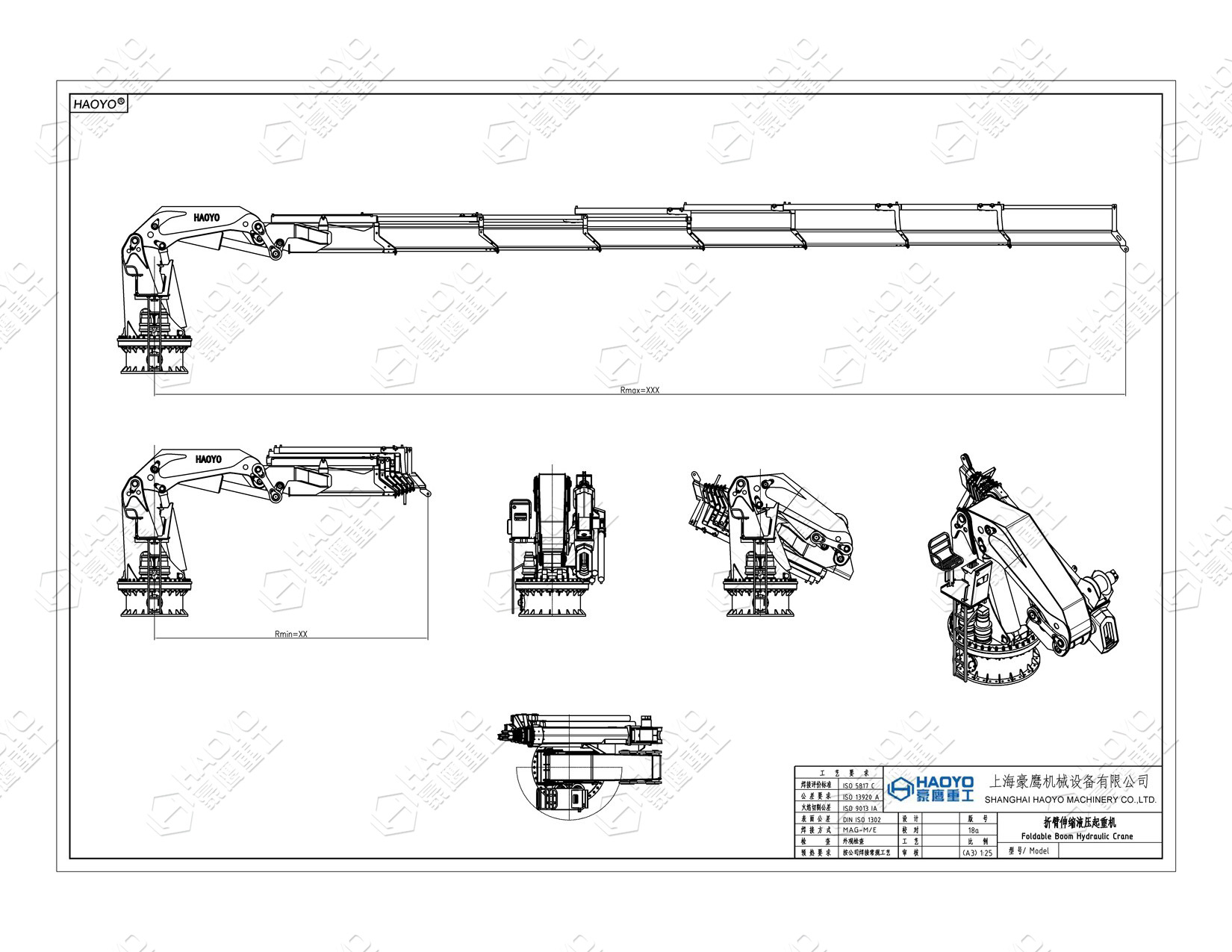

Drawing
Technical Parameters
| MODEL | Outreach (m) | Safety Load(kN) | Lifting Moment(kNm) | Total Moment (r/min) | Pedestal Diameter (mm) | Dead Weight (t) |
| ECK 150 | 8.0-12.0 | 2.1-1.1 | 132-168 | 241 | 885 | 2.8-3.2 |
| ECK 250 | 10.0-14.0 | 2.9-1.8 | 242-290 | 381 | 885 | 3.7-4.3 |
| ECK 350 | 12.0-16.0 | 3.6-2.3 | 370-430 | 603 | 1095 | 5.3-6.3 |
| ECK 550 | 14.0-18.0 | 4.7-3.2 | 573-660 | 980 | 1325 | 7.8-9.2 |
| ECK 750 | 14.0-18.0 | 6.1-4.2 | 749-855 | 1375 | 1490 | 11.5-12.8 |
| ECK1150 | 16.0-20.0 | 7.3-5.2 | 1040-1160 | 1765 | 1490 | 12.7-14.0 |
| ECK1450 | 16.0-20.0 | 9.0-6.4 | 1268-1440 | 2555 | 1770 | 19.2-23.0 |
| ECK 220 | 27.5 | 30,0 | 2200 | 4000 | 1800 | 25.0 |
| ECK 300 | 30.0 | 30.0 | 3000 | 5000 | 2065 | 27.5 |
| ECK 400 | 32.0 | 30.0 | 4000 | 6300 | 2050 | 30.0 |
| ECK 500 | 35.0 | 35.0 | 5000 | 8000 | 2240 | 35.0 |
| ECK 800 | 37.0 | 50.0 | 8000 | 11500 | 2271 | 55.0 |
| ECK1000 | 40.0 | 60.0 | 10000 | 14400 | 2536 | 70.0 |
| ECK1200 | 43.0 | 80.0 | 12000 | 18000 | 2550 | 100.0 |
| ECK1600 | 45.0 | 100.0 | 16000 | 34000 | 3166 | 150.0 |
| ECK2000 | 50.0 | 125.0 | 20000 | 44000 | 3987 | 200.0 |
| ECK2500 | 50.0 | 150.0 | 25000 | 50000 | 4000 | 220.0 |
| ECK3000 | 50.0 | 200.0 | 30000 | 60000 | 4500 | 275.0 |

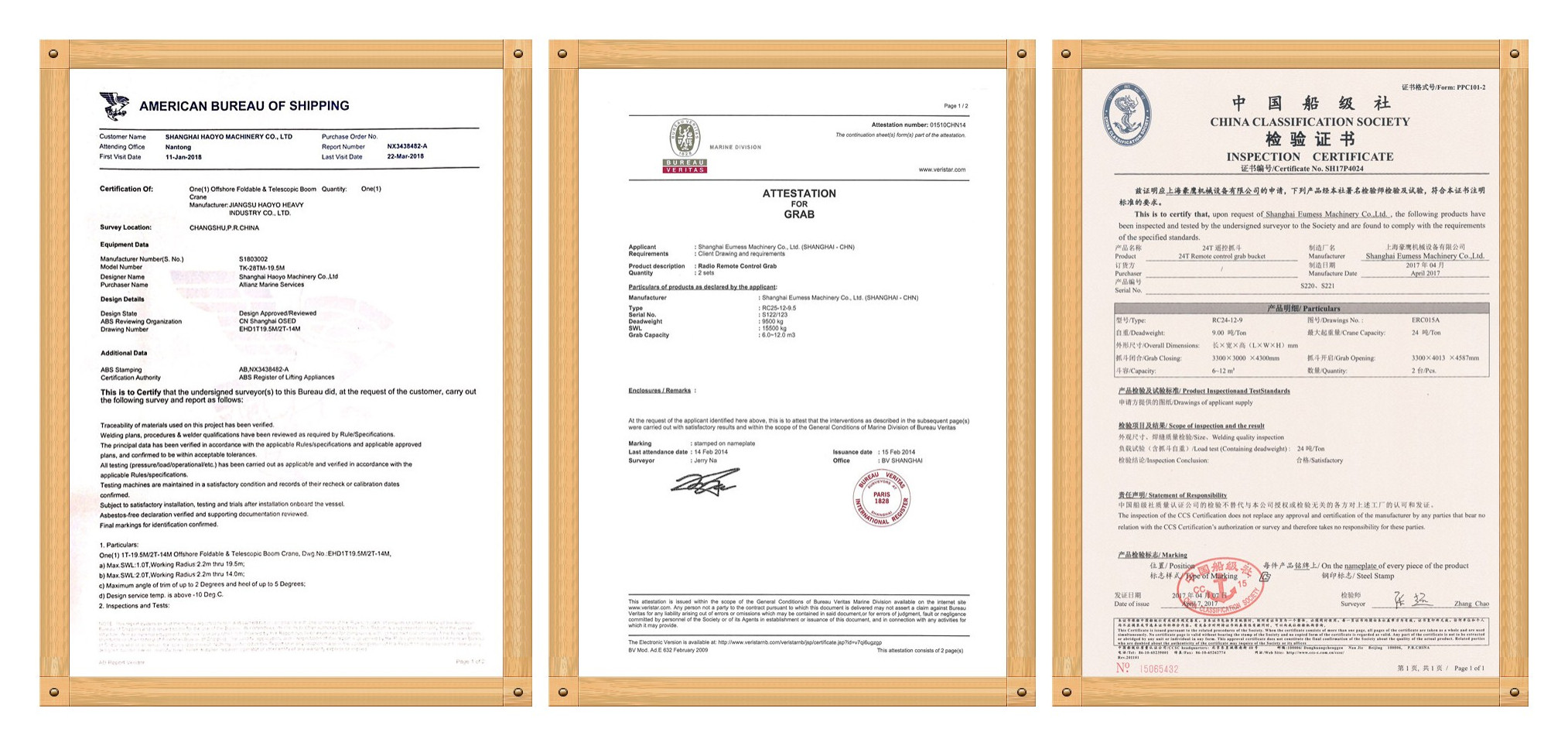

Certifications
Hydraulic Station
Packaging&Delivery
Shipping details
♦ check all the items and packaged well before loading.
♦ You can check loading or send picture to you.
♦ After shipping make documents for you,like B/L,packing list,voice
according
to your requirements.
About HAOYO
1.Professional:Sales & Design department is to create the right type for the
customer's
unique requirement. Work staffs in workshop are to ensure the
strong structure and
good perform in every detail.
2.Price:We have our own factory,so we can control the cost & delivery time.
3.Service:HAOYO after sales service provides timely and efficient
support,both to
our clients and partners.
Contact us
Miss Wang ---Foregin trademan
Hp: 0086-17521634863
Email: cindy@haoyogroup.com
OFFICE ADD: NO. 500, JIANYUNRD,PUDONG,SHANGHAI
FACTORY ADD: INDUSTRIAL PARK, CHANGSHU, JIANGSU
Web: www.haoyogroup.com
|
