| Categories | Flat Bed Semi Trailer |
|---|---|
| Brand Name: | GET/CIMC |
| Model Number: | 3253TJZP |
| Certification: | ISO 9001/TS16949 |
| Place of Origin: | China |
| MOQ: | 2 units |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 200 units per month |
| Delivery Time: | 30 working days |
| Packaging Details: | 3 units packed or 2 units packed |
| Trailer Name: | 20ft Flatbed Container Trucks |
| Chassis Brand: | Sinotruk HOWO Brand |
| Drive Type: | 6x4 |
| Model: | 3253TJZP-ZZ3257N3847B |
| Dimension LxWxH: | 9000*2496*3500Mm |
| Max. Payload: | 12,590Kgs |
| Wheel base: | 3825+1350Mm |
| Front / Rear Overhang: | 1500/1939Mm |
| Approach/Departure angle(°): | 19/23 |
| Suspenson: | Leaf Spring Mechinical , Optional : Air-Chamber , Bogie Suspension |
| Brake System: | Dual circuit electro-pneumatic WABCO brand brake system Optional : ABS ,EBS |
| Tyre: | 11.00R22.5 , Optional: 11.00R20,12.00R22.5 etc |
| Application: | Container Logistics, General Cargo Logistics |
| Container Logistics, General Cargo Logistics: | Side Pillars for Long-Round Shap Cargo, Front Protect wall |
| Company Info. |
| GENERAL EAST CO.,LTD |
| Verified Supplier |
| View Contact Details |
| Product List |

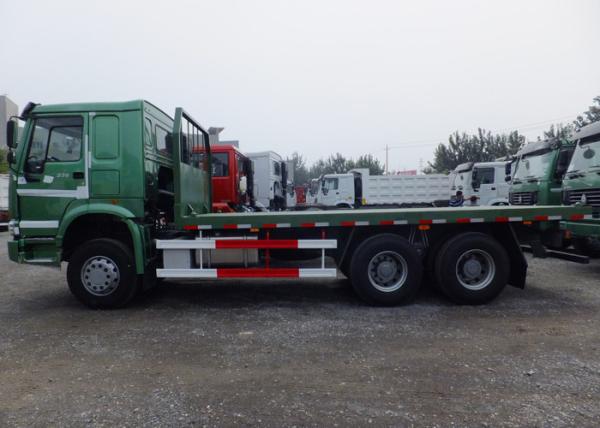

Flatbed truck with howo heavy duty truck chassis and twist locks
for cargos and 20ft container
This Truck is refitted at the base of the dump truck chassis to get
a good Stablilty and working powder, with twist locks can transport
the container, with flat bed can load other cargos, There is also
optins for the side rail walls if there is no wideth limitation.
Flatbed Semi-trailer is a most common type of Drop-deck trailers (or Step-frame Trailer) which have a floor that drops down a level once clear of the tractor unit; It have no front axles and coupling with towing vehicle by fifth wheel, this can make semi-trailers have a long continuous cargo area for longer objects (logs, pipe, beams, railway track, containers) than full trailers.
| Flatbed truck with howo heavy duty truck chassis and twist locks for cargos and 20ft container | 3253TJZP-ZZ3257N3847B | ||
| Dimension Parameter | External Dimensions(mm) | Length | 9000 |
| Width | 2496 | ||
| Height | 3500 | ||
| Dimensions of the flat bed(mm) | Length | 6000 | |
| Width | 2480 | ||
| Container Twist locks | 4 sets for 20ft container | ||
| Thickness of the checked steel Floor (mm) | 3mm | ||
| wheelbase(mm) | 3825+1350 | ||
| Tread (mm) | Front | 2022 | |
| Rear | 1830/1830 | ||
| Overhang Front/Rear (mm) | 1500/1939 | ||
| Approach/Departure Angle(°) | 19/23 | ||
| Weight Parameter | Vehicle Dead weight(kg) | 12590 | |
| Rated loading capacity l(kg) | 12410 | ||
| Gross vehicle weight(kg) | 25000 | ||
| Performance Parameter | Maximum driving speed(km/h) | 75 | |
| Recommended Configuration | Engine 4 stroke direct injection diesel engine | Engine Type | WD615.69 |
| Euro II emission standard | |||
| Rated power (Hp) | 336 | ||
| Displacement L | 9.726 | ||
| Fuel | Diesel | ||
| Transmission | HW15710 | ||
| Clutch(mm) | 420 | ||
| Axle Capacity( kgs) | Front | 7000 | |
| Rear | 9000*2 | ||
| Fuel Tank(L) | 300 | ||
| Chassis Cross-section(mm) | 300*80*8 | ||
| Suspension(Front,Back) | 9/12,10/12 | ||
| Tyre | 11R22.5*11 | ||
| HOWO heavy duty truck--the most advanced and most superior new
generation of heavy duty truck in China, with proprietary brand and
intellectual property right, was developed by CNHTC by applying the
world advanced heavy duty truck key technology aiming at the market
at home and area markets overseas. HOWO heavy-duty truck adopts the advanced key assemblies, which are reasonably connected by advanced technology. The arrangement of the complete vehicle is perfect; the main assemblies are harmonious, unified and reliable, which makes the complete vehicle have better performance on power, economical efficiency, reliability and environmental protection. HOWO heavy-duty truck is with luxury and great appearance; it is a combination of fortitude and streamline, sturdiness and elegance. It aims at world heavy-duty truck level on the ergonomic design like comfort ability, safety and accessibility. HOWO series is comprehensive with Euro2 and Euro3 engine equipped. Product range: Semi-trailer towing vehicle, goods vehicle, tipper, concrete mixing carrier and other special truck refitted on its chassis. Driving type: 4×2, 6×2, 6×4, 4*4, 6*6 Power range: 266PS - 410PS. Product highlight HOWO series heavy-duty truck built a new standard for domestic heavy-duty truck, aiming at world advanced heavy-duty design and manufacturing technology with incorporation of multi-advanced technologies. It is at domestic leading position in vehicle appearance, safety, comfort ability and ergonomics, and creates new driving experience on heavy duty truck; there are multi-types in this series which are selected by Ministry of Communication of the People's Republic of China as first batch recommended vehicle types. There are left hand and right hand driving types. | |||
|
