Phase Unbalance Current Monitoring Relay Integrative Structure For Compressors

Phase Unbalance Current Monitoring Relay Integrative Structure For Compressors

♦ Features

-- Integrative structure

-- Three-phase monitoring of overload, phase loss, phase unbalance

-- Powered by the measuring circuit

-- 1 NC SCR output contact

-- 4 LEDs for status indication

♦ Protective Functions

-- Overload

-- Phase loss

-- Phase unbalance

♦ Typical Applications

• Pumps • Fans

• Blowers • Motors

• Compressors

♦ Approvals

• CE • CCC

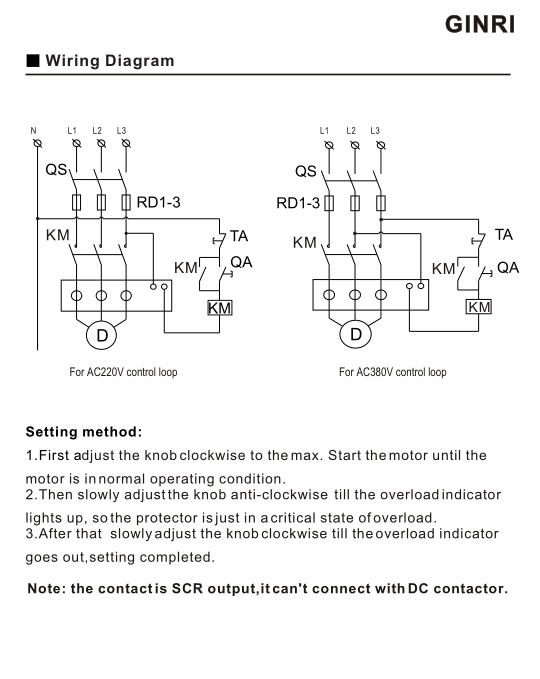

Normal operating conditions and installation conditions
1, the ambient temperature: -25 °C ~ +65 °C.
2, the working frequency: 45 ~ 60Hz.
3, working voltage: 24V ~ 380V.
4, the output interface load capacity: AC380V 1A, COSΦ = 0.3 ~ 0.4.
5, installation size: in line with JR16 thermal relay standards.
6, installation location: any angle of installation and protection class IP40.

The protector adopts the core-type current sampling detection technology, thyristor output, simple structure, convenient use, reliable operation, and has the advantages of no power consumption, long life, no arc generation during operation, etc. It is the ideal replacement for thermal relay in China. Motor protection products

The main cause of overload is the improper selection of the conductor cross-section, and the actual load has exceeded the safety current of the conductor.
Too many high-power devices are connected to the line, which exceeds the load capacity of the distribution line.

Lighting lines in important material warehouses, residences, and public buildings may have power lines that may cause long-term overloading of wires or cables, and when insulated conductors with a burn-proof jacket are used for laying on flammable or hard-to-burn building components. , should take overload protection. Line overload protection should adopt automatic switch. During operation, the setting current of the automatic switching long-delay operation should not exceed the long-term allowable load current of the line. If a fuse is used for overload protection, the rated current of the fuse melt shall not be greater than the long-term load current of the line. When the automatic switch is used as the protection device, its current release should be installed on the phase line in the neutral three-phase four-wire system; in the neutral three-phase four-wire system, It is allowed to be installed on two phases; ungrounded two-phase two-wire system allows installation on one phase.
In a communication power system, the function of automatically disconnecting the power supply due to a large load is called overload protection.

♦ Technical data

GINRI POWER AUTOMATION CO.,LTD. is a professional production voltage phase sequence protection device (and name: three-phase power monitor), and PLC output zoom Board, and smart type motor integrated protection device, and industrial parts manufacturers, technology development team in elevator industry, and refrigeration industry, and crane industry, environmental equipment, mechanical NC industry and the industrial following insurance industry, field has more than 10 years practice experience, has development out variety price economic and function excellent of products. CQC product quality system by China Quality Centre (3C) certification and CE certification, products in the manufacturing process in strict accordance with the ISO9001 quality assurance system requirements and professional technical and service support.

Voltage phase-sequence protection for many years (equipment, refrigeration equipment, crane (passenger and goods) elevators, control of DC power supply system (Cabinet) screens, precision air conditioners, room air conditioners, electric hoist, boiler equipment, laser equipment, parking equipment, cranes, compressors) and so on using the run.

PLC output amplifiers (environmental protection equipment, numerical control and automation equipment, automobile, plastic machinery, hydraulic machinery, ceramic foam machinery, woodworking machinery, machinery) and so on using the run.

Years of integrated Intelligent motor protector (power plants, paper mills, steel mills, aluminium plants, cement plants, sewage treatment plants, coal preparation plants, refineries, petrochemical plants), and so on using the run.

Product quality is stable and safe, reliable, and earned a solid market position in the market and a high reputation in the industry, received unanimous recognition and praise of our customers.

Ginri company always adhere to "scientific management as the core, the user needs for the Centre to focus on product quality, meticulous service is sincere," the spirit of enterprise, please call us from all walks of life, thank you!
