| Categories | Small LCD Panel |
|---|---|
| Brand Name: | SHARP |
| Model Number: | LQ035Q7DH06 |
| Place of Origin: | CHINA |
| MOQ: | 10PCS |
| Price: | Negotiable |
| Payment Terms: | T/T, T/T |
| Delivery Time: | 1-3workingdays |
| Packaging Details: | Orignal package |
| Partno.: | LQ035Q7DH06 |
| SIZE: | 3.5INCH |
| Resolution: | 240*320 |
| Brightness: | 225cd/m² |
| Backlight: | WLED |
| View angle: | 40/40/40/50 |

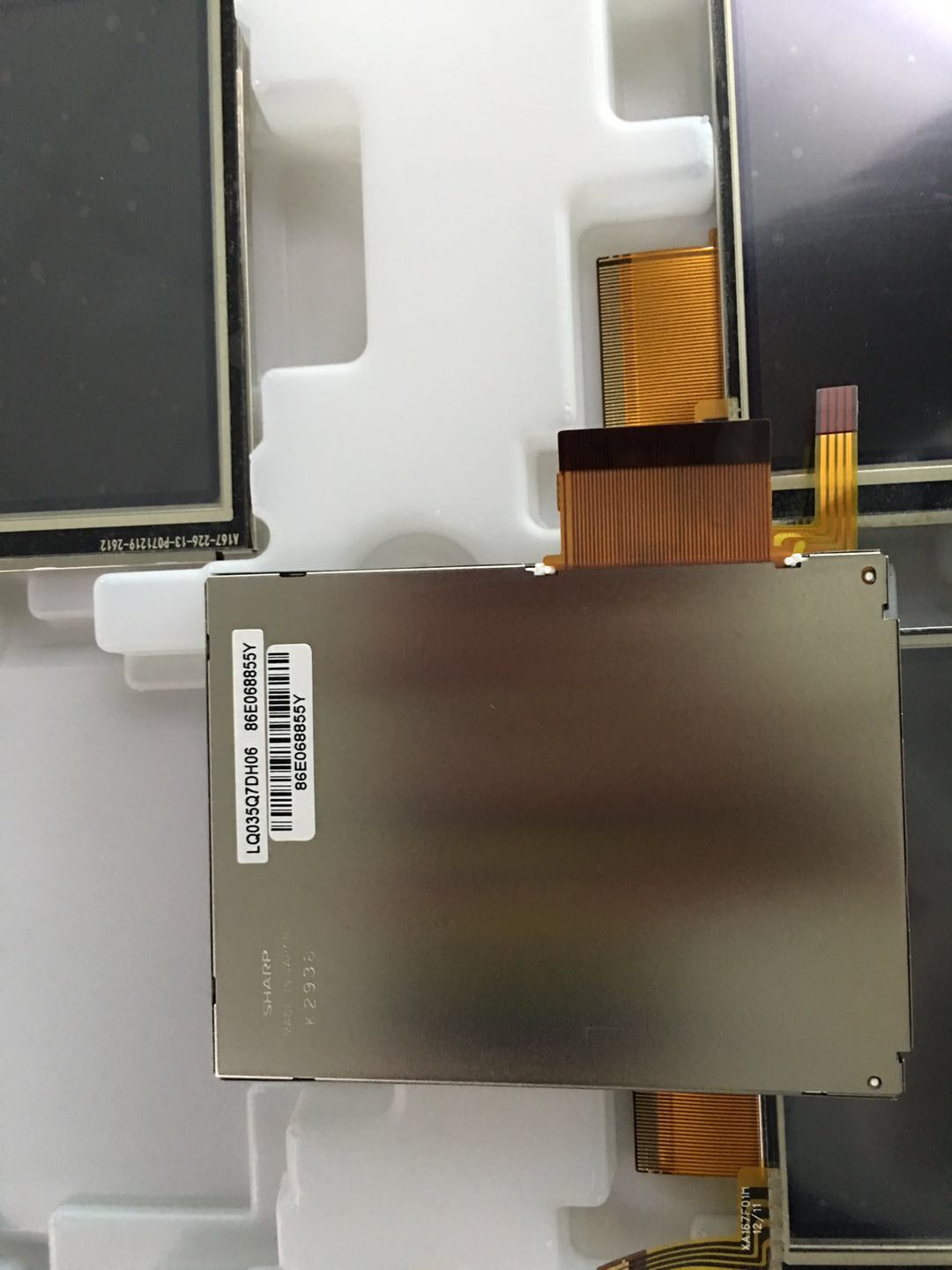

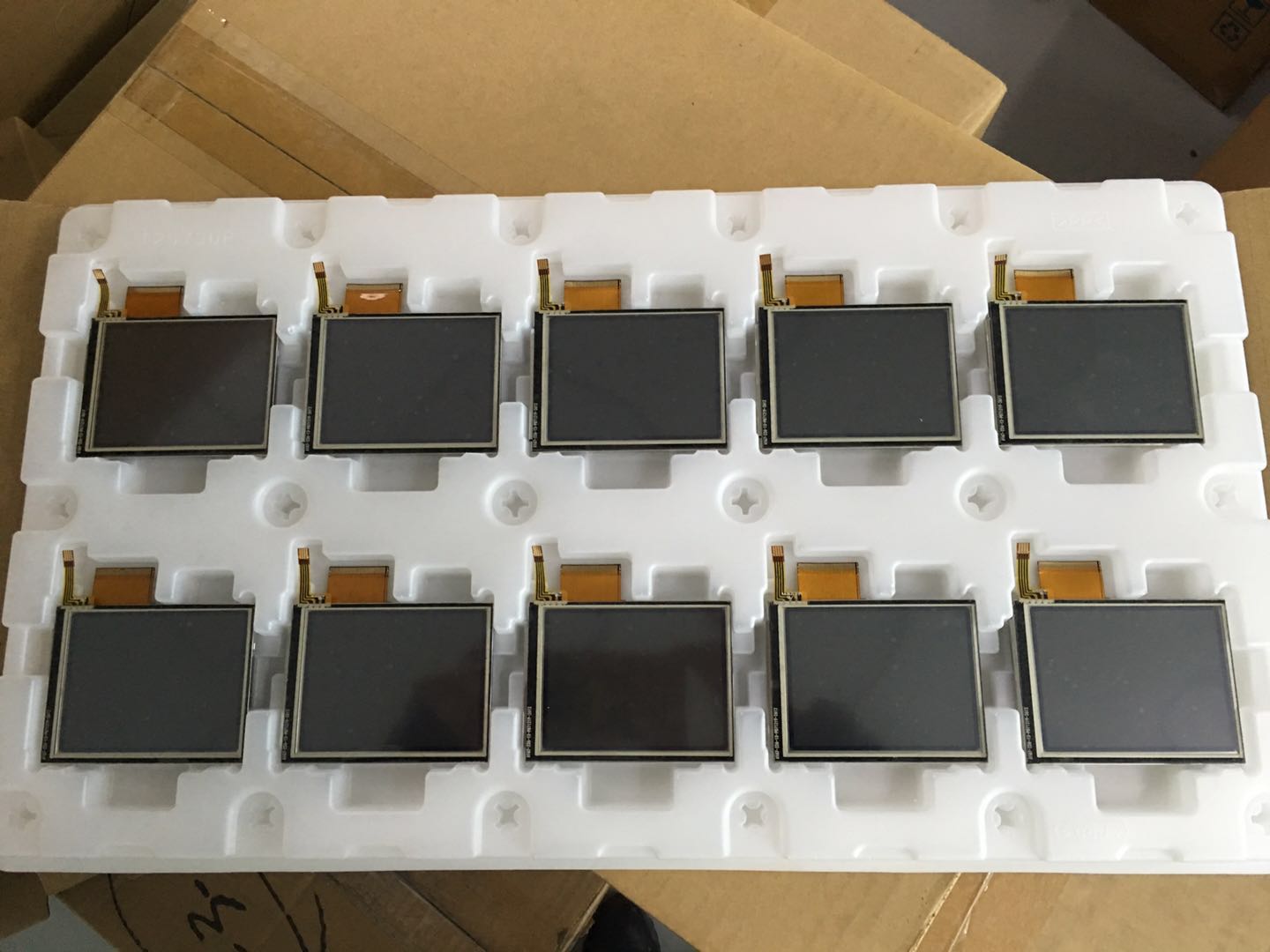

Resistive touchscreen 3.5inch 225cd/m² WLED 60Hz 240*320 small LCD PANEL (LQ035Q7DH06)
LQ035Q7DH06 is SHARP 3.5inch samll size LCD panel , the resolution is240*320;Brightness is 225cd/m² High ; view angle is 40/40/40/50 ; Frame is 60Hz ; Backlight is WLED ;with Embeded (4-wire Resistive) touch screen. the Storage Temp.: -25~ 80 °C and Operating Temp.: -10 ~ 70 °C.
It is Used for Handled products and PDA Products
| Manufacturer | SHARP | Model Namel | LQ035Q7DH06 |
| Screen Size | 3.5INCH | Screen Type | LCM , a-Si TFT-LCD |
| Pixel Format | 240(RGB)×320 (QVGA) | Response Time | 30/50 (Typ.)(Tr/Td) ms |
| Active Area(mm) | 53.64 × 71.52 (H×V) | Arrangement | RGB Vertical Stripe |
| Bezel Area(mm) | 57.4 × 75.2 (H×V) | Outline(mm) | 65 × 86.2 × 4.2 (H×V×D) |
| Luminance | 225cd/m² (Typ.) | Treatment | Hard coating (2H) |
| Viewing Angle | 40/40/40/50 (CR≥10 | Contrast Ratio | 800:1 (Typ.) (TM) |
| Good View at | 6 o'clock | Work Mode | TN, Normally White;Transflective |
| Color Depth | 262K | Signal Type | LVDS (1 ch, 6/8-bit) , Connector , 20 pins |
| Frame Rate | 60Hz | Voltage Supply | 5.0/3.3/15.0/-10.0V (Typ.) |
| Max. Ratings | Storage Temp.: -25 ~ 70 °C Operating Temp.: -10 ~ 70 °C | Backlight | Parallel RGB (1 ch, 6-bit) , FPC , 50 pins |
| Used for | Handled products ; PDA | Touch screen | Embeded (4-wire Resistive) |
1. Have our own stock ,kinds of panels . Fast reply RFQ immediately .
2. Ship parts from shenzhen or HK .
3. Safe transportation: Fast and safe transportation that ensures safety of your merchandise.
4. Technology advancement: Professional field applicatoin engineers (FAE) act as your exclusive technical consultant.
5. FQA :
PAYMENT : T/T ,Western union
Shipment : DHL ,FEDEX , TNT,UPS ,Sea , Air shipment etc.
Delivery time : 1-3 working days upon payment.
Products can replace free within 10 days after customers Delivered-Signed if it cannot use due to the quality problems, in the precondition of non-artificial damage. We pay for the freight only for the replacement delivery.
The warranty time is 3-12 months. Within Warranty period, products under serviceable,we will offer the repair service for free,customers afford the cost of the parts. Customers afford the freight.
Even if within the warranty period, if the following occurs, the repair service is not available.
1. The malfunction and damaged caused by incorrect use, the unauthorized repairs and alteration.
2. The damage caused by fire, flood, abnormal voltage, other natural disasters and secondary product damage.
3. The product malfunction caused by the fall and transportation failures after purchase.
4. The malfunction and damaged caused by the other barriers (man-made factors or external device).
Any problems in the after-sales service, please contact our agents or us directly.
|
