ABS Unshielded Inductive Proximity Sensor 20mm Detecting Distance Horn Type

Categories	Inductive Proximity Sensor
Brand Name:	KJTDQ
Model Number:	KJT-Y40/S-ZPK-X2
Certification:	CE,RoHS
Place of Origin:	Jiangsu,China
MOQ:	5pcs
Price:	$12.3-15.6/pc
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	120000 pcs/ mouths
Delivery Time:	3-5 work days
Packaging Details:	Carton package
Name:	square type inductive sensor
SN:	0-20mm
Operating voltage:	10-36Vdc
Max. load current:	200mA
Operating temperature:	-25~70℃
Material:	ABS

Contact Now

Add to Cart

Company Info.

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

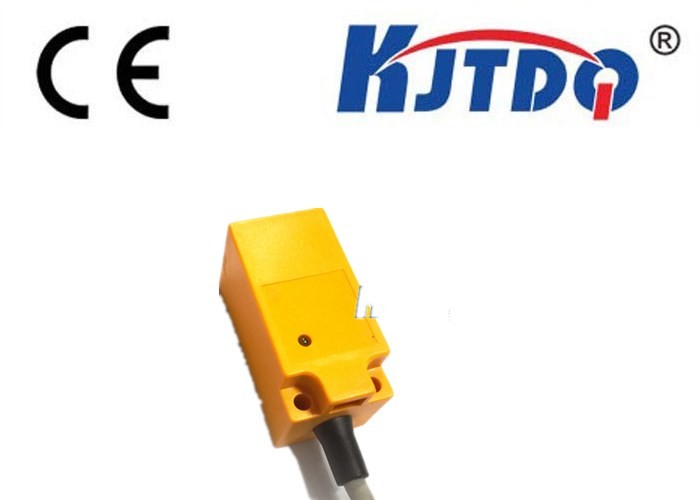

ABS Unshielded Inductive Proximity Sensor 20mm Detecting Distance Horn Type

ABS Unshielded Inductive Proximity Sensor 20mm Detecting Distance Horn Type

Quick details:

Name: Inductive proximity sensor

Output: Swicthing output

Disatnce: 0-20mm (Non-flush)

Mounting:Non-flush type

Power supply: 10-36Vdc.

Connection: Cable 2 m, 3 wires.

Specifocation:

Detection distance				20 mm+/-10%
Set distance				0~20mm
Standard detection object				Iron 50501
Response frequency				DC:0.5Khz AC:25Hz
Delay distance:				10% below of the detection distance
Detecting object				Magnetic object (the detection distance decreases when it is non-magnetic metal)
Supply voltage				DCtype:DC12-24V(6-36V)Impulse(p-p)10%below Actype:AC110-220V(36-250V)50/60Hz
Consumption current				N.P type:13mA below D type:0.8mA below A type:1.7mA below
Control output				N.P type:300 mA below D type:200mA below A type:400mA below
Loop protection				N.P.D type:reversal connection protection, surge Absorption, load short-circuit protection A type: surge absorption
Ambient temperaturehumidity				During operation,storage:individually-30~+65( No freeze,no drew),During operation,storage Individually35~95%RH
Insulation resistance				50 MΩ about(DC500 megameter) between charging and housing
Withstand voltage				AC1000V50/60Hz 1 min between charging and housing
Temperature influence				Temperature range-30~+65,at+23,+/-15% detection distance Temperature range-25~+60,at+23,+/-10% detection distance
Voltage influence				Inside+/-15%rated supply voltagerange,at rated supply voltage value
Protection sturcture				IP65
material				(Housing: ABS), Detection surface: ABS)

Application:

Proximity inductive sensors are mainly used in food production, packaging, agriculture, animal husbandry, plastics industry, woodworking, chemical industry, semiconductors, pharmaceuticals, etc.

Competitive Advantage:

1) Multiplicity appearance
2) Compact volume
3) High repeat orientation precision

FAQ:

Q: What's your warranty ? How about the quality of your sensors ?
A: 18 mouths .
We have the certification of ISO,CE,CCC.Our sensors can replace many famous brand sensors(BALLUFF,IFM,P+F,TURCK,OMRON,SICK,Contrinex,,KEYENCE,
BANNER,BAUMER,AUTONICS,etc) You can provide us the date sheet and we check whether can produce.

Q: How can we become your sale distributor ?
A: If you can sell our products USD 5,000 to USD 60,000 per year,you could be one of our distributors in your city or area.We have price protection policy in every area.
We still looking for more distributors,do you like to join us?
