EN/IEC 60601 certified 6W Max 12V 24V Detachable Medical AC Adapter 5V 1.2A Switching Power Supply

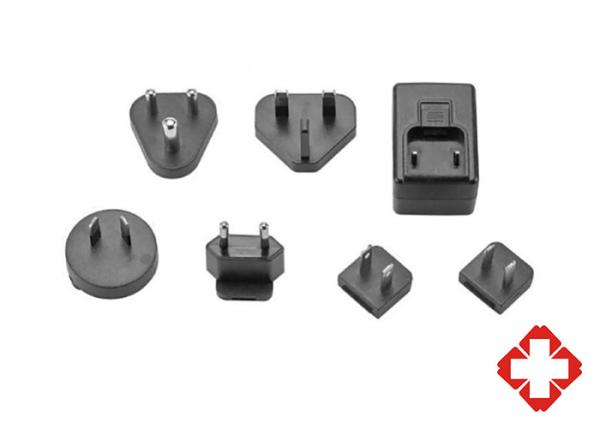

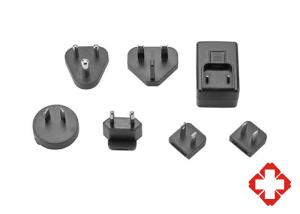

The APM05H series is a family of wall mount Medical AC adapters (wall adapters/wall warts) equipped with Interchangeable
plug that are designed to offer 6W continuous output power with a
single output of either 5V, 12V, or 24V (coming with a universal
input of 100~240 Vac).
APM05H are burn-in test conducted and offer class II operation, low
leakage current, over load protection (OLP), crowbar mode over
voltage protection (OVP), and 2 x MOPP (Means of Patient
Protection) classification to ensure the safety of the patient,
caregiver, and device to which the power supply is applied. The
series owns comprehensive protection designs along with
all-inclusive safety certifications and conforms to major
international safety standards including IEC/EN 60601-1. All
modules are fully compliant with the Level VI efficiency standard
and RoHS directive.
APM05H switching power supplies are designed for medical
applications and are ideal for breath detectors/testers, ECG, EEG,
portable medical devices, medical tablets, digital blood pressure
monitors, etc.
• Power Range: 4.5~6W
• Universal AC Input 100~240 VAC
• Frequency: 50~60Hz
• AC Plug type: U:USA, E:EU, K:UK, A: AU
• Output voltage available from 5~12 VDC
• 2 x MOPP Compliance, IEC/EN60601-1 Approval
• LPS Compliance
• Protections: Short circuit / Over voltage / Over current
• Energy Efficiency Level VI
• No Load Power Consumption ≤ 0.1W
• MTBF > 100,000 hours
• Safety: UL/cUL, UL60601, TUV EN60601, CB 60601, CE, FCC
• All models meet RoHS and WEEE
• Dimension(L x W x H): 57L x 39W x 34H (mm)
• Weight: 70g
Model NO. | MAX OUTPUT POWER | OUTPUT VOLTAGE | MIN LOAD | MAX LOAD | LOAD REGULATION | LINE REGULATION | RIPPLE & NOISE |
APM05HA | 6W | 5-18V | 0A | 1.2A | ±5% | ±1% | 100mV |
APM05HB | 6W | 9-12V | 0A | 0.66A | ±5% | ±1% | 180mV |
APM05HC | 4.5W | 9V | 0A | 0.5A | ±5% | ±1% | 180mV |
APM05HD | 6W | 9V | 0A | 0.67A | ±5% | ±1% | 180mV |
|
