| Categories | Industrial Filter Bag |
|---|---|
| Brand Name: | Eaton |
| Model Number: | W-1-PO2S-40L |
| MOQ: | 50 |
| Payment Terms: | T/T |
| Packaging Details: | standard export package |
| Place of Origin: | China |
| material: | wool felt |
| working temperature: | 300 degaree |
| size: | 7" x 32" |
| thickness: | 1.5mm |
| filter precision: | 1 micron |
| Company Info. |
| Hangzhou Philis Filter Technology Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

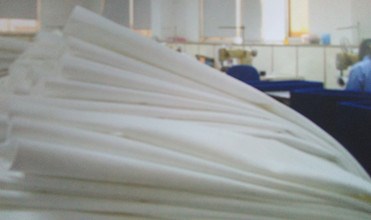

Filter bag is the most important part in dust collector which
influences the collection efficiency and working temperature.
Renewal of bags creates major cost in maintaining bag house, so the
lifetime of bags are the main factor affecting the cost and working
condition of bag-house.
There are three types: woven fabric dust bag, non-woven fabric bag
and compound filter material.
Three shapes: round type, flat type and customized type
Filtering method: inner filtering & outer filtering
round style(external filtration) | diameter | length | applicable for |
120 | 2000 2400 2800 3200 3600 4000 4400 4800 5200 5600 6000 | pulse jet bag house | |
130 | |||
152 | |||
200 | |||
round style(internal filtration) | diameter | length | applicable for |
180 | 6000 8000 10000 12000 | section reverse flow bag house | |
250 | |||
300 | |||
flat style | diameter | length | applicable for |
800 | 2000 3000 4000 5000 6000 | reverse flow bag house | |
900 | |||
envelope style | length width thickness | applicable for | |
1500*750*25 | side insert bag house | ||
advanced technology
complete equipment
no burrs or damaged parts
neither skip stitch nor broken stitch
the filter bag structure should meet the requirement of filtration and dust collecting in the corresponding baghouse. at the same time, it should be easy to install, have good sealing while having relevant filtration area and condition.
temperature,moisture level and chemical characteristic of air, as well as partical size, weight, shape, abrasive behavior, dust concentration, filtration velocity, cleaning style, emission concentration and working system of baghouse should be considered for media se
accurate and careful installation
reliable and effective dust cleaning
avoiding unexpected abnormal conditions
equipment maintenancelection.
|
