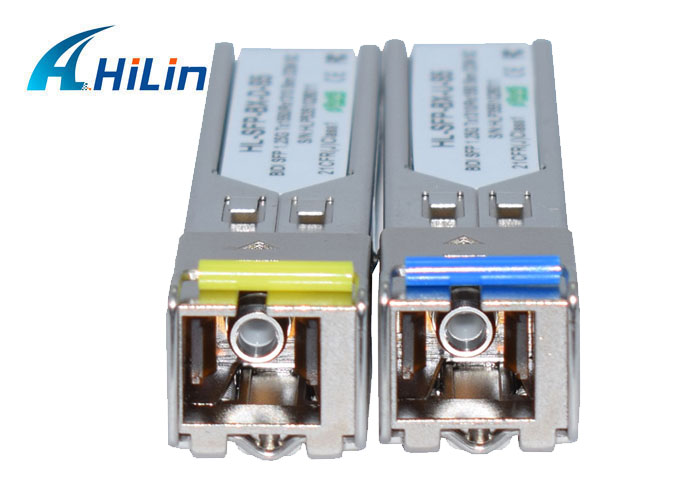

Single core Compatible Cisco SM BIDI SFP Fiber Module 1310nm / 1550nm SC Connector

Cisco Compatible SM BIDI SFP Transceiver Module 1310nm / 1550nm SC Connector

Hilink WDM or BIDI small form-factor pluggable (SFP) is a compact optical transceiver, module used in optical communications for both telecommunication and data bidirectional communications applications. BIDI 1G optics are a small form factor pluggable module for Single Mode Fast Ethernet, Gigabit, Fiber Channel, SDH/SONET applications.

A.Type: Tx1310nm /Rx1490nm and Tx1490nm /Rx1310nm
B.Type: Tx1310nm /Rx1550nm and Tx1550nm /Rx1310nm
C.Type: Tx1490nm /Rx1550nm and Tx1550nm /Rx1490nm

D.Type: Tx1270nm/Rx1330nm and Tx1330nm/Rx1270nm

Features:
Up to 1.25 Gb/s bi-directional data links
Hot-pluggable SFP footprint
1310nm FP Transmitter and 1490 PIN Receiver

1550 DFB Transmitter and 1310 PIN Receiver

Single LC/SC connector
Low power dissipation
Metal enclosure, for lower EMI
Up to 3km point to point transmission
Single 3.3V power supply

Compliant with SFP MSA Specification

Average Output Power: -15~-6dBm

Receiver Sensitivity: -20dBm

Operating temperature range: 0°C to 70°C

Applications:

• Gigabit Ethernet
• Fiber Channel
• WDM Application
• Telecommunication
• PON Network

Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA). They simultaneously comply with Gigabit Ethernet as specified in IEEE STD 802.3 and 1x Fibre Channel as defined in FC-PI-2 Rev. 10.0 .They are RoHS compliant and lead-free.

BiDi(WDM) Transceivers
