Categories | Medium Duty Steel Rack |
---|---|
Brand Name: | JIEBAO |
Model Number: | JB-10 |
Place of Origin: | China |
MOQ: | 10 Sets |
Price: | Negotiation |
Payment Terms: | TT, LC, Western Union, MoneyGram |
Supply Ability: | 5000sets per months |
Delivery Time: | 10-15 work days after received deposit |
Packaging Details: | Carton Package |
Materials: | Cold Rolled Steel, Q235 |
Color: | Blue and Orange Color |
Load Capacity: | 700-4000KG/Layer |
Columns: | 100 x 70 x 2.2mm |
Beam: | 100 x 38 x 1.5mm |
Type: | Assembly or Disassembly |

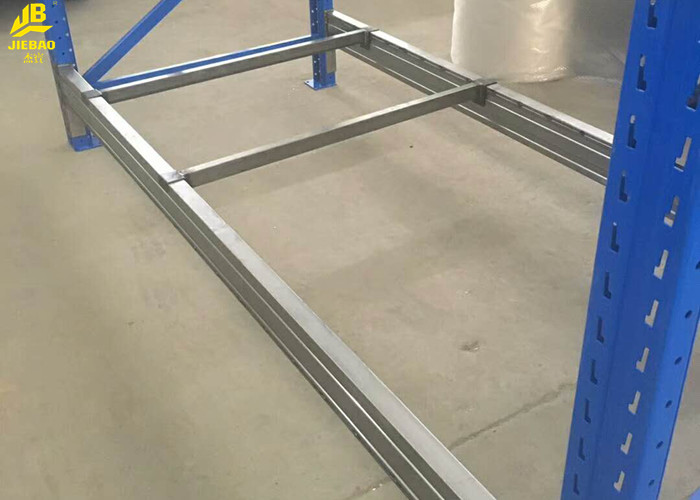

Blue Color Custom Size Supermarket Industrial Pallet Racks 5 Hooks Easy Assembly
Product Details:
Length | Width | Height | Load Weight |
2300mm | 900mm | 2000mm | 700-4000kg/layer |
2500mm | 1000mm | 2500mm | |
2700mm | 1100mm | 3000mm | |
3000mm | 1200mm | 3500mm | |
3300mm | 4000mm | ||
3600mm | 4500mm |
Characteristics:
JB-10 storage rack can be made based on the height of the warehouse. So it can make good use of warehouse. It's easy to assemble and disassemble, as well as transporation.
Feature:
JB-10 are using 100% bolted connection and flexible design, a variety of frame heights up to 6000mm high. Compatible frames and galvanized steel are stronger than welded systems.
After alkaline degreasing, acid rust, phosphate treatment, over 10 pre-treatment process, using automated drying high-temperature production line to drying and powder curing, so that the shelf surface have perfect leveling and uniform thickness.
![]() |
