| Brand Name: | GFUVE |
| Model Number: | LZCK322-10 |
| Certification: | CE, UL, ISO9001 |
| Place of Origin: | BEIJING CHINA |
| MOQ: | 3PCS |
| Price: | Negotiable |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50000PCS/MONTH |
| Delivery Time: | 3-7days |
| Packaging Details: | Standard Export Box |

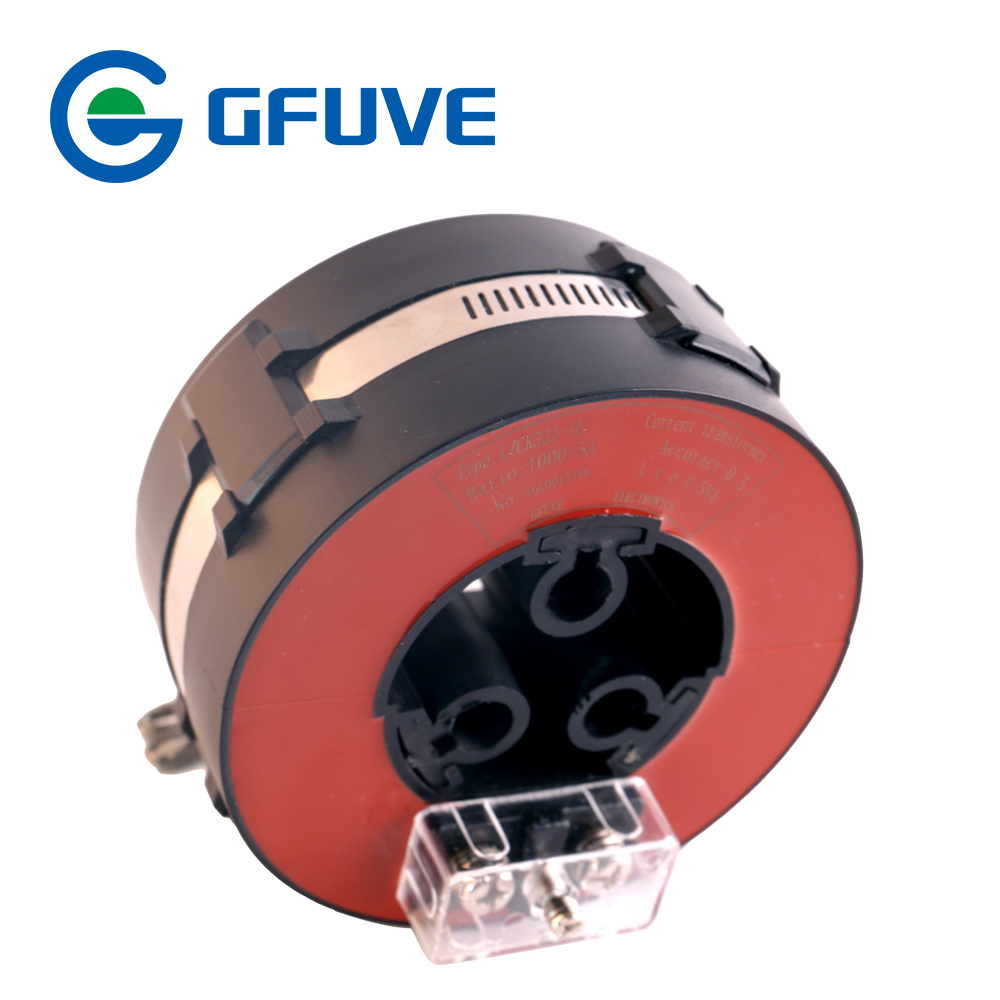

| Name: | split core current transformer |
| Rated primary current: | 30-600A |
| Rated secondary current: | 5A or 1A |
| Rated load: | ≤10VA |
| Standards: | IEC60044-1; IEC 61869-2; ANSI C57.13; NTC 2205; GB1208-2006 |
| Ratio: | 100-1000A/5A or 1A |
| Accuracy: | 0.5% |
| Burden: | 2.5-10VA |
| Diameter: | 50mm |
| Color: | red & black |
IDescription
LZCK series split core current transformer is suitable forcurrent
measurement and microcomputer protection of electrical equipment in
10KV and 35KV AC power system.It is widely used in compact fully
insulated ring network switchgears such as ABB-Safe Ring/Safe
Plus...and cable distribution boxes.The transformer can be directly
installed at the inlet andoutlet cables.The slice is imported
silicon material. Thesemicircular ring core and secondary windings
arevacuum poured by insulated resin.
Ifeatures
Be sure to the type, current ratio, accuracy class, rated load and
use of the products when
you plan to make a order. Special specifications could be
customized.All kinds of different
specifications and parameters current transformers can be made
according to your needs.
P1, P2 is primary polarity terminal, S1, S2 is secondary polarity
terminal.
P2, S2 is homonymous terminals (subtractive polarity).
| Technical parameters | |
|---|---|
| Standards | IEC60044-1; IEC 61869-2; NTC 2205; GB1208-2006; ANSI C57.13 |
| Accuracy Class | 0.5S, 0.5%, 1%, 3% |
| Range of primary rated current | 100-1500A |
| Range of Rated load | ≤10VA |
| Rated frequency | 50/60Hz |
| Rated secondary current | 5A or 1A |
| Rated short-time thermal current | 40kA, 1S |
| Rated continuous thermal current | 150%I1n |
| Secondary winding power frequency withstand voltage | 3kV, 1min |
| Safety Factor Rating | (FS) <10 |
| Output signal | 1A, 5A, 333mV, 1V or 5V(customized) |
| Cable length | 2.5m, 5m, 10m(customized) |
| Flame retardant ABS plastic shell inside, jaw waterproof apron. | |
| Mechanical parameters | |
| Aperture (mm) | Φ55 |
| Dimensions (W×D×H) (mm) | 180×138×52 |
| Weight (kg) | 2 |
| Working conditions | |
| Operating temperature | -35°C to +65°C, not exceeding +40°C |
| Storage temperature | -40°C to +70°C |
| Ingress Protection | IP65 |
| Environment | outdoors or indoors |
| The Height of above sea level | 0- 3000m |
| Conditions | No existence of severely begrimed, erosive and radioactive gas in the air. Continuous working under the rated current is allowed. |
| Type | LZCK322-10 | LZCK322-10 | ||||
|---|---|---|---|---|---|---|
| Purpose | Measuring current transformer | Protection current transformer | ||||
| Ratio | Accuracy class and rated load(VA) | Accuracy class and rated load(VA) | ||||
| I1/I2 | 0.5 | 1 | 3 | 10P15 | 10P10 | 10P5 |
| 30/1 | 1 | 1.5 | ||||
| 50/1 | 1 | 2 | 1.25 | |||
| 75/1 | 1.5 | 2.5 | 1 | 2 | ||
| 100/1 | 2 | 2.5 | 3 | 1.5 | 2.5 | |
| 200/1 | 2.5 | 1.25 | 2.5 | |||
| 300/1 | 3.75 | 1.25 | 2.5 | |||
| 400/1 | 7.5 | 1.25 | 2.5 | |||
| 500/1 | 10 | 1.25 | 3 | |||
| 600/1 | 10 | 1.5 | 3 | |||
| 50/5 | 2.5 | |||||
| 75/5 | 2.5 | |||||
| 100/5 | 2.5 | |||||
| 200/5 | 3.75 | |||||
| 300/5 | 5 | |||||
| 400/5 | 7.5 | 2.5 | ||||
| 500/5 | 7.5 | 2.5 | ||||
| 600/5 | 10 | 3.75 | ||||
| Model | Primary rated current | Rated load | Aperture (mm) | Description (mm) | Weight (kg) | Material | Water-proof |
|---|---|---|---|---|---|---|---|
| LZCK-55 | 100-1500A | ≤10VA | φ55 | 180×138×52 | 2 | PC | IP65 |
| LMCK185-10 | 300-3000A | ≤25VA | φ185 | 350×283×55 | 4.5 | PC | IP65 |
| LZCK310-10 | 300-600A | ≤10VA | φ50 | φ50 x φ110 x 32 | 1 | Resin | silicon case (option) |
| LZCK322-10 | 30-600A | ≤10VA | φ50 | φ50 x φ110 x 52 | 1.6 | Resin | silicon case (option) |
| LZCK350-10 | 20-600A | ≤25VA | φ50 | φ50 x φ110 x 105 | 3.1 | Resin | silicon case (option) |
| LZCG530-10 | 30-600A | ≤20VA | φ45 | φ45 x φ120 x 65 | 2.1 | Resin | silicon case (option) |
Beijing GFUVE Electronics Co., Ltd. was established in 2005. It combined science, industry and trade together as one high-tech enterprise. GFUVE mainly produces high voltage ammeter recorder, IEC61850 test suite software, energy meter test equipment, reference standard meter, phantom load power source, relay test set, CT PT analyzer, transformer test, High voltage test set, electrical calibrator, power analyzer and intelligent digital meter, transducer, current probe, split core ct, current transformer, voltage transformer and handheld terminal etc.
GFUVE is a leader manufacturer of energy meter test products and high voltage ammeter recorder in China. It is professional in energy meter test system, energy meter portable tester and related accessory. The product of high voltage ammeter recorder develops very quickly in the market. Our company has achieved certification to ISO9001. The products are sold to over 30 provinces in China and exported to overseas including South America, Middle East, Southeast Asia and Africa.
We have been contributing ourselves to developing the durable and stable products for the usage of the power system. Contact us now for further business relationship. We are here to provide you the best service.
