Voltage Output Split Core Current Transformer , Miniature Current Transformer Double Clamp

Class 0.2 150mm Split Core Current Transformer with Voltage Output

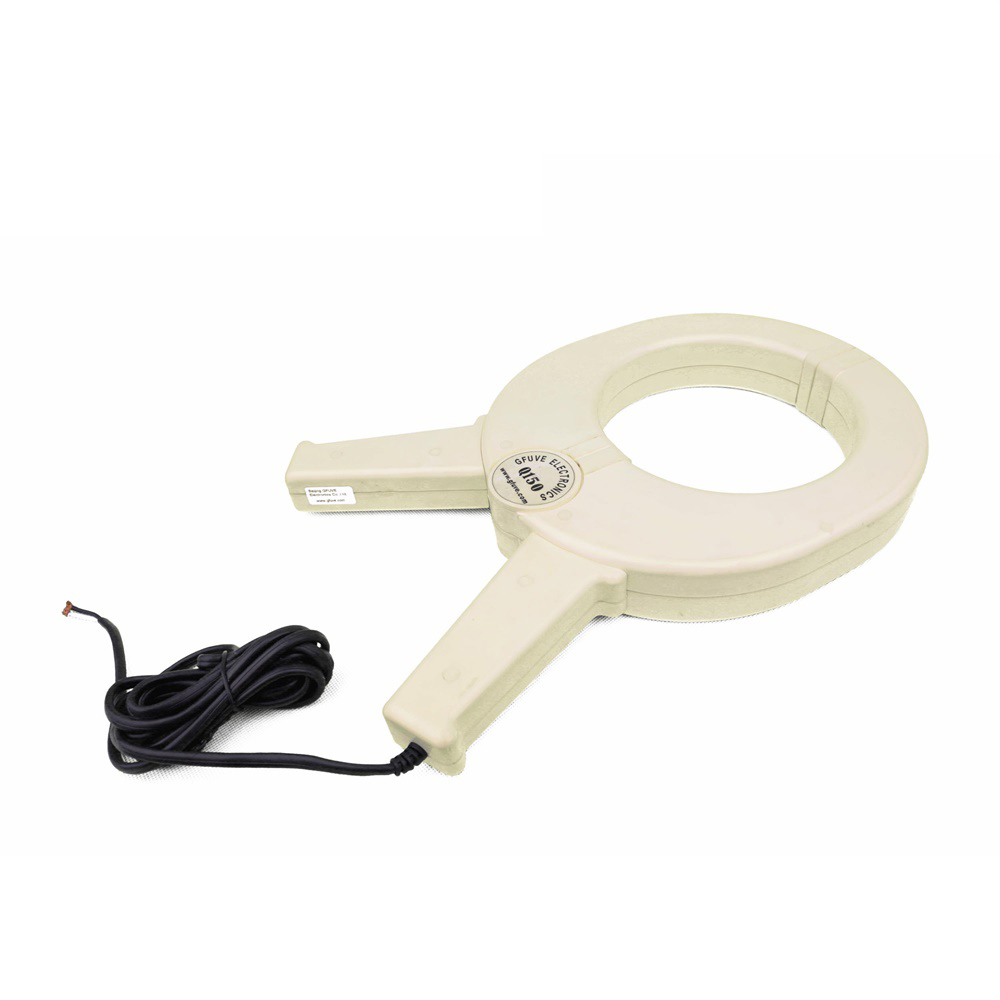

The GFUVE Split Core Current Transformer Q150-1 designed for capturing current signals on line. Q150-1 provides accurate measurement and stable linearity. It is simple-to-use clip-around Current Transformer. Current Transformer Q150-1 AC current measurement range is upto 5000Aac with voltage output or current output.

Features:

Holding wire diameter: φ150mm

Dimension: 229mm×364mm×44mm

Load capacity: ma output ≤4ω,

1a output 0.1ω, 5a output 2.5va

Installation: clamp type

Output mode: lead output

APPLICATION:

1. Electric energy meter calibrator (on site)

2. Double clamp type ground resistance tester

3. Double clamp type phase volt-ampere meter

4. Digital multi-meter

5. Multi-function energy meter

6. Oscilloscope

7. Power quality analyzer

8. Matched instruments

9. Calibration instrument on site

Parameter

FAQ, following questions will help you to select the matched probe for your applications.

1. Please determine if you are measuring AC or DC?

GFUVE Q150-1 is for AC measurement.

2. What is the maximum current you will measure?

Split Core Current Transformer Q150-1 is 6000A as maximum current.

3. What size conductor will you clamp onto? This parameter determines the probe jaw size needed.

Q150-1 can clamp conductor is φ150mm

4. What type of probe output do you need or can you work with (mA, mV, A, AC, etc.)?

Q150-1 Split Core Current Transformer can customize output with mA.

5. What is the working voltage of the conductor to be measured?

GFUVE current clamp should be used below 600 volts

6. What type of termination do you need: jacks, leads or BNC?

Current Transformer Q150-1 standard has 2.5meter leads. We can offer jacks or BNC… as options.

7. If you cannot find information you need or would like assistance, contact us today. We have designed many more probes than those shown in this catalog, and we manufacture in Beijing, China.

Photos

Beijing GFUVE Instrument Transformer Manufacturer Co., Ltd. was established in 2008. It combined design, manufacturing and sales together as one high-tech enterprise. GFUVE Instrument Transformer company mainly produces less than 35kV current transformer and voltage transformer, split core ct and current clamp models etc.

GFUVE is a leader manufacturer of split core current transformer products in China. It is professional in current transformer, potential transformer and related accessory. The product of outdoor split core current transformer develops very quickly in the global market. Our company has achieved certification to ISO9001. The products are sold to over 30 provinces in China and exported to overseas including South America, Middle East, Southeast Asia, Australia and Africa.

Please contact us now for further business relationship. We are here to provide you the best service and the best product.
