Automatic Plastic Granules Making Machine For Recycled PET Bottle Chip Flake SJSL65B

SJSL65B Recycled PET Bottle Chip Flake Plastic Pellet Making Machine

Nanjing Yongjie started to make pet plastic recycling machine since 2005, beside for pet pellets making machine, our twin screw extruders are widely used for enforcing modification, degradab le master batch, anti-flame master batch etc.

Quick details

Power:90kw,others available

Screw diameter:62.4mm

Barrel diameter:63mm

L/D:40:1

Output:200-300kg(500-600kg by our SJSL95)

Cutting way: water bath cooling system

Warranty:one year

Lead time:45 days after deposit

Revolution speed:300rpm

Revolution ratio:5:1

Special design : first weak shear of the screw , second increased vacuum system, lower revolution speed of screw as way to maximum decrease the loss of IV of pet

SJSL65 Water Tank Auxiliary Machine

Die head

1).Made of 38CrMoAlA, which has been treated by the azotizing on the surface, HV=950~1100.

2). Hole: 15-∮3.8.

Water tank

1).Width=340mm, depth=200mm,length: 4000mm;

2).Three rubber roll brackets.

Dryer

1). Power: 2.2kw;

2). Made of stainless steel.

Pelletizer

1). Power: 4kw, inverter speed regulation 0-1480rpm;

2). Capacity: 300kg/h;

3). Pineapple cutting way;

4). Air-actuated granulating.

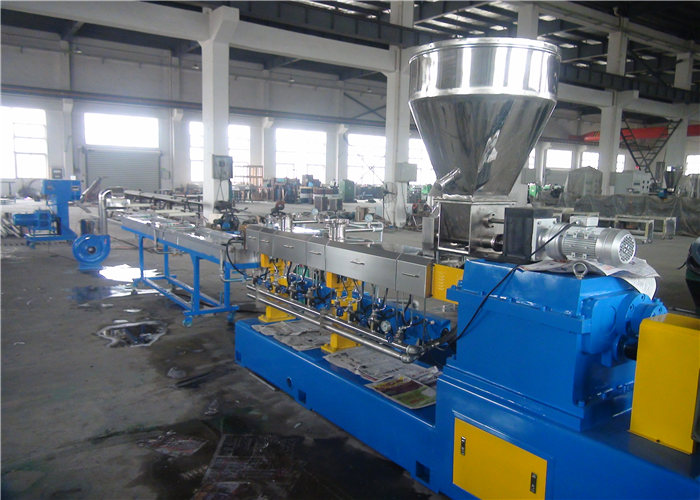

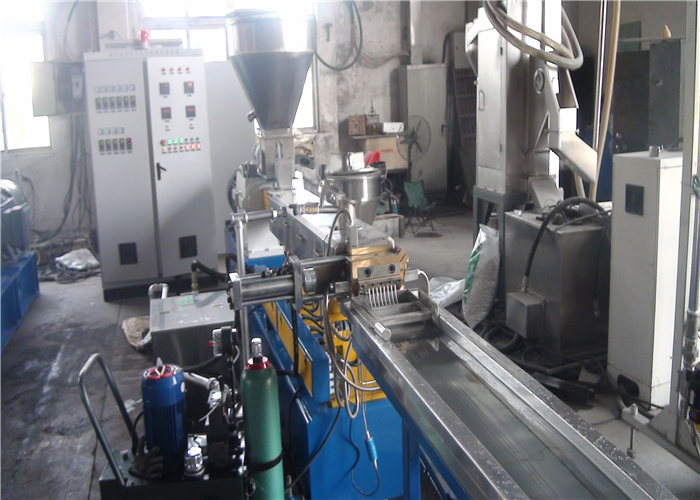

Photo of SJSL65B Recycled PET Bottle Chip Flake Plastic Pellet Making Machine

Main technical data of various model of twin screw extruder pelleitizing machine

Main advantages of our recycled PET flake granulating machine

1. Lower IV loss due to good screw array and wear shear of it

2. Clean and white color

Nanjing Yongjie Chemical &Machinery Equipment Co., LTD, founded in 2001, is specialized in R&D, production and service of plastic pelletizing machine. Our manufacturer covers an area of 20,000 square meters on our own land, with monthly output of machine 20sets. The factory certificated to CE, ISO9001:2008.

The company concentrates on research, development and production of “high level, accurate, sophisticated series of parallel co-rotating “cordwood” twin screw extruder, single screw extruder, two stage extruders and automatic plastic pelletizing machines. We have provided customers first-class products with “strong torque, high production, energy conservation and environmental protection products. The special designed screw structure has realized successfully for “one step shaping” on many kinds of products, and is widely used in aluminum composite plate, XPS foaming plate, WP plate, PP, PE sheet industry, etc.

“Yongjie machinery” with its outstanding product performance, stable quality, excellent integrated service, extensive experience in the industry, has exported extruders since 2005, and our machines have won good reputation among our clients in Southeast Asia, The Middle East, South America, North America, Europe and Africa etc.

“Everlasting Service, Palmary Quality.” is Yongjie people’s unremitting chasing aim.
