| Categories | Fiber attenuator |
|---|---|
| Brand Name: | INTEPON |
| Model Number: | Adapter type fiber attenuator |
| Certification: | RoHs, ISO9001:2015 |
| Place of Origin: | China |
| MOQ: | 1 |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 800~1000pcs per month |
| Wavelength: | 1550nm |
| Type: | SC adapter type |
| Attenuation tolerance: | ±10% |
| Attenuation: | 1dB, 3dB, 5dB, 10dB |
| Repeatability: | ≤0.1dB |
| Exchangeability: | ≤0.2dB |
| Durability: | 1000 mating, loss ≤0.2dB |
| Company Info. |
| David fiber device Ltd |
| View Contact Details |
| Product List |

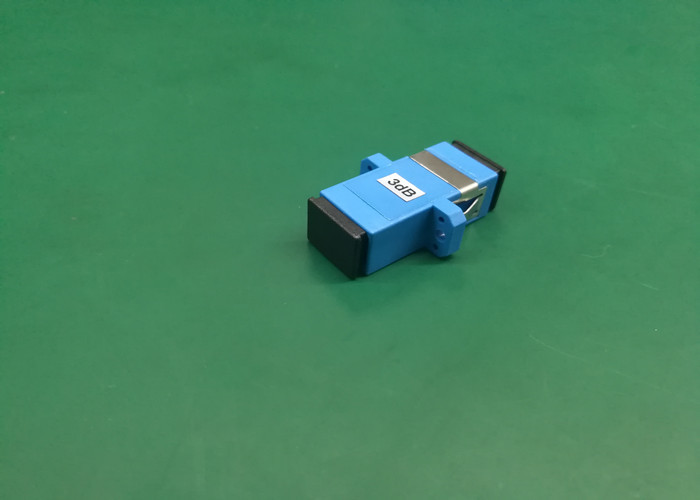

Fiber attenuator, 1550nm, SC adapter type, 3dB, 5dB, 10dB fixed attenuation.
The attenuation of the adapter fiber attenuator is fixed. It is different from the in-line variable attenuator.
The appearance of it likes the standard adapter but it's not the same thing. The fixed attenuator can be used for fiber patch cord in a light link.
Features
Structure: Adapter type
Attenuation: 1dB, 3dB, 5dB, 10dB
Applications
Testing instruments
Connection between fiber components
CATV
FTTx
| Specifications | ||
| Parameters | Unit | Specification |
| Operating wavelength | nm | 1550 |
| Attenuation tolerance | ±10% | |
| Exchangeability | dB | ≤0.20 |
| Repeatability | dB | ≤0.1 |
| Attenuation | dB | 3, 5, 10 |
| Type | / | adapter type |
| Durability | dB | 1000 mating, loss ≤0.2dB |
| Operating Temperature | C | -20 to +70 |
| Storage Temperature | C | -40 to +85 |
