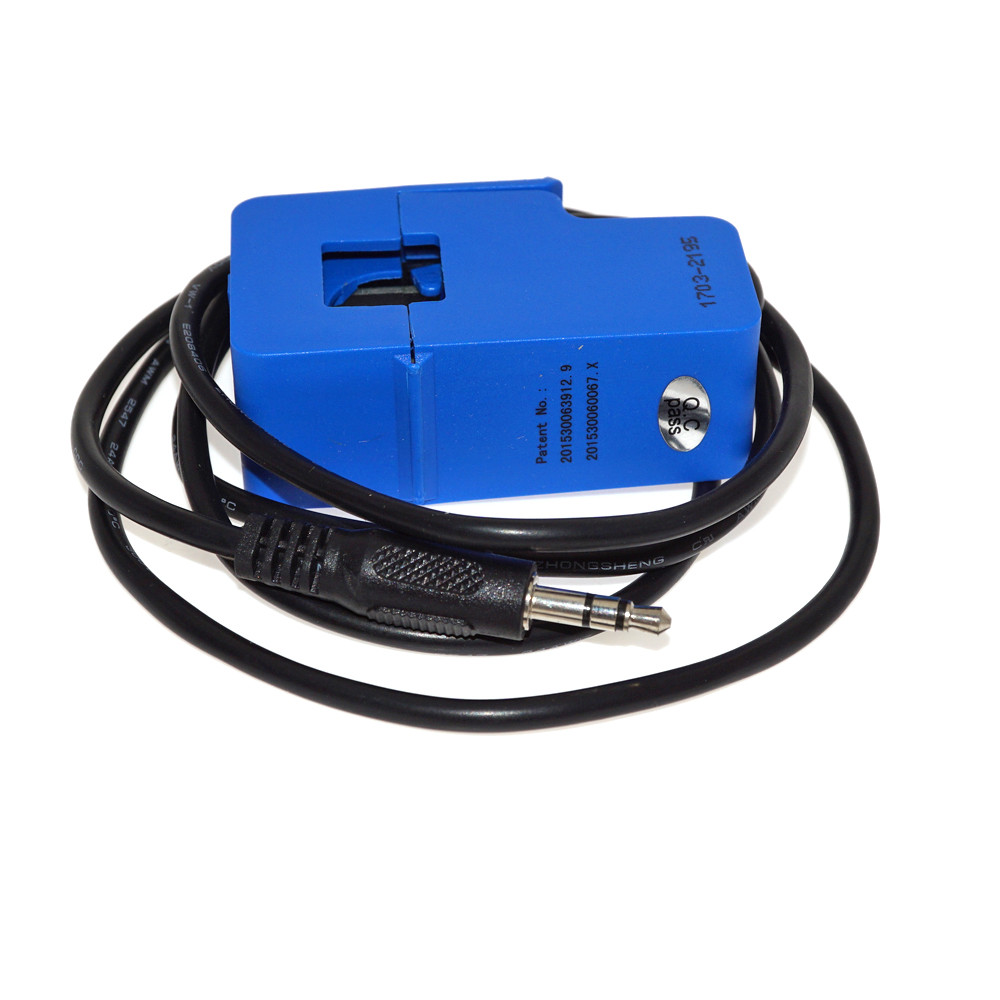

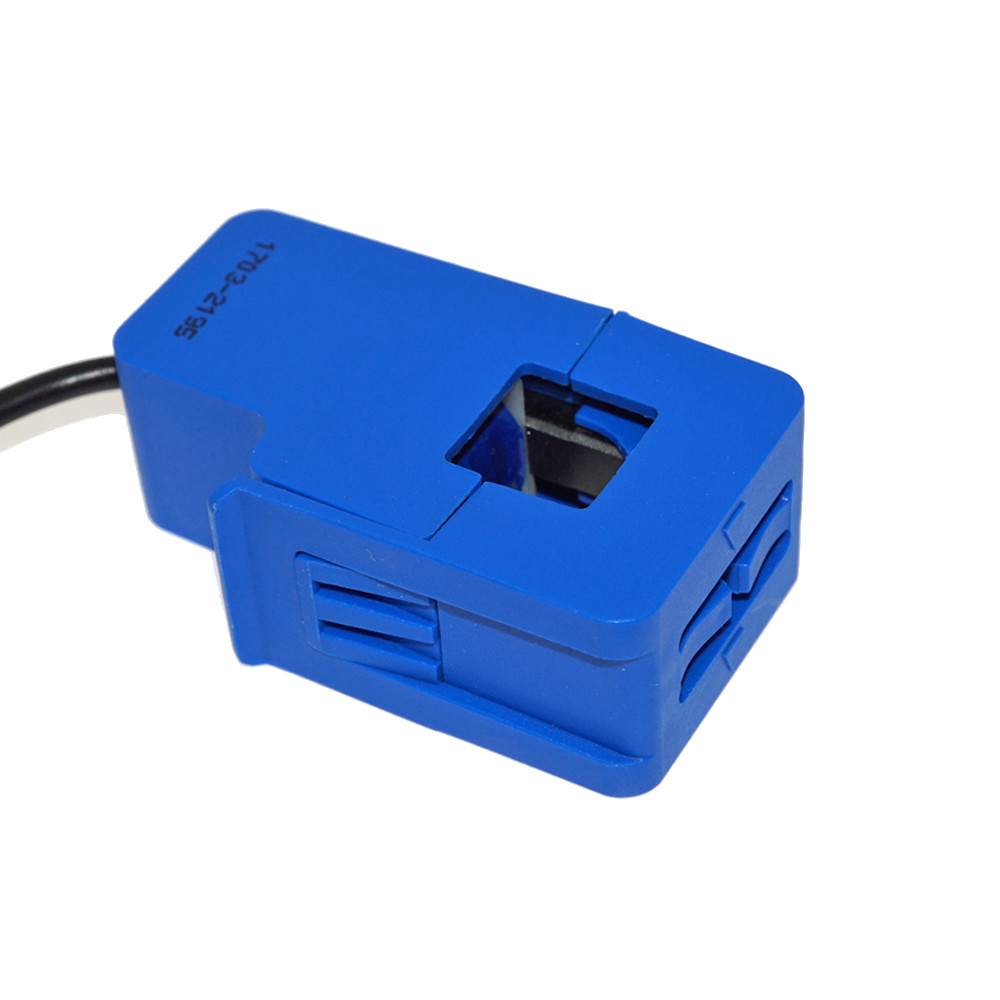

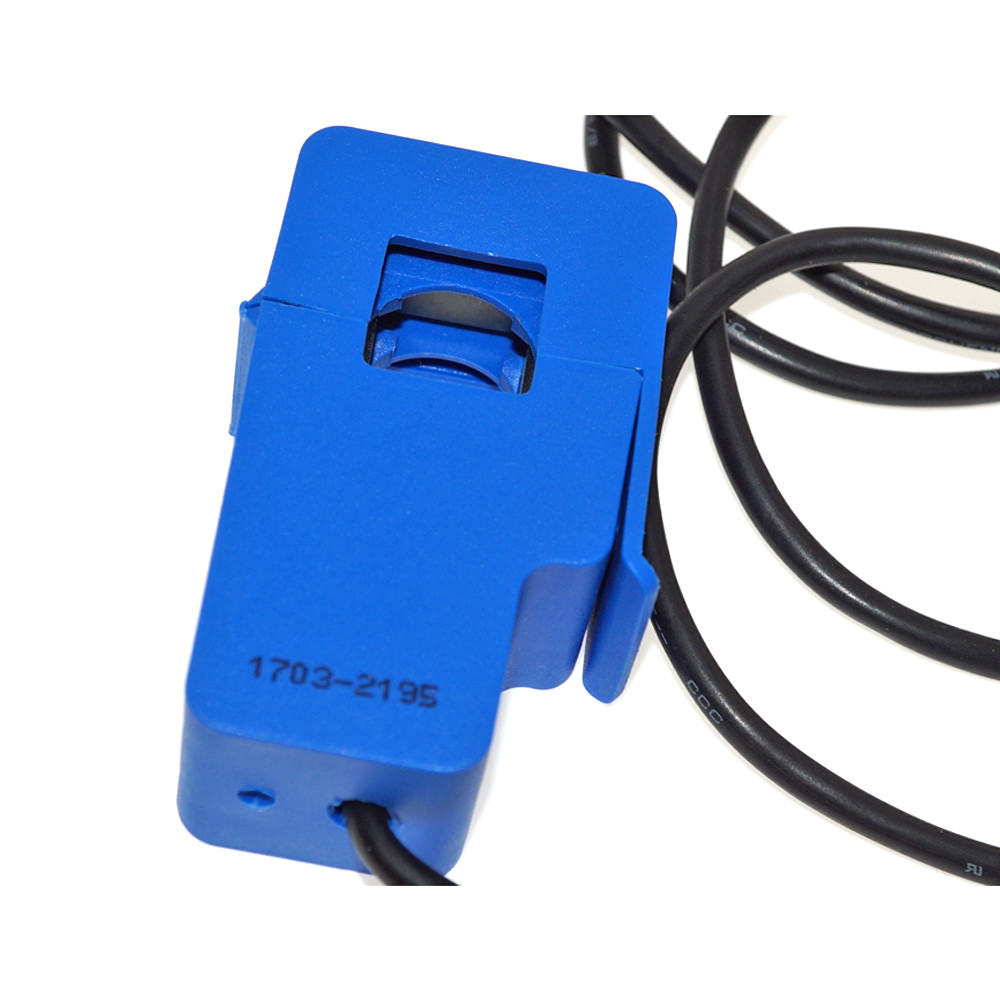

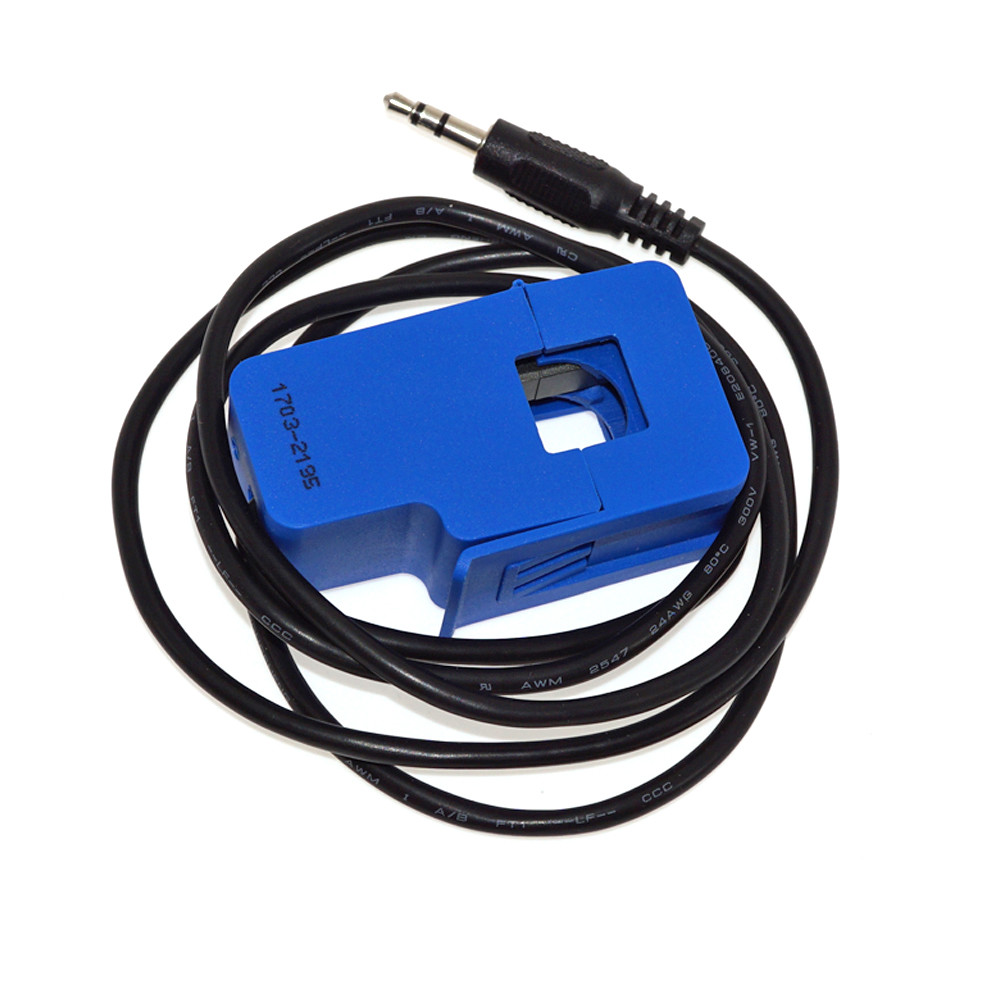

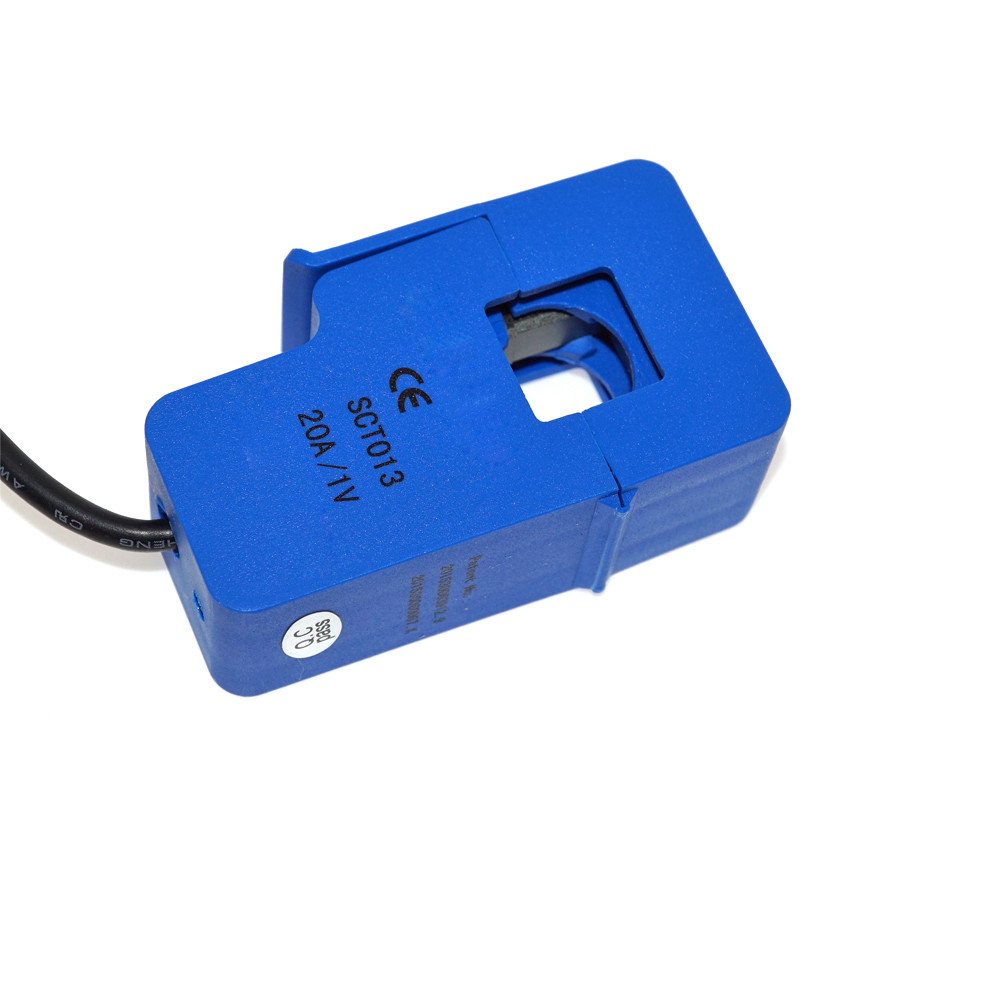

SCT013-020 Split Core AC Current Transformer 20A/1V 3.5mm AC Current Sensor
Characteristics:
Openning size 13mm*13mm,1m leading wire, standard Φ3.5 three-core
plug output. Have two kinds of
output type: Current output type and voltage output type.
Purpose: Used for current measurement, monitor and protection for
AC motor,lighting equipment, air compressor etc.
Technical parameters:
Model:SCT-013-015
Rated input: 0-20A
Rated output: 0-1V
Accuracy: ±1%
Linearity: ≤0.2%
Turns ratio: 1:1800
Work voltage: 660V
Work frequency: 50-1KHz
Operating temperature: -25..+70℃
Storage temperature: -40..+85℃
Dielectric strength: 3KV
Fire resistance: UL94-V0
Material of core: Ferrite
Mounting type: Suspension
Weight: 78g
Photos
|
