| Categories | Flatbed Container Trailer |
|---|---|
| Brand Name: | FUDENG Brand |
| Model Number: | Flatbed container trailers |
| Certification: | BV,SGS, CNCA, CIQ .etc. |
| Place of Origin: | Shandong China(Mainland) |
| MOQ: | One Unit Flatbed container trailer |
| Price: | negotiation |
| Payment Terms: | L/C, D/A,, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 500Units Per Month |
| Delivery Time: | 20days after 30% deposit |
| Packaging Details: | nude package for Flatbed container trailers shipping by 40ft containers and Bulk cargo transportation |
| Application: | Carry Container, Hoses, Cement Bags And Other Goods |
| Axles: | 2/3/4 Axles Fuwa/BPW/Chiness brand |
| Size: | 12,500*2,500*1,560 mm Or customized |
| Key words: | Tri Axle Trailers , 40ft Flatbed Trailers , 40ft Container Semi Trailers |
| Suspension: | Mechanical Suspension Or Air Suspension |
| Payload: | 60-80Tons |
| Container locks: | 12 Units |
| Landing Gear: | JOST Brand 28 Tons Standard |

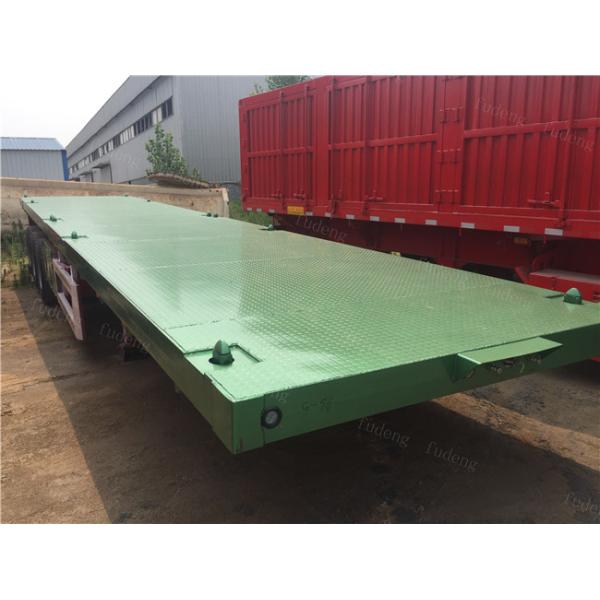

3 axles flat bed trailer used container with the competitive price
Flatbed container Trailers 3 or 4 Axles in Truck Trailer , manufactures high quality flatbed trailer from China. In our flatbed trailer we use high quality container locks and steel to make it more strong and sustainable. These trailer can be useage for 20,30,40,45 feet containers. According to demand we can change the technical specificataions of the trailer.Our factory can produce flatbed trailer in different capacities.
Flatbed container trailer Feature:
1> Strong trailer frame was made from T700 steel
2> All cross beams are completely reinforced
3> Heavy duty type suspension
4> Good brake effects. Axles are equipped with WABCO emergency brake valve also dual-brake chamb- ers also widen brake pads.
| Specifications | |
| Dimension | 12.5m×2.5m×1.5m (Outside) |
| Payload | 30-80 Tons |
| Tare weight | About 8.5 Tons |
| Twist lock | 12 units or customized |
| Chassis | |
| Frame | Welding design or Special design I beam, connected by bolts and nuts, Q345B carbon steel material |
| Frame Beam | Upper and lower plate is20mm,middle is10mm.height is 500 mm |
| Frame Floor | The Thickness is 3 mm flat bed |
| Axle | 2 or 3 axles, BPW/FUWA/China brand |
| Landing Gear | JOST (D200T) 28T |
| King Pin | JOST 2.00 or 3.5 inch bolt-in king pin |
| Suspension | Mechanical suspension/Germany or America type/air suspension |
| Leaf Spring | 90mm(W)*13mm(T)*10 Layer/90mm(W)*16mm(T)*10 Layer/ 100mm(W)*16mm(T)*10 Layer |
| Pneumatic Braking System | WABCO RE 6 relay valve; Spring brake chamber (TKL brand); one piece of 45L air tanks. |
| Rim | 8.5-20,9.0-20,8.25-22.5,9.0-22.5 optional |
| Tire | 11.00R20,12.00R20,11R22.5,12R22.5,315/80R22.5 Tire optional |
| Accessories | One standard tool box |
| Voltage | 24V |
| Packing and shipping | |
| Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |
| Shipping Terms | By Bulk Cargo/RORO/40HQ containers |
| Packing and shipping | |
| Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |
| Shipping Terms | By Bulk Cargo/RORO/40HQ containers |
