TLE4226G Integrated Circuit Chip Intelligent Sixfold Low-Side Switch

Intelligent Sixfold Low-Side Switch

TLE 4226 G

Bipolar-IC

Features

● Quad 50 mA outputs

● Dual 500 mA outputs

● Operating range VS = 5 V ± 5 %

● Output stages with power limiting

● Open-collector outputs

● Shorted load protected within operating range

● Clamp-diodes to ground

● Status signaling

● TTL-compatible control inputs

● Overtemperature monitoring

● Temperature range – 40 to 125 ˚C

TLE 4226 G is an integrated, sixfold low-side power switch with power limiting of the 0.5 A outputs, shorted-load protection of the 50 mA switches and Z-diodes on all switches from output to ground. TLE 4226 G is particularly suitable for automotive and industrial applications.

Absolute Maximum Ratings

Tj = – 40 to 150 ˚C

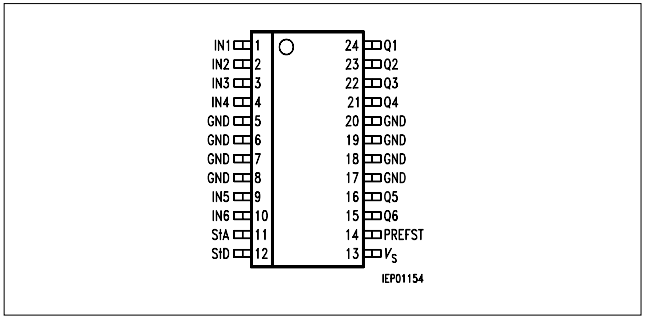

Pin Configuration (top view)

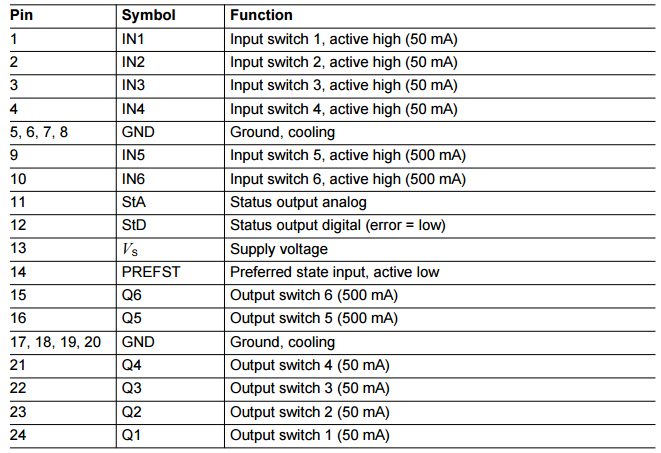

Pin Definitions and Functions

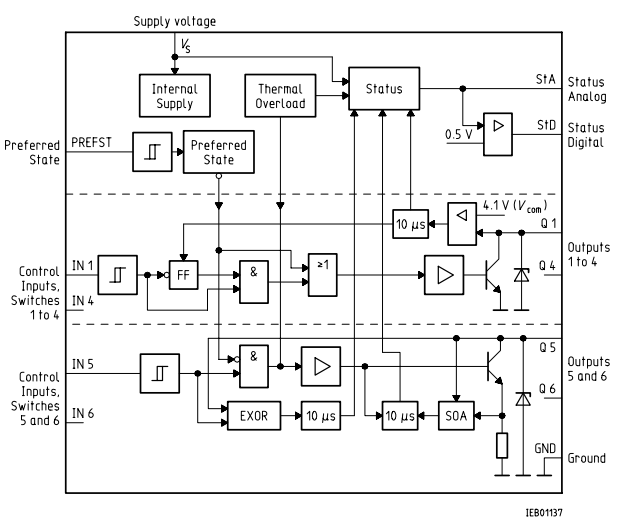

Block Diagram
