| Categories | Thermal Graphite Sheet |
|---|---|
| Brand Name: | Ziitek |
| Model Number: | TIR605 |
| Certification: | RoHs |
| Place of Origin: | China |
| MOQ: | 1000PCS |
| Delivery Time: | 2-3 work days |
| Packaging Details: | 1000pcs/bag |
| Products name: | High Thermal Conductivity Ultra Thin Thermal Natural Graphite Gasket Graphite Sheet Manufacturer |
| Materials: | Natural graphite |
| Color: | Black |
| Hardness: | 2.2 g/cc |
| Thermal conductivity (Z Axis Direction): | 6.0W/m-K |
| Thermal conductivity (X-Y Axis Direction): | 240W/m-K |
| Operating Temperature: | -200℃ ～300℃ |
| Keywords: | Natural Graphite Gasket |
| Company Info. |
| Dongguan Ziitek Electronic Materials & Technology Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

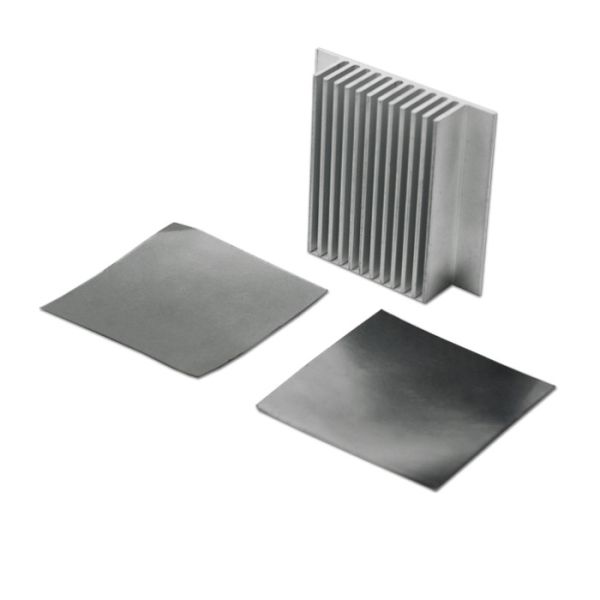

High Thermal Conductivity Ultra Thin Thermal Natural Graphite Gasket Graphite Sheet Manufacturer
The TIRTM605 Series products are high-performance and heat-conductive interface materials with the reasonable prices. They can be used in applications where no requirement for electric insulation is specified. The unique grain orientation and plate structure enable these products to adapt to different contact surfaces closely, and thus the maximized heat conduction function is attained.
Features
>Good thermal conductive: 240 W/mK
>Easy to assemble
>Ultra-thin type
>RoHS Compliant
Applications
>PDP,LCD TV,Set top box
>Laptop,Notebook,Projector
>Mobile phone,Hand-held devices
>Automotive electronics
| Typical Properties of TIR™600 series | |||||
| Product Name | TIR™605 | TIR™606 | TIR™610 | TIR™620 | Test Method |
| Colour | Black | ||||
| Material | Natural Graphite | ||||
| Thickness | 0.005" (0.127 mm) | 0.006" (0.152 mm) | 0.010" (0.254 mm) | 0.020" (0.508 mm) | ASTM D751 |
| Total Thickness | +/- 10% | +/- 10% | +/- 5% | +/- 5% | ASTM D751 |
| Density | 2.2 g/cc | 2.2 g/cc | 2.2 g/cc | 2.2 g/cc | ASTM D297 |
| Hardness | 85 Shore A | ASTM D2240 | |||
| Operation Temperature | -200℃~ 300℃ | ****** | |||
| Volume Resistivity | 3.2X10³ Ohm-meter | ASTM D257 | |||
| Typical Thermal Conductivit (In Z axis) | 6.0W/m-K | 6.0W/m-K | 6.0W/m-K | 6.0W/m-K | ASTM D5470 |
| Typical Thermal Conductivity (In X-Y axis) | 240 W/m-K | 240 W/m-K | 240 W/m-K | 240 W/m-K | ****** |
| Thermal Resistance @100psi | 0.037 (in²℃/W) | 0.042 (in²℃/W) | 0.057 (in²℃/W) | 0.098 (in²℃/W) | ASTM D5470 |
Standard Sheets Sizes: 500mm x 50m
TIRTM 600 series Individual die cut shapes can be supplied.
Consult the factory altemate thickness.
Company Profile
Ziitek Electronic Material and Technology Ltd. is a R&D and production company, we have many production lines and processing technology of thermal conductive materials, owns advanced production equipment and optimized process, can provide various thermal solutions for different applications.
Certifications:
ISO9001:2015
ISO14001: 2004 IATF16949:2016
IECQ QC 080000:2017
UL
FAQ
Q: Are you trading company or manufacturer ?
A: We are manufacturer in China.
Q: How long is your delivery time?
A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra cost?
A: Yes, we could offer samples free of charge.
|
