Shield right angle extra low profile rj45 ethernet connector, 8p8c jack

► Product Description

Industrial RJ45 connector jacks with integrated magnetics are 260 degrees C PIP reflow capable which fit industrial assembly/solder process removing the need for an extra assembly/solder step. The thicker gold plating improves corrosion resistance and reduces electrical problems over the equipment lifetime, making the connectors more durable and reliable. With its extended temperature range the connector enables customers to use industrial RJ45 connectors in industrial environments.

• Internal magnetics are 100% electrically tested for HI-POT and functionality
• Suitable for CAT5&6 fast Ethernet Cable or better UTP
• 350uHminimum OCL with 8mA bias current
• High performance for maximum EMI suppression
• Minimum 1500Vrms isolation per IEEE 802.3 requirement
• ROHS-6 peak wave solder temperature rating 260℃
• Operating temperarure range :-40℃ to +85℃
• Storage temperature range :-40℃ to +85℃
• Length:12.3mm

Electrical Specifications at 25℃

．Insertion Loss:1-100MHZ -1.0dBmax

．Rturn Loss:1-30MHZ -16.0dBmin

30-60MHZ -14.0dBmin

60-80MHZ -10.0dBmin

．Cross Talk:1-30MHZ -40.0dBmin

30-60MHZ -35.0dBmin

60-80MHZ -30.0dBmin

．CMR:1-100MHZ -35dBmin

．Hi-pot:1500v AC 6S 1mA

．Turn Ratio:1CT:1CT±3%

．OCL:350uH @100KHZ 100Mv 8mA DC

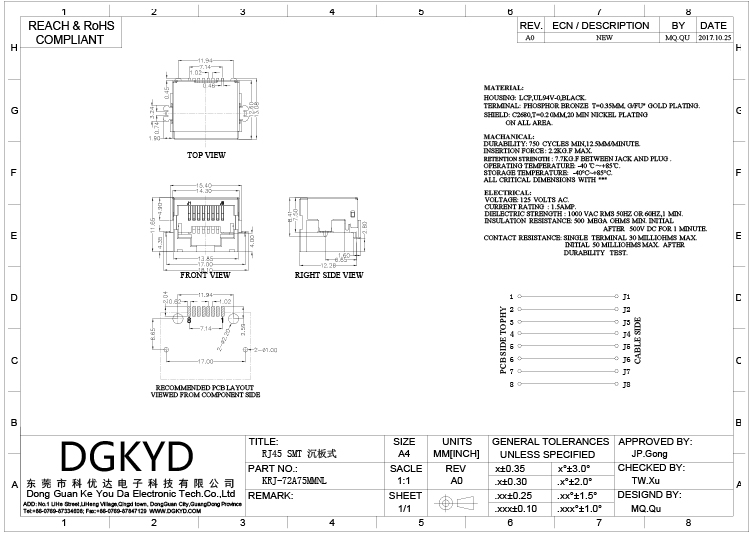

► Product Drawing
