| Categories | AODD Pump |
|---|---|
| Brand Name: | ZY |
| Model Number: | QBK/QBY |
| Place of Origin: | CHINA |
| MOQ: | 2 |
| Price: | 150-1000USD |
| Payment Terms: | T/T, , Western Union |
| Supply Ability: | 10pcs |
| Delivery Time: | 7 |

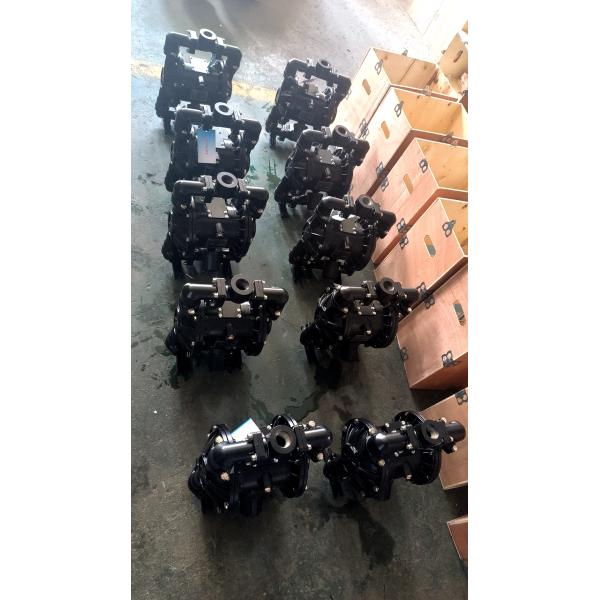

| Packaging Details: | plywood |
| Certification: | ISO9001 |
| Usage: | Air Pump |
| Structure: | Diaphragm Pump |
| Power: | Pneumatic |
| Material: | Aluminum, Stainless Steel, Polypropylene, PVDF |
| Pressure: | High Pressure |
| Applications: | Chemical, Industrial, Pharmaceutical, Food Processing |
| Connection Type: | Flanged, Threaded, Tri-Clamp |
| Controls: | Manual, Automatic |
| Drive Type: | Air, Electric |
| Flow Rate: | 0.5-400 GPM |
| Max Pressure: | 250 PSI |
| Max Temperature: | 200°F |
| Port Size: | 1/2”-4” |
| Power Source: | Electric |
| Product Name: | AODD Pump |
| Seals: | Viton, Buna-N, EPDM, PTFE |
| Valve Type: | Ball, Diaphragm |
| Warranty: | 1 Year |
| Company Info. |
| QUZHOU ZHONGYI CHEMICALS CO.,LTD |
| Verified Supplier |
| View Contact Details |
| Product List |
Diaphragm Pump can pump paint,adhesive,glue,various corrosive liquid,strong acid,alkali,flammable or volatility liquid.
Diaphragm Pump has the features as follows:
1. Newest transportation machine
2. Needless draw water
3. Adjustable lift & flameproofing
4. High suction head
5. Good exterior
6. It can exhaust all the medium
7. It can transport uneasy flowable medium
| mobel | Discharge(m3/h) | Distance(m) | Distance(m) | The admission ascends the vacuum degree(mm) | Extreme limit pressure(kg/cm2) | Eject the pressure(m3/min) |
| QBY-10 | 0-0.8 | 0-50 | 5 | 1 | 7 | 0.3 |
| QBY-15 | 0-1 | 5 | 1 | 0.3 | ||
| QBY-20 | 0-1.5 | 6 | 1.5 | 0.5 | ||
| QBY-25 | 0-2.4 | 7 | 2.5 | 0.6 | ||
| QBY-32 | 0-5 | 7 | 3.5 | 0.7 | ||
| QBY-40 | 0-8 | 7 | 4.5 | 0.6 | ||
| QBY-50 | 0-12 | 7 | 8 | 0.9 | ||
| QBY-65 | 0-16 | 7 | 8 | 0.9 | ||
| QBY-80 | 0-24 | 7 | 10 | 1.5 | ||
QBY- | 0-30 | 7 | 10 | 1.5 |
1. Newest transportation machine
2. Needless draw water
3. Adjustable lift & flameproofing
4. High suction head
|
