Hydraulic Decoiler / Uncoiler Machine With 0-15m/Min Uncoiling Speed , Coil Width 1500mm

High Quality Hydraulic Decoiler / Uncoiler Machine With 0-15m/Min Uncoiling Speed, Coil Width 1500mm

Product Description

• The uncoiler consists of the uncoiler with pressing arm,frame with lead rail, and hydraulic system.The leafs of the uncoiler expanse , the coil be fixed on the uncoiler,main axis of the uncoiler rotate , the coil sheet comes out. After the coil sheet feed into the roll forming machine, the coil sheet will be pulled back to minimize the pendant.
• This machine can make stretch coil-deliver coil automatically, the speed of which is same with the forming machine. It is a matching machine for colored steel equipment. In order to save human recourse and lower labor cost, it is better to work with colored steel mould machine and stacker, with which it formed a completely porducing line.

Main Technical Specifications of Hydraulic Uncoiler

1. Coil Width: Max. 1500mm
2. Working Speed: 0-15m/min
3. Main Motor Power: 3.0KW
4. Hydraulic Power: 3.0KW
5. Electric Control: PLC control system
6. Tolerance Weight: 5T
7. Feeding type: Active uncoiling, hydraulic to expand
8. Material of main shaft: 40Cr
9. Hydraulic system pressure: 6.3Mpa

Competitive Advantages

1. Durable and widely used products

2.Simple to operate when assemble

3.Direct manufacturer, provide with high quality and best price.

4.Provide sample in free.

5.Products and design solution supplied fast and freely

6.Best design oriented for your special requirements

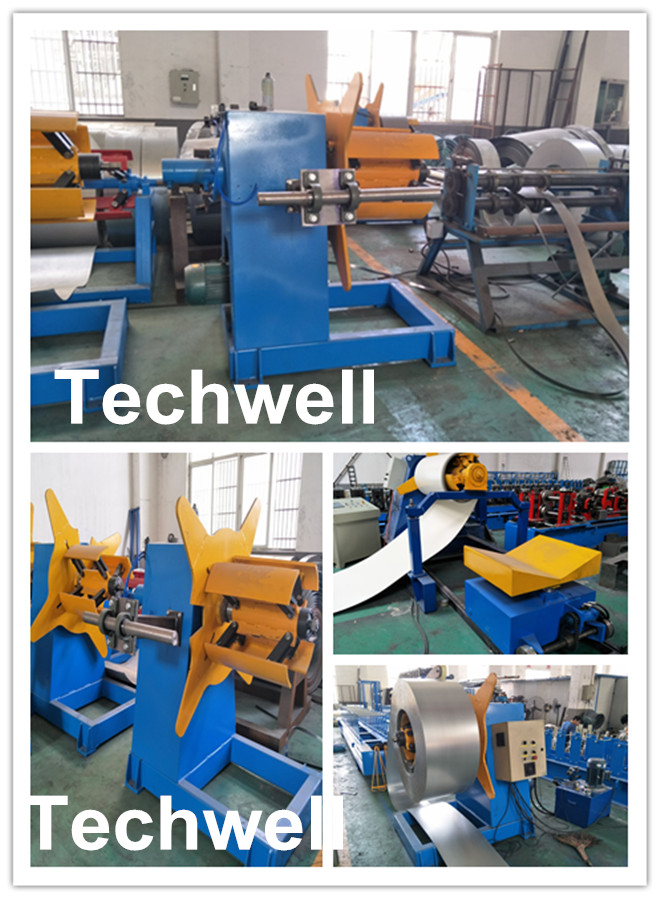

More Machine Pictures

Contact Details

Wuxi Techwell Machinery Co.,Ltd is a professional manufacturer specializing in the developing and exporting of cold roll forming machines and insulated sandwich panel machines and Slitting cutting machines.

Roll Forming Machines: Metal roof & wall panel roll forming machine, steel tile roll forming machine, dual level roll forming machine, C/Z/U/L shaped steel roll forming machine, drywall stud and track roll forming machine, steel floor deck roll forming machine, highway guardrail roll froming machinem downspout roll forming machine, rainwater gutter roll forming machine, portable downspout / gutter machines, door frame roll forming machine, roller shutter door roll forming machine, no-girder k span arched panel roll forming machine, slitting & cutting, roof curving machine, stacker machine and so on.

Insulated Sandwich Panel Machines: PU sandwich panel machine, rubber belt pu sandwich panel machine, continuous pu sandwich panel machine, EPS sandwich panel machine, rockwool sandwich panel machine, eps & rockwool sandwich panel machine, mineral wool sandwich panel machine and so on.

Wuxi Techwell engaged in the steel structure industry in many years and devoted to developing some steel structure machines with a professional technology and reasonable price, we supply the best machines for our new and old customers. In paticular, we are a leading exporter in the field of steel structure construction, and can provide professional service, high quality, through design and installation. Our goal is " Future by heartiness, faith leads to the world".

Warmly welcome to visit our factory and we are looking forward to cooperating with you for mutual benefits.
