| Categories | terminal block |
|---|---|
| Brand Name: | CXDQ |
| Model Number: | CUK 2.5B |
| Place of Origin: | Jiangsu, China (Mainland) |
| MOQ: | 50 |
| Price: | US $0.1 - 0.5 / Piece |
| Payment Terms: | D/A, L/C, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100000 |
| Packaging Details: | box |
| Color: | Gray |
| type: | UK 2.5B |
| Material: | Nylon |
| Usage: | Connecting Cable |
Product Description:

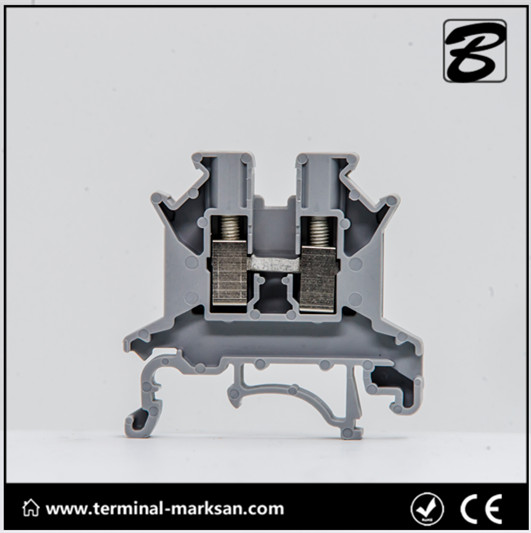

Terminal block CUK-2.5B technical data
Thickness:6.2mm
| (IEC) | Rigid conductor[mm2] | Flexible conductor[mm2] | AWG | I [A] | U [V] |
| IEC 60 947-7-1 | 0.2-4 | 0.2-2.5 | 24-12 | 32 | 690 |
| Dimensions: | |
| Width/Length/Partition plate wide [mm] | 6.2/42.5/1.5 |
| Height(TH 35-7.5/G32-15/G32-18) [mm] | 42/49.5/47 |
| Technical data comply with IEC/DIN VDE | |
| Rated I max/Max. Ø [A]/[mm2] | 32/4 |
| Conductor cross section solid max/flexible max[mm2] | 4/2.5 |
| Rated surge voltage and degree of pollution[kV]/- | 8/3 |
| Overvoltage category/insulation material group | III/I |
| Connection capacity: | |
| Conductor cross section with ferrule/insulation flexible conductor with ferrule [mm2] | 0.25-2.5/0.25-1.5 |
| Multi conductor connection: | |
| Rigid conductor/flexible conductor [mm2] | 0.2-1.5/0.25-1.5 |
| Flexible conductor with ferrule [mm2] | 0.25-1.5 |
| Flexible conductor with twin ferrule [mm2] | 0.5-1.5 |
| Stripping length | 7 |
| Internal cylindrical gage(IEC 60 947-1) | A3 |
| Screw thread | M3 |
| Tighten torque [Nm] | 0.6-0.8 |
| Insulating material | PA |
| Flame test method(Din EN 60695-11-10) | V0 |
| Reference authority data(UL,CSA/CUL) | |
| Rated working voltage/rated working current/Number of conductor UL:[V]/[A]/AWG | 300/20/30-12 |
| CSA/CUL:[V]/[A]/AWG | 300/20/28-12 |
Packaging: Packed with export grade Carton( we also can do as your request).
|
