12.1 inch G121X1-L04 Innolux LCD screen , new original TFT LCD Panel

Categories Innolux LCD Panel
Brand Name: CMO
Model Number: G121X1-L04
Certification: ISO9001
Place of Origin: Japan,Taiwan
MOQ: 1 Piece
Payment Terms: T/T, Western Union, MoneyGram, Paypal
Supply Ability: 100 PCS PER DAY
Delivery Time: 1-3 Working Days
Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box
Resolution: 1024(RGB)×768 , XGA
Panel Brand: CMO
Brightness: 500 cd/m² (Typ.)
Lamp Type: WLED Embedded (LED Driver)
Signal Interface: LVDS (1 ch, 6/8-bit) , 20 pins
Pixel Density: 105 PPI
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

12.1 inch G121X1-L04 Innolux LCD screen , new original TFT LCD Panel

12.1 inch G121X1-L04 Innolux LCD screen , new original TFT LCD Panel


Our Companys Main Products:


1. AUO LCD Panel

2. Innolux LCD Panel

3. Tianma LCD Displays

4. Samsung LCD Panel

5. Chimei LCD Screen

6. Innolux LCD Display

7. Hitachi LCD Panel

8. NEC LCD Screen Replacement

9. Sharp LCD Screen

10. TFT LCD Module

11. Industrial LCD Displays


CMO G121X1-L04 Optical Features


Display Mode :

TN, Normally White, Transmissive

Brightness :

500 cd/m² (Typ.)

Contrast Ratio :

700 : 1 (Typ.) (Transmissive)

Display Color :

262K/16.2M (6-bit / 6-bit + FRC)

Color Gamut :

63% NTSC (CIE1931)

Response Time :

5/11 (Typ.)(Tr/Td)

Viewing Angle :

80/80/70/70 (Typ.)(CR≥10) (L/R/U/D)

White color Chromaticity :

Wx:0.313; Wy:0.329

White Variation :

1.25/1.40 (Typ./Max.)(5 points)


Backlight System


Lamp Position

Edge light type

Lamp Type

WLED

Lamp Life Time

30K(Min.) (Hours)

Interface Type

Connector

Backlight Interface

Brand:

Model:

Pin Pitch:

Pins:

Amount:

ACES

91208-01001

1.0 mm

10 pins

1 pcs

Lamp Driver Board

Embedded (LED Driver)

Lamp Driver Board

12.0±5.0V

Lamp Driver Board

0.4/0.5A (Typ./Max.)

Lamp Driver Board

4.8/6W (Typ./Max.)


1. Samples charge: According to the model. Pls contact us to get details.


2. Samples time: 1 day forstock models


Packing: Antistatic bag, Bubble Bag, Foam Box and Carton Box.


Shipping: Delivery will be arranged in 1-3 working days once received payment, and will use third parties delivery services or delivered as you request.


Guarantee:

(1) All items will be strictly tested and shipped with safe & professional package.

(2) We have 12 months warranty for each LCD screen panel, depend on the different LCD panel models.

(3) We will do our best to solve any possible problems for your after sale sevice. Please contact with us if any problems.

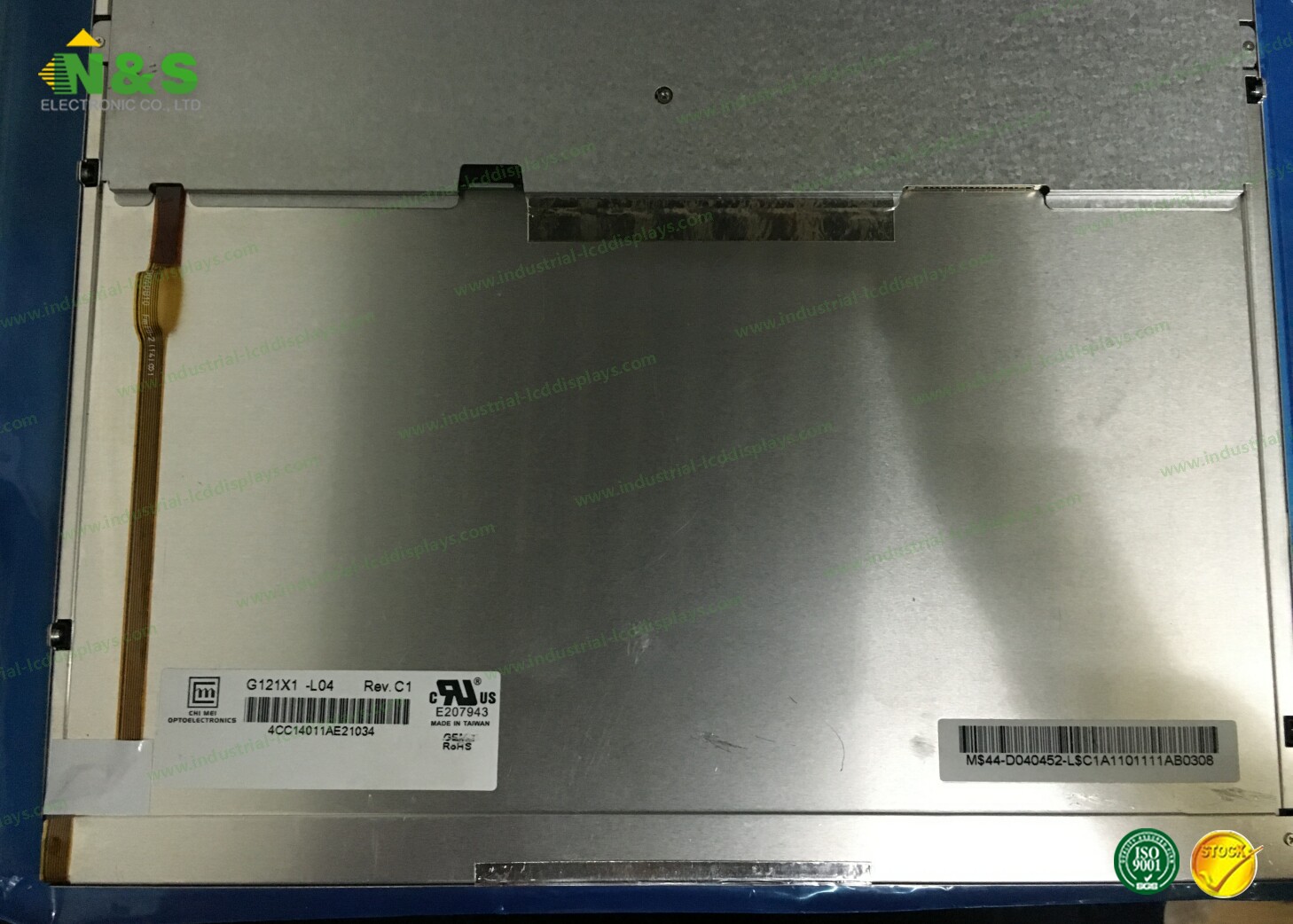

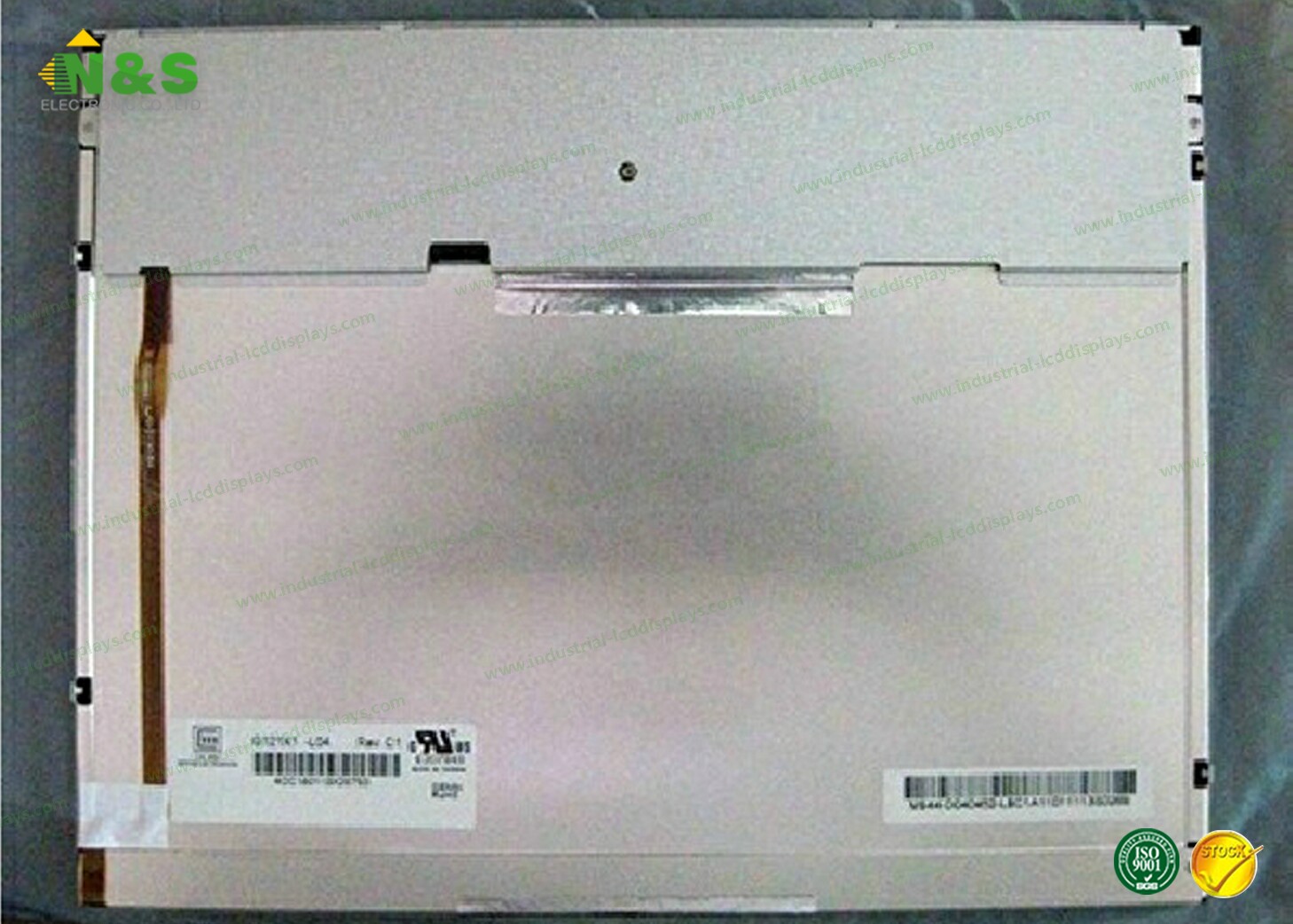

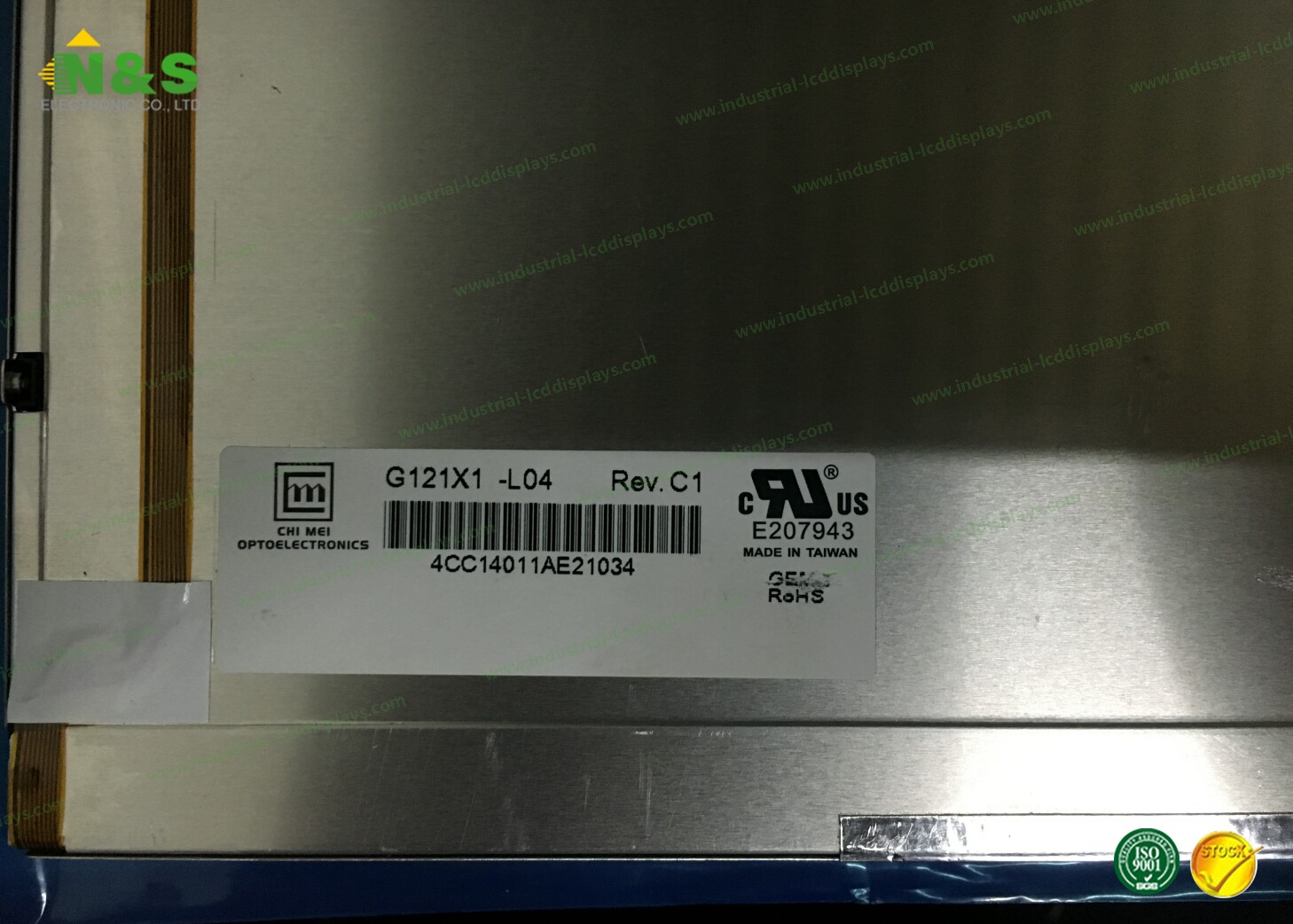

Products G121X1-L04 Image
