| Categories | Dump Semi Trailer |
|---|---|
| Brand Name: | Fudeng |
| Model Number: | FDZH04013 |
| Certification: | CCC , CIQ , SGS , BV , CTN |
| Place of Origin: | China |
| MOQ: | 1 set |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 400 sets per month |
| Delivery Time: | 18 - 25 working days |
| Packaging Details: | Bulk cargo or container |
| Hydraulic Lifting Cylinder: | HYVA |
| Tires: | 315/80R22.5, 12 Sets |
| Tipper Trailer Chassis Material: | T700 High Strength Steel |
| King Pin: | 50 # Or 90 # |
| Size: | 9500*2500*2800mm |
| Application: | To Carry Sand , Mud , Stone Gravel |
| Axle: | BPW or FUWA |
| Condition: | New |
| Price: | negotiation |

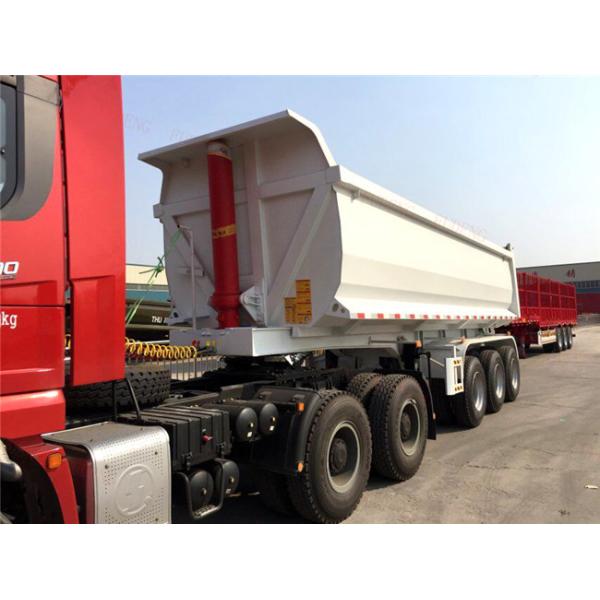

25 CBM U Shape Dump Semi Trailer , 3 Axle Tipper Trailer with Hydraulic Cylinder
Functions
1. This series dump trailer,dumper trailer,dumping trailer ,tipping trailer,tipper trailer,tip semi trailers, are mainly used in heavy duty transportation for bulk cargo transportin such as sand,grain,stone or fruit.
2. The capacity is for 10tons-200tons , we can manufacture it
according to your needs.
3. The axles can be FUWA / BPW with different tonnages by your need
with price differences.
4. The suspensions can be: Air suspension, mechanic (leaf spring
suspension), bogie suspension, etc .
5. The loading deck can be concave beams, tire appeared cover,
totally flatbed, or extendable.
6. The loading ramps can be rear end designed, or front loading
ladders, which can be mechanic spring ladders and hydraulic loading
ramps by different needs
Specification
| Application | sand , stone , coal , mineral products , and other bulk cargo goods |
| Total Volume(m3) | 25 m³ or less than 80tons |
| Bottom plate thickness(mm) | 5mm-8mm / steel or can be optional |
| Lifting system | Full set of Hyva (FC214-5-07130) Hydraulic Lifting Cylinder |
| Main Beams | Height:500mm, upper plate is 16mm,middle is 8mm(double plate),down plate is 18mm,material is Q345B steel (CUSTOMIZED) |
| Axle | 3 /2 axles, 13T/16T, FUWA/BPW/Huajing Brand |
| Landing Gear | JOST (D200T)or China Brand 28Tons |
| King Pin | JOST 2.00 or 3.5 inch bolt-in king pin or Welding type |
| Suspension | Mechanical suspension (Germany Type or America Type) or Air suspension(China brand or BPW brand) |
Nude packing
1.3 sets stacked(by Bulk cargo ship,Ro-or ship,or Land Transportation);
2.Dismantle the rear part which can load two sets in one 40 ft container;
3.Keep the trailer original but load two sets in one 45 ftcontainer;
FAQ:
1 . Can you satisfy special requirement?
Definitely!We are direct manufacturer and we have strong producing capacity and R&D capacity!
2 . How can you guarantee quality?
Our raw material and OEM parts including axle,suspension,tyre,are purchased centralized by company.every node will be inspected strictly.Moreover,advanced equipment rather than only worker is been applied during the whole producing process to ensure the welding quality.
|
