| Categories | Chassis Container Trailer |
|---|---|
| Brand Name: | Fudeng |
| Model Number: | SDFD1705 chassis trailer |
| Certification: | CE, ISO, CCC, SGS, ADR |
| Place of Origin: | Shandong, China |
| MOQ: | 1 set |
| Payment Terms: | L/C, T/T or negotiate |
| Supply Ability: | 600 sets per month |
| Delivery Time: | 25-40 days after 30% deposit |
| Packaging Details: | Paint and wax spraying |
| Material: | Carbon Steel |
| Usage: | Transport 20ft And 40ft Container |
| Color: | White, Yellow, Red, Green, Blue Customized |
| Pattern: | Fudeng Logo Or As Customer's Request |
| Suspension: | Mechanical Or Air Suspension |
| Capacity: | 30-50 Ton Available |
| Axle: | Fuwa or BPW brand |
| Conditions: | New |
| Tires: | 12R22.5 Vacuum Tire / 11.00R20 |
| Price: | negotiation |

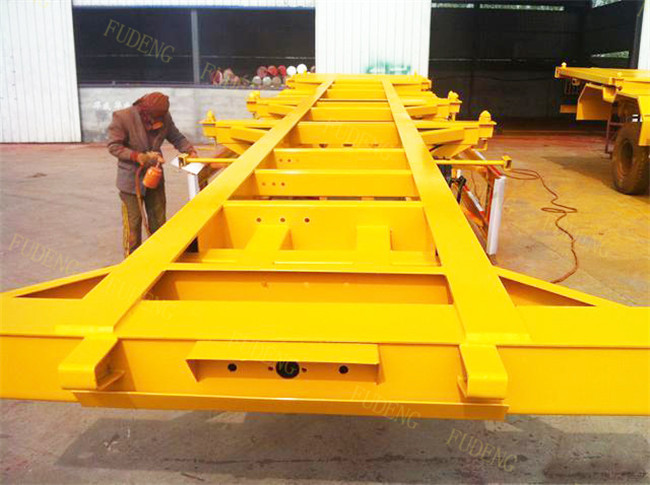

Container chassis semi-trailer are designed for 20ft 40ft 45 ft container and sea freight transport tasks and combine both safe and rapid container handling. The welded container trailer possesses a long service life even under the tough conditions which a semi-trailer container chassis has to face on a daily basis.
The Advantages
· 12 sets of twist lock chassis trailer for transporting 2 x 20' or 1 x 40' different containers
· Pneumatic hook locks for maximum safety
· Dual-tyre optional for greater load capacity
| Tare Weight | 4000kg |
| Load Capacity | 30000KG |
| Dimension | 12500x2500x1600mm(Adjustable) |
| King Pin | 2.00'' traction pin , JOST Brand , bolts in type |
| Suspension | Common Mechincal Suspension ,American type |
| Steel Spring | Four sets of reliable local brand , 10pcs leaf spring , 13mm thickness , 90mm width |
| Landing Leg | JOST D200T suport legs , manual operation , heacy duty local brand landing gear . |
| Main Beam | Height: 500mm, upper plate thickness is 14mm, middle plate thickness is 8mm, down plate thickness is 16mm; Material is Q345 Carbon Steel. |
| Side Beam | 16mm or 18mm channel steel(Material is Q235 carbon steel) |
| Twist Locks | Four or Eight pieces(Lifting type or Twist Screw type) |
|
