| Categories | Low Bed Semi Trailer |
|---|---|
| Brand Name: | Shandong Fudeng |
| Model Number: | SDFDZH040816 |
| Certification: | SGS , BV |
| Place of Origin: | Shandong China(Mainland) |
| MOQ: | 1 set |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 800 Units Per Month |
| Delivery Time: | 20 - 25 work work days after deposit |
| Packaging Details: | By Bulk Cargo Ship, Ro-ro Ship |
| Brake System: | WABCO Valve |
| Suspension: | Mechanical suspension |
| Axles: | 16 T axles bpw axles |
| Main beam: | 500mm |
| No. of tire: | 12 pcs |
| Material: | High Strength Steel Material |
| Price: | negotiation |
Product Introduction and Features
3 axles 100 ton low bed trailer has the ability to transport the heavy duty machine like the excavator or the other type of heavy machines.
As the main product from our company, thislow bed trailerwe use all the good brand of spare parts like bpw or fuwa axles, the breaking valve is from WABCO, the landing gear for thisheavy duty low bed dorse treyler trailerwe use the JOST A400 landing gear .
We have specially strengthen the goose neck and the main beam also the side beam for thislow bed trailer. The details please refer to the photo bellow. The main beam we use the height of 550 mm to suit the heavy machine or engine transportation .
Specification
| Specifications | |
| Body | |
| Dimension | 13m×3.0m×1.7m (Outside) |
| Payload | 100T |
| Tare weight | About 11T |
| Bottom Platform | 4 mm Checkered Thickness |
Main beam | Welding design I beam, connected by bolts and nuts, Q345B carbon steel material. Upper and lower plate is 20mm, middle plate is 10mm. height is 500 mm |
| Side beam | Welding design I beam. Height is 300mm. |
| Through beam | 14# Channel |
| Ladder | Mechanical |
| Suspension | Mechanical |
| Chassis | |
| Axle | 3 axles, 13T FD brand,16T Brakes pads |
| Landing Gear | 28T Linkage style |
| King Pin | 2.00 or 3.5 inch bolt-in king pin |
| Leaf Spring | 90mm(W)*16mm(T)*10 Layer |
| Braking System | 6 big air chamber, 3 axles synchronization valve |
| Rim | 8.5-20*12pcs |
| Tire | 12R22.5*12pcs |
| Accessories | One standard tool box |
| Spare tire rack | One |
| Voltage | 24V |
| Packing and shipping | |
| Painting | Complete Chassis sand blasting to clean rust, 1 coat of anti-corrosive prime, 2 coats of final paint |
| Shipping Terms | By Bulk Cargo/RORO |

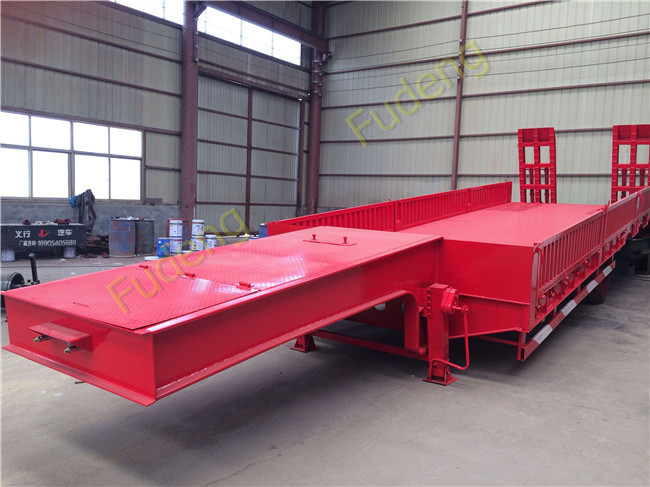

3 axle low bed semi trailers

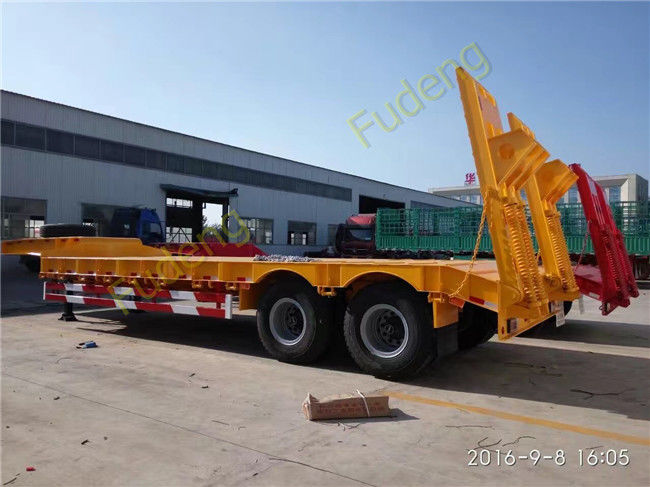

2 axle low bed semi trailers

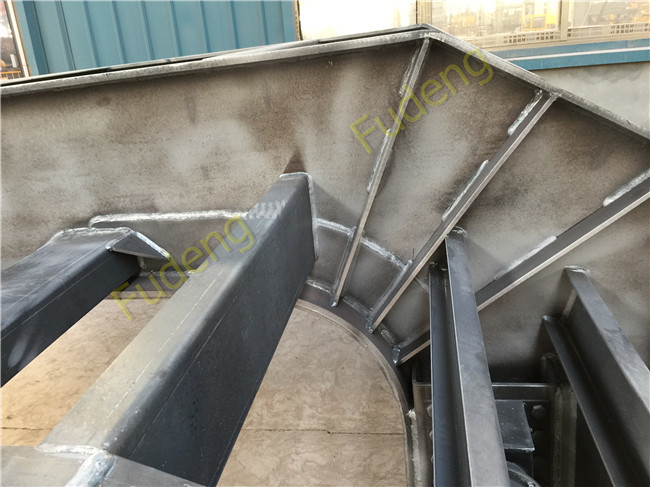

Specially strengthen for the goose neck to ensure the safety of the
low bed trailer

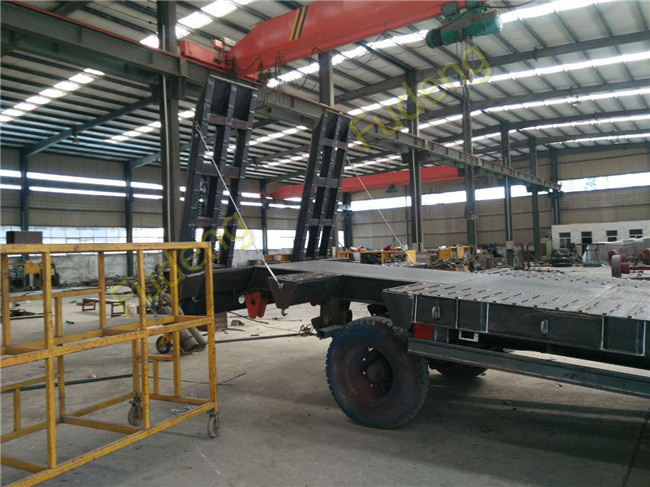

The side beam and the side defence of thislow bed trailer, all of which are the stronger type.
|
