High Extrusion Speed Plastic Extrusion Line for PVC Twin Pipe Production

Categories Plastic Extrusion Line
Brand Name: AORUI
Model Number: SJSZ65/132
Certification: CE & ISO9001
Place of Origin: ShanDong China
MOQ: 1 set
Price: Negotiable
Payment Terms: T/T L/C
Supply Ability: 30 sets per quarter
Delivery Time: 30 days
Packaging Details: Fumigation wood, film,pallet,etc or according to customer’s requirement.
Condition: SJSZ65/132
Plastic processed: PVC
Screw Design: Double screw
Automatic grade: Fully automatic
Condtion: New
Motor: Siemens
Incerter: ABB
Place of original: Shandong , China
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

High Extrusion Speed Plastic Extrusion Line for PVC Twin Pipe Production

High Extrusion Speed PVC Twin Pipe Production Line / PVC Water Pipe Extrusion Machine


Quick detail

1. high output pvc twin pipe production line 16-63mm


1)pipe diameter :16-63mm

2) extruder: CTS-2-65/132

3)high quality with competitive price PVC Twin Pipe Production Line


2. High quality SJSZ-65/132 PVC twin screw extruder/PVC pipe production line/pvc extruder linespecially designed for the PVC powder extruding, it combined use with the PVC pipe


production line, PVC profile production line, PVC sheet production line; It also can be used for WPC profiles extruding.



Description:


1. PVC double pipe production line is developed for high output of double pipe extrusion.The main machine is SJSZ51/105 or SJSZ65/132 conical double screw extruder, which is equipped with double-tube single-control. stainless steel spraying shaper to form a production line. It avoids a waste condition when one tube is adjusted and the other one is affected.


2. The auto single-control double drawing machine and cutting are combined with the front shaping technology to make operation more flexible.The diameter of the extruded pipe is from 20-63mm. It can fully use the extruding capacity of the extruder. Even if it producces small diameter pipe,

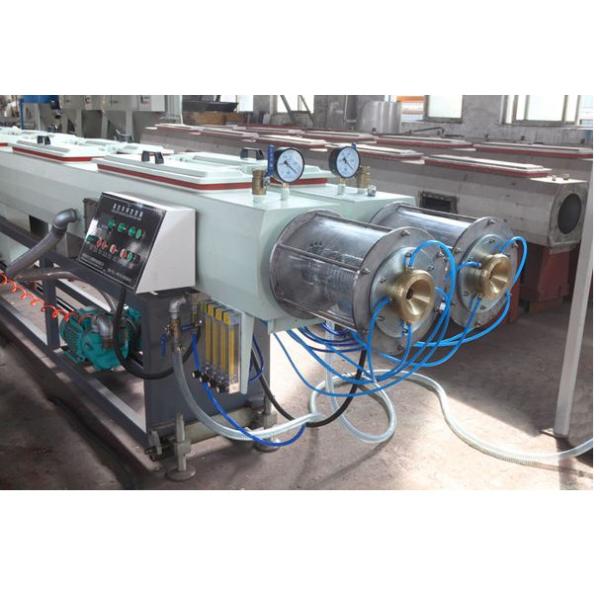

3. Beautiful and practical stainless steel body for the vacuum calibration and spray cooling system, unique multi-section vacuum system ensures the stable sizing and cooling for pipes; Special spray cooling system improves the cooling efficiency; Special water position, water temperature system make the machine more intelligent.


4. Hauling-off unit adopts particular pedrail structure, which is easy and convenient for operation; Pedrail clamping uses mechanical and pneumatic combining system, which is more reliable.

Cutting system adopts saw blades and planetary cutting means; Sumping uses hydraulic system, which ensures the smooth cross section; Equipped with dust-collecting unit, which ensures the clean working environment.



Main Technical Parameters:

ItemPVC50PVC160PVC250PVC315PVC400
Specification16-5063-160160-250250-315200-400
ExtruderSJSZ48/112SJSZ65/132SJSZ80/156SJSZ80/156SJSZ80/156
Mould1 suit1 suit1 suit1 suit1 suit
Vacuum shaped tank4000mm6000mm6000mm6000mm6000mm
vacuum pressure(Mpa)-0.03~0.080.03~0.08-0.03~0.080.03~0.08-0.03~0.08
Max traction force(N)1000015000200002500030000
Traction speed/min/max106432
Effection traction length10001500150015001800
Compressed air capacity m3/h0.41.01.21.21.5
Water consumption m3/h57889



Application:

This PVC pipe production line is mainly used to produce PVC pipes, which is widely used as water supply pipe, drainage pipe, cable and wire protection pipe


Our advantage:
1. good pre-sale and after-sale service
2. engineers availiable to service
3. we are factory , welcome to visit our factory to test the machine
4. CE ISO9001 Certificate
5. overseas to installation
