| Categories | Led Controllers |
|---|---|
| Brand Name: | KooSion/OEM |
| Model Number: | CD-130605 |
| Certification: | CE, RoHs |
| Place of Origin: | China |
| Payment Terms: | D/A, D/P, T/T, Western Union, L/C |

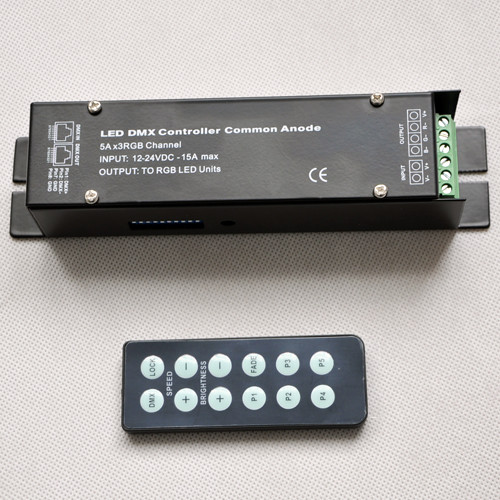

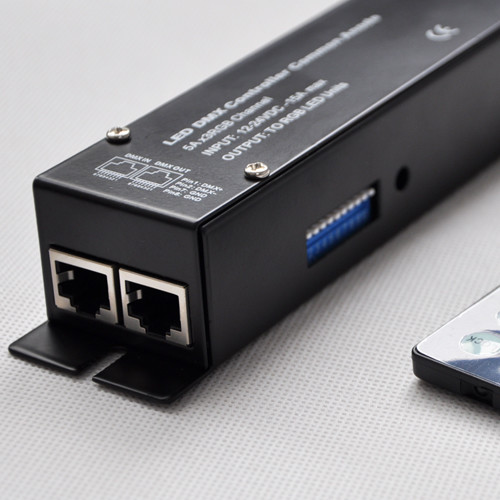

Remote LED Module DMX Controller 12-24VDC 3 channels
Remote LED Module DMX Controller 12-24VDC 3 channels
Remote LED Module DMX Controller 12-24VDC 3 channels
DV512-DMX-controllers-LED-rgb-controller
Features:
1. Working temperature: -20~+60 °C
2. Supply voltage: 12-24VDC
3. Output: 3 channels
4. Connecting mode: common anode
5. Static power consumption: <1 W
6. Output current: 6A (each channel )
7. Out grayscale: 256
8. Meet DMX 512 protocol;
9. With control system,can express perfect effect;
Can set the DMX addess freely; Modularizing,can be combined with
LED module neatly; Can be custom-made;
Summarization:

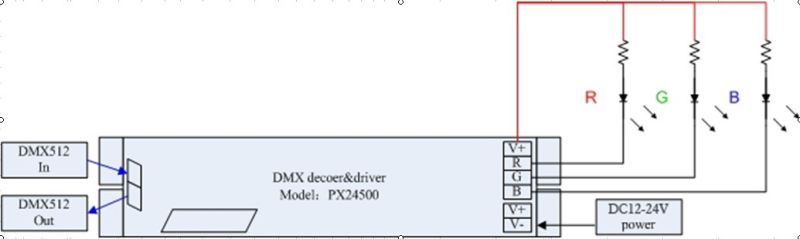

DMX common controller adopts the advanced micro control unit, it receives standard DMX-512 digital control signal and transformed it into PWM signal for driving LED; You could connect DMX module with DMX digital console to achieve dimming or various changes in procedures.
|
