Categories | Four Wheel ATV |
---|---|
Brand Name: | RONGYAO |
Model Number: | four wheel atv400-5 |
Certification: | EC,EEC,DOT,EPA |
Place of Origin: | China |
MOQ: | 1 |
Price: | Negotiation |
Payment Terms: | T/T, Western Union, |
Supply Ability: | 1000 pcs/month |
Delivery Time: | Within 20 Days |
Packaging Details: | Metal Frame with Carton |
Product name: | 400cc four wheeler |
Max horsepower: | 16.1hp/5200rpm |
Max torque: | 23n.m/4000rpm |
Bore*stroke: | 3.09*2.92inches |
Climbing ability: | 40 degree |
Tires,front/rear: | 25*8-12/25*10-12 |
Company Info. |
Shanghai Rongyao Vehicle Co.,Ltd |
Verified Supplier |
View Contact Details |
Product List |
400CC four wheel atv with Extra large size Air cooled+oil coolded shaft drive 4*4 four wheeler force
Model:
four wheel atv400-5
Product Description:
Engine type : | 4-Stroke,single cylinder |
Engine brand : | * |
Displacement : | 400cc |
Cooling : | Oil cooled |
Max horsepowe : | 16.1hp/5200rpm |
Max torque : | 23n.m/4000rpm |
Bore*stroke : | 3.09*2.92inches |
Max speed : | 49.7mile/h |
Climbing ability : | 40degree |
Ignition : | C.D.I |
Starting system : | Electric/hand-pull |
Battery : | 12V/14Ah |
Carburetor brand : | * |
Engine oil : | SAE15W/40SF |
Gear oil : | * |
CHASSIS ETC : | |
Clutch : | Automatic |
Transmission : | 5-speed+reverse |
Driveline : | Shaft-drive |
Driving wheel : | 4 wheel drive |
Suspension,front/rear : | Double a-arm/single a-arm |
Brakes,front/rear : | Disc/disc |
Brake operation : | Hand+foot |
Tires,front/rear : | 25*8-12/25*10-12 |
Fuel capacity/type : | 3.43gal |
Weight,G.W./N.W : | 674.6/573.2lbs |
Max load : | 661.4lbs |
DIMENSIONS : | |
Wheelbase : | 49.2inches |
OA L*W*H : | 78.7*45.3*54.3inches |
Height to seat : | 32.7inches |
Min ground clearance : | 7.9inches |
Carton size : | 78*45.7*33.5inches |
Shipping info : | 34PCS/40HQ |
Applications:
For adult use only, Forest road, Riverbed, Stream,
Mountain Road, On the Beach, Farm and Pleasure Ground
Terms of transaction:
Our warranty is 1 years. If your vehicle is broken,the spare parts
will be sent to you free of charge. This vehicle will be sent to
you assembled by sea and you can ride as soon as getting it. The
terms of payment is wire transfer,western union or . The delivery
time is about 20 days.

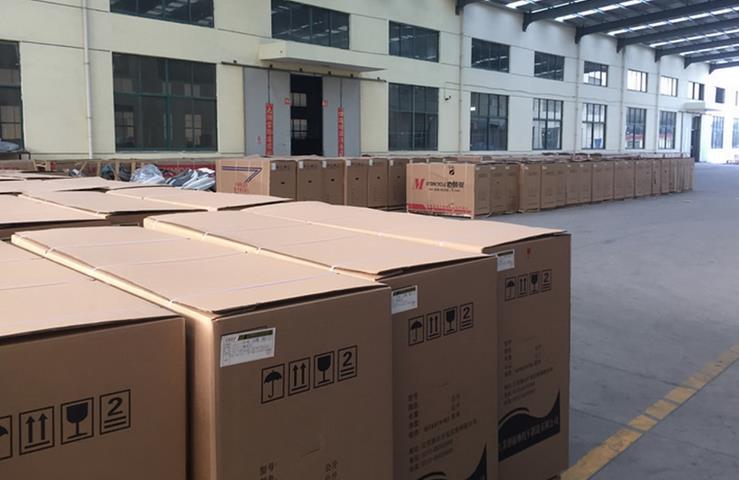

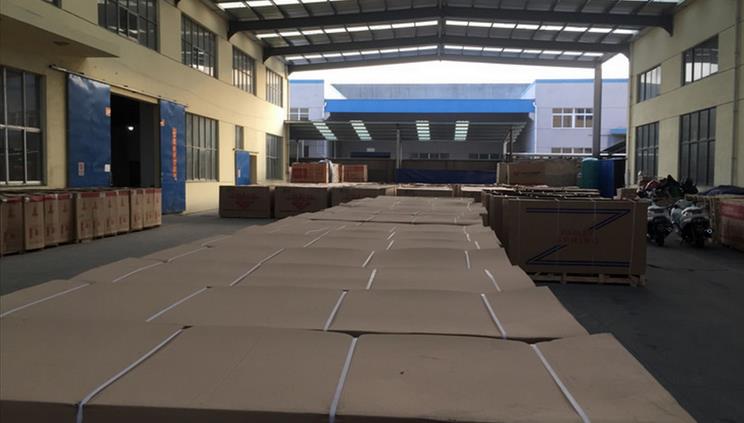

Packaging & Shipping
![]() |
