5050 RGB SMD LED PLCC-6, TRI-COLOR 5050 6-PIN LED, SUPER BRIGHT LED,LOW POWER LED,THREE COLOR LED

SHEN ZHEN XIN MING HONG ELECTRONIC CO.,LIMITED professional manufacture SMD LED for 10 years with good quality and best performance. Our products include 0603 0805 1206 3528 5050 etc.

5050 TRI COLOR SMD LED CHIP

Features:

• (1)suitable for all SMT asembly methods.
• (2)compatible with infrared and vapor phase reflow solder process.
• (3)compatible with automatic placement equipment.
• (4)This product doesn't contain restriction substance,comply ROHS standard.

Applications:

• Turn singals
• Status indicators:comsumer & industrial
• Backlighting:LCDS,Key pads adverstising
• General use

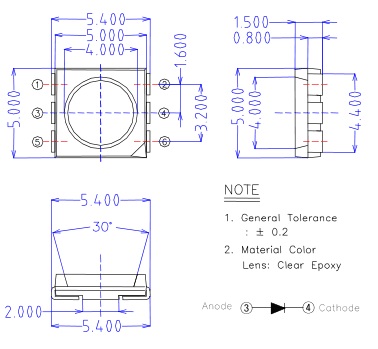

Package dimensions:

Electrical and optical characteristics(Ta=25Electrical and optical characteristics(Ta=25C)Electrical and optical characteristics(Ta=25C)Electrical and optical characteristics(Ta=25C)C)

Soldering

• Reflow soldering

Preheating:140°C-160°C±5°C,within 2 minutes.

Operation heating:235°C(MAX.) within 10 seconds.

Gradual Cooling(Avoid quenching)

Preheating:140°C-160°C±5°C,within 2 minutes.

Operation heating:235°C(MAX.) within 10 seconds.

Gradual Cooling(Avoid quenching)

• Dip soldering(wave soldering)

Preheating:120°C-150°C, within 120-180 sec

Operation heating:245°C±5°C within 5 sec.260°C(MAX)

Gradual cooling(Avoid quenching)

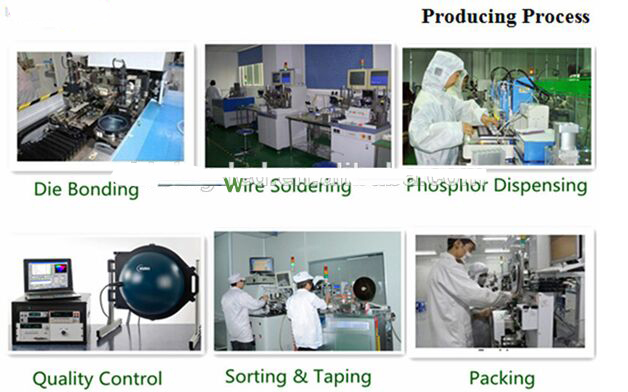

XIN MING HONG Electronic was established in 2004,which specialiaing LED and LED applied products. It is a high-tech enterprises which located in SHENZHEN city. Outpurt LED impressed word a lot.

Current production bases cover total area of 2000m²  with advantages on capital,distribution channel,R&D,and management.

XIN MING HONG Electronic maintains assembly lines in all products series including high power LED, LED lamps,SMD LED chips. XINMINGHONG's outstanding performance on global markets is due to its core capablities which include R&D,manufacturing,quality control and product promotion.
