Olyair VRF System indoor wall split air conditioner R type

Introduction

Wall-mounted/R type panel

Olyair's Wall-mounted air conditioner offers a capacity from 1.5kW to 9.0kW.

Feature

Convenient installation

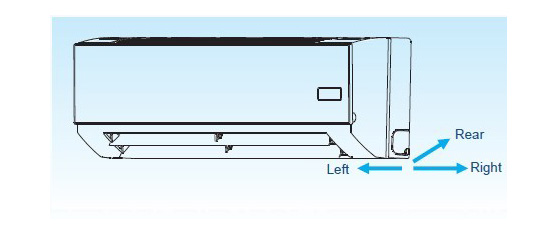

Multi-refrigerant outlet pipe method: leftrightrear, more
flexible for installation.
The EXV is built-in the indoor unit, compact size, Longer
the connection pipe;gas pipe: 468mm; liquid pipe:
550mm, more flexible for installation
Adopts new type fixing plate, is easy to install and stable.

Easy maintenance

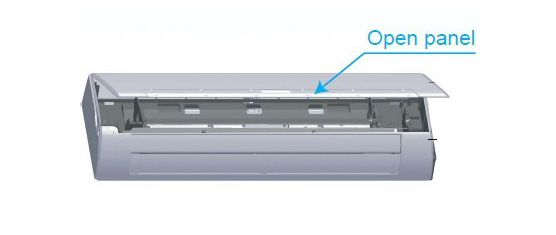

The front panel can be removed for easy maintenance access.

Optimal comfort through better flow control and quiet operations

The mechanical expansion valve offers 2,000-stage element positions to ensure precise flow control and less modulation noise when the EXV is operating for a quiet and comfortable environment. Three air flow speeds: low, medium and high; double air guides. Smoother airflow and less turbulence is ensured by the multi-blade fan and the air guide design.

Model	7.1kW	8.0kW	9.0kW
Wall-mounted/R type panel

Shenzhen Olyair Electric Appliance Co., Ltd. is a professional home appliances company engaged in designing and manufacturing AC, refrigerator, washing machine and wine cooler. With our marketing department located in Kowlong, Hong Kong and factory located in Longgang, Shenzhen. With decades of development, our products have been sold to over 150 countries and regions.

We specialized in home appliances industry more than ten years, to have 15,000 employees, 530 engineers and 30 assembly lines. Our turnover in 2012 was USD5 billion (AC: USD2.5 billion) and our target turnover in 2016 will be USD13 billion (AC: USD9 billion).

Our manufacturing factories are located in Shenzhen, Shanghai, Foshan and Hefei, totally covering an area of 500,000sqm. Our annual capacity is 5 million units of air conditioners and 6 million units of major appliances (air curtain, fridge and washing machine).

Our main markets are Euro area, Africa, the Middle East, America and Asia. We have passed CE, UL, CB, IMETRO, NOM, SASO, ENERGY STAR and ERP RATING certificates.

Quality Management
6 sigma implementation

Our Service
HVAC design, supply and installation of residential and central air-conditioning, heating, ventilation systems and split units.
Household appliances import and export

Control Units.
The whole unit has a 3-year warranty.
