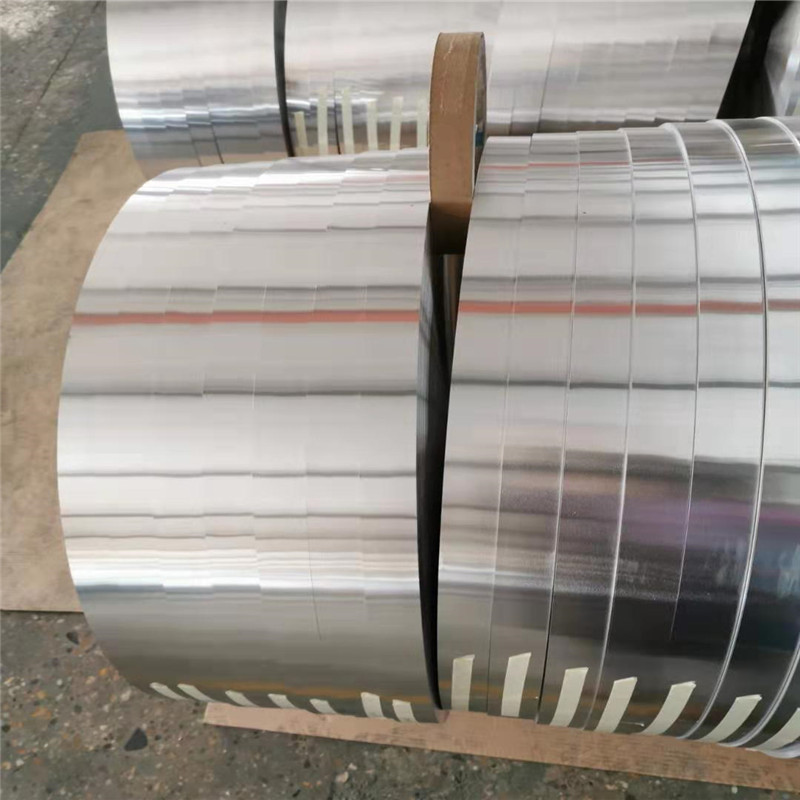

4343 Brazing Cladding Aluminum Foil Roll Condenser Thick Heavy Duty Foil Sheets

Name: 4343 Brazing Cladding Aluminum Foil Roll Condenser Thick Heavy Duty Foil Sheets
Brand: Trumony
Price: 1 USD

4343 Brazing Cladding Aluminum Foil Roll Condenser Thick Heavy Duty Foil Sheets

Categories	Aluminium Foil Roll
Brand Name:	Trumony
Model Number:	TR-FR180
Certification:	TS16949 , ISO14001 and OHSAS 18001
Place of Origin:	China
MOQ:	5 metric tons
Price:	negotiation
Payment Terms:	T/T or LC
Supply Ability:	100,000 mt per year
Delivery Time:	30 working days after received your down payment

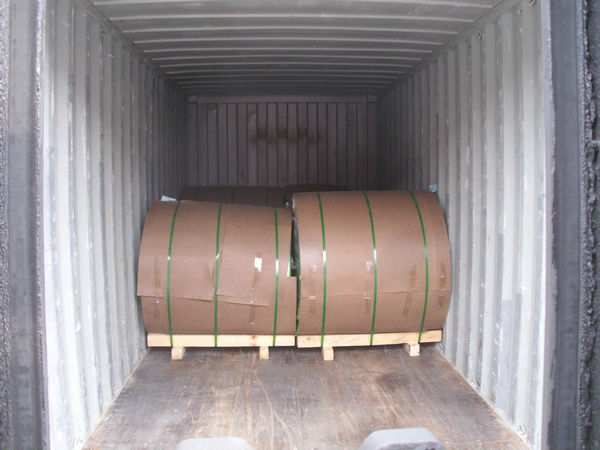

Packaging Details:	Standard export packaging
Core Alloy:	3003+1.5%Zn+Zr
Clad Alloy:	4343
Thickness:	0.127mm
Width:	254mm
I.D.:	305mm
O.D.:	≤1370mm
Packaging:	eye to wall
Temper:	H14

Contact Now

Add to Cart

Company Info.

Trumony Aluminum Limited

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

4343 Brazing Cladding Aluminum Foil Roll Condenser Thick Heavy Duty Foil Sheets

4343 / 3003+1.5%Zn / 4343 H14 0.127 x 254mm Brazing Cladding Aluminum Foil Roll Condenser Thick Heavy Duty Foil Sheets

1. Description of our production

Chemical composition of core material, cladding material about aluminum alloy and composite-material for welding heat exchanger

1) Core Material

Alloy	Si	Fe	Cu	Mn	Mg	Zn	Zr	Ti	code
3003	0.6	0.7	0.05-0.20	1.0-1.5	－	0.1	0.05	0.03	1
3003+1%Zn	0.6	0.7	0.05-0.20	1.0-1.5	－	0.5-1.50	0.05	0.05	2
3003+1.5%Zn	0.6	0.7	0.05-0.20	1.0-1.5	－	1.0-2.0	0.05	0.05	3
3003+1.5%Zn+Zr	0.5-1.0	0.7	0.05-0.20	1.0-1.6	－	1.0-2.0	0.05-0.2	-	4
3003+0.5%Cu	0.6	0.7	0.30-0.70	1.0-1.5	－	0.10	0.05	0.1	5
3005	0.6	0.7	0.20-0.40	1.0-1.5	0.20-0.60	0.25	－	0.01	6

2) Cladding Material

Alloy	Si	Fe	Cu	Mn	Mg	Zn	Zr	Ti	code
4343	6.8-8.2	0.8	0.25	0.1	－	0.2	－	0.05	1
4343+1%Zn	6.8-8.2	0.8	0.25	0.1	－	0.5-1.5	－	0.05	2
4045	9.0-11.0	0.8	0.3	0.05	－	0.2	－	0.2	3
4045+1%Zn	9.0-11.0	0.8	0.3	0.05	－	0.5-1.5	－	0.2	4
4004	9.0-10.5	0.8	0.25	0.1	1.0-2.0	0.2	－	0.2	5
7072	0.7		0.1	0.1	0.1	0.8-1.3	－	－	6
5005	0.3	0.7	0.2	0.2	0.5-1.1	0.5-1.0	－	0.03	7

3) Main mechanical of aluminum alloy and composite-material for welding heat exchanger

Alloy Code	temper	Tensile Strength Rm(MPa)	Yield Strength Rp_0.2(Mpa)	Extend Ratio A₅₀(%)
TR-010,TR-020,TR-030,TR-040,TR-050,TR-110,TR-310,TR-116,TR-316,TR-111,TR-313,TR-121,TR-131,TR-141,TR-150,TR-151,TR-156 Etc.	O	95-135*	≥35*	≥15*
	H14	140-185	≥125	≥1.5
	H24	140-185	≥125	≥3.0
	H16	185-225	≥160	≥1.0
	H18	≥185	-	≥0.5
TR-166 Etc.tube material	H24	185-235	≥150	≥8
TR-116,TR-316 Etc.tube material	H14	140-185	≥125	≥3
TR-116,TR-316 Etc.tube material	H24	140-185	≥125	≥8

Remark:“*”in the above file means the tensile strength will be 120-150Mpa,yield strength will be ≥45Mpa,and elongation will be ≥20% if the material of TR-050,TR-150,TR-151,TR-156 etc. with temper O contain Cu..

Additional: We can produce special specification according to customer’s request.

4) Produce capability

	Width(mm)	Thickness(mm)	Length(mm)	Inside Diameters(mm)
Sheet	500-1070	0.5-5.0	500-2500	-
Strip	12-1070	0.2-3.0	-	150,200,300,400,500
Foil	12-1070	0.05-0.2	-	150,200,300,400,500

Composite ratio

4-18%(per side)

Percent Clad(per side)	4-8%	＞ 8-18%
Cladding tolerance	±1.5%	±2.0%

2. Application:

1. Oil Cooler

2. Automobile Radiator

3. Automobile Heater Core

4. Condenser

5. Evaporator

3. Features

Our product line covers all kinds of alloyed material and specifications which is widely used in the automobile and construction machinery and equipment cooling systems, power station cooling system, micro-channel cooler and all kinds of both commercial and residential air-conditioners.
