Gangjack 1x6 Rj-45 8p8c JX8064D668ANL / LPJ66404AENL 10/100 Ethernet Jack

Gangjack 1x6 Rj-45 8p8c JX8064D668ANL / LPJ66404AENL 10/100 Ethernet Jack

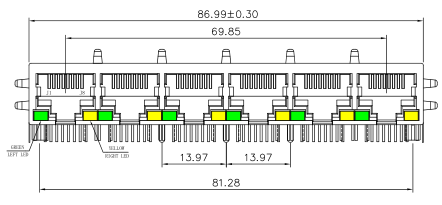

1. RJ45 1x6, Tab-DOWN 8-pin with internal magnetics Six Ports LPJ66404AENL
2. 10/100 Base-TX PHY Interface With Rj45 Magnetics JX8064D668ANL
3. Suitable for CAT 5 and 6 Fast Ethernet cable or better UTP
4. Internal magnetics: 100% electrically tested for Hipot and functionality
5. Meets IEEE 802.3 specification
6. 350 µH minimum OCL with 8mA bias current
7. High performance for maximum EMI suppression

Electrical Specification @25℃
1.Turns Ratio(±2%):
TX=1CT:1CT RX=1CT:1CT
2.OCL: 350uH Min
@100KHz,0.1V,8mA DC Bias
3.Insertion Loss:
1～100MHz:-1.0dB Max
4.Return Loss(dB Min):
1～30MHz:-16 30～60MHz:-12
60～80MHz:-10
5.Crosstalk(dB Min):
1～30MHz:-40 30～60MHz:-35
60～100MHz:-30
6.CMR(dB Min):
1～50MHz:-40 50～150MHz:-30
7.Hipot: 1500V AC 6S 1mA
8.Operating Temperature: -40℃～+85℃.
